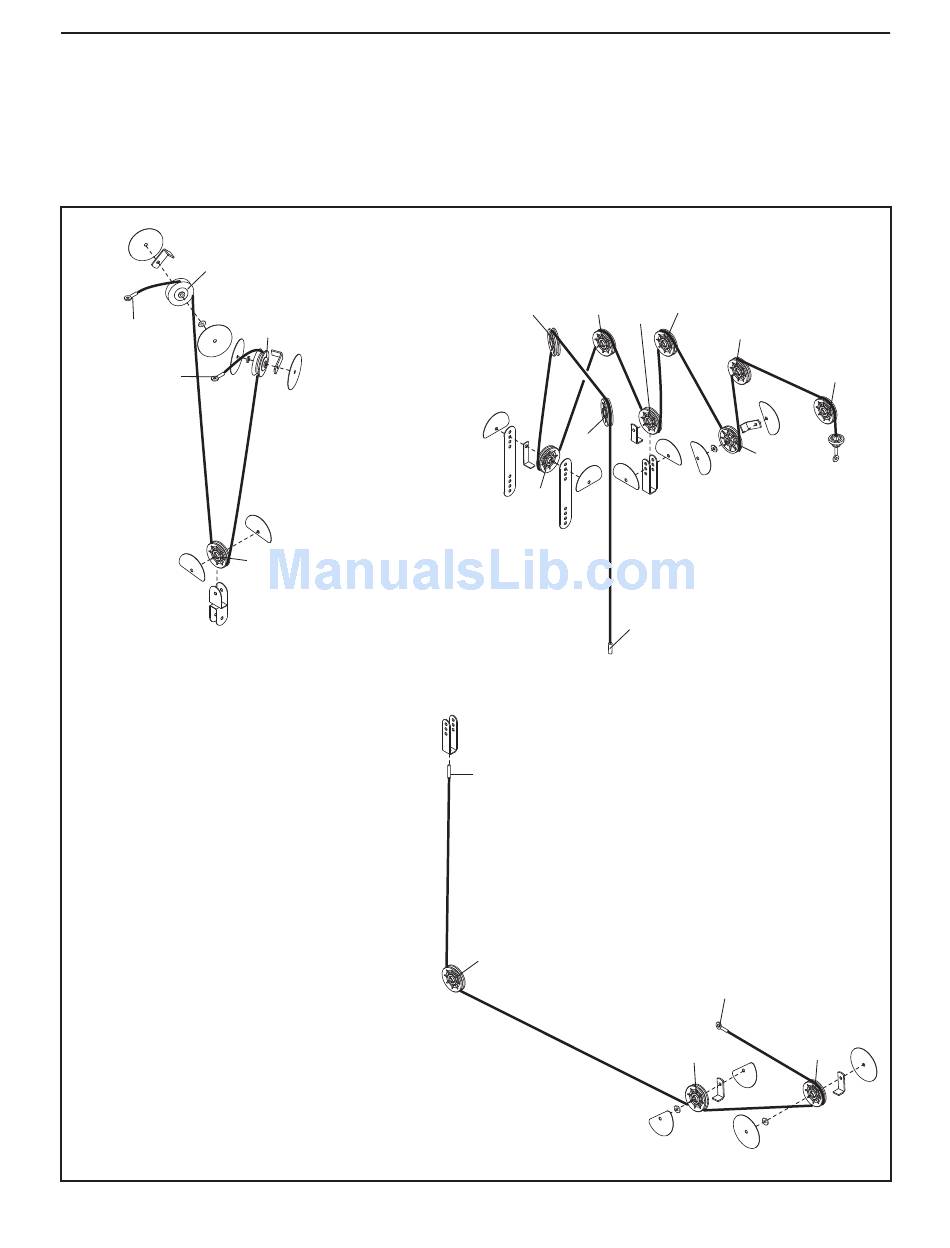

CABLE DIAGRAM

The cable diagram shows the proper routing of the cables (49, 50, 133, 51). Use the diagram to make sure that
the cable and the cable traps have been assembled correctly. If the cable has not been correctly routed, the
weight system will not function properly and damage may occur. The numbers show the correct route for the
cable. Make sure that the cable traps do not touch or bind the cable.
Lat Cable (49)
Length 211" / 536cm
4
4
6
8
5
5
2
2
1
1
Butterfly Cable (50)
9
Length 119" / 302cm
3
7
3
10
5
4
1
2
3
Press Cable (133)
Length 125" / 318cm
32
