Model No. 831.153932
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal (under seat)
· Assembly
· Adjustments
· Troubleshooting
· Part List and Drawing
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
WEIGHT SYSTEM EXERCISER
Patent Pending
Sears, Roebuck and Co., Hoffman Estates, IL 60179
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Weider Pro 4850 831.153932

Summary of Contents for Weider Pro 4850 831.153932

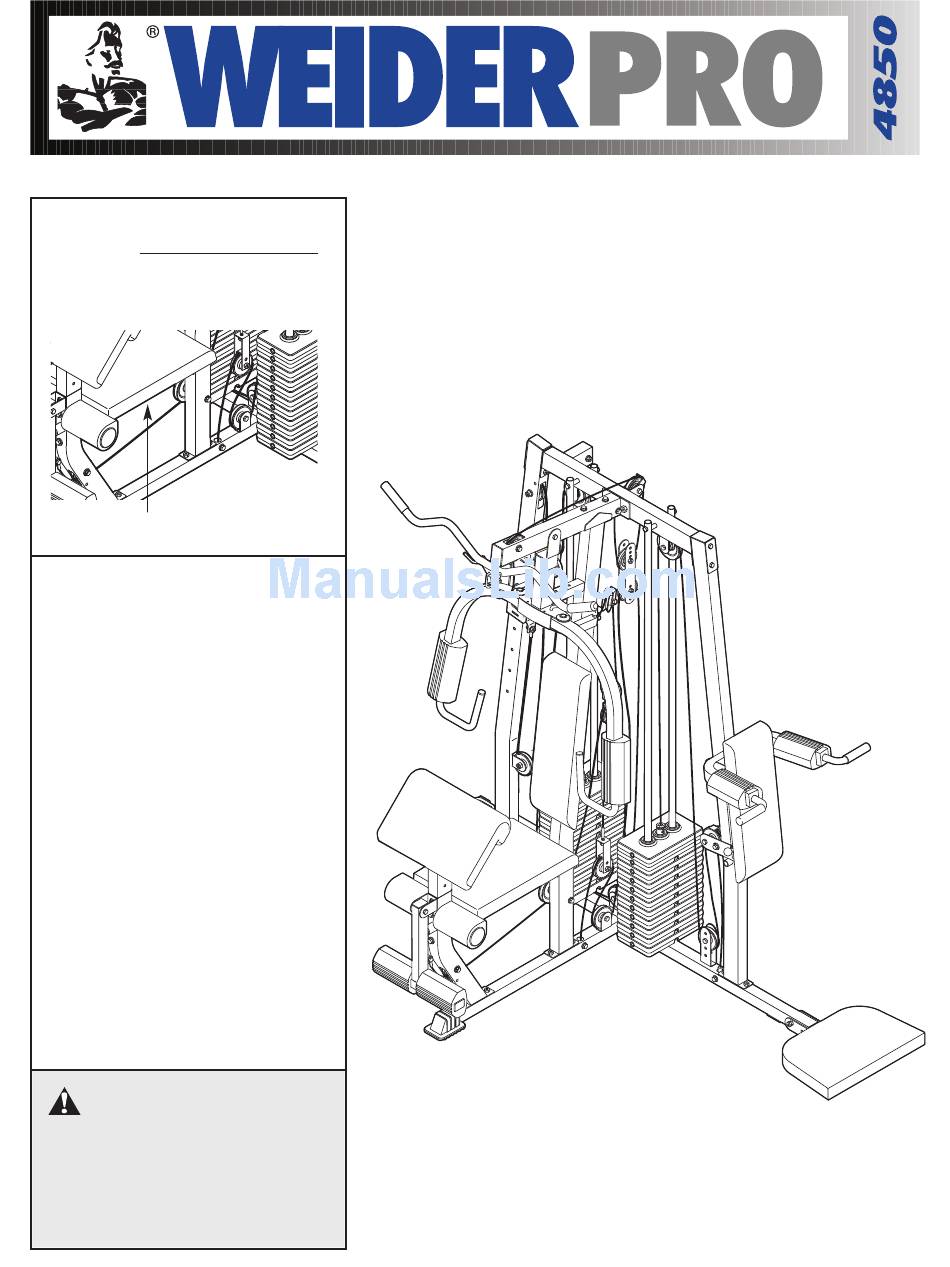

  • Page 1 Model No. 831.153932 Serial No. Write the serial number in the space above for reference. Serial Number Decal (under seat) · Assembly · Adjustments · Troubleshooting · Part List and Drawing CAUTION Read all precautions and instruc- tions in this manual before using this equipment.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..............3 BEFORE YOU BEGIN .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precautions before using the weight system. 1. Read all instructions in this manual and in the accompanying literature before using the weight system. 2. It is the responsibility of the owner to ensure that all users of the weight system are ade- quately informed of all precautions.

  • Page 4: Overview & Dimensions

    BEFORE YOU BEGIN Thank you for selecting the versatile WEIDER 4850 weight system. The WEIDER system offers an impressive array of weight stations designed to develop every major muscle group of the body. Whether your goal is to tone your body, build...

  • Page 5: Assembly

    ASSEMBLY Make Assembly Easier Everything in this manual is designed to ensure that the weight system can be assem- bled successfully by anyone. Before beginning assembly, make sure to read the information on this page. This brief introduction will save you much more time than it takes to read it.

  • Page 6: Frame Assembly

    FRAME ASSEMBLY Make sure that you understand all of the information on page 5 before you begin assembling the weight system. Locate and open the parts bags labeled “FRAME ASSEMBLY 1” and “FRAME ASSEMBLY 2.” See the inset drawing. Attach the Base Cap (24) to the Short Base (2) with two M4 x 20mm Self-tapping Screws (14) and two M4 Washer (98).
  • Page 7 4. Press a 38mm Square Inner Cap (67) into the square tube on the Butterfly Upright (3). Slide the Butterfly Upright (3) onto the two indicated M10 x 65mm Carriage Bolts (110) in the Short Base (2). Finger tighten an M10 Nylon Locknut (87) onto each Carriage Bolt.
  • Page 8 7. Press a 50mm x 75mm Inner Cap (58) into the top of the Squat Upright (4). Press two 25mm Round Outer Caps (120) onto the Upright. Slide the Squat Upright onto the two indicated M10 x 65mm Carriage Bolts (110) in the Long Base (106).
  • Page 9 9. Attach a Roller (39) between the indicated set of holes in the Squat Slider (38) with an M8 x 85mm Bolt (94) and an M8 Nylon Locknut (86) as shown. Do not overtighten the Locknut. Assemble the other three Rollers (39) to the Squat Slider (38) in the same manner.

  • Page 10: Arm Assembly

    12. Attach the Top Frame (6) between the Squat Upright (4) and the Swivel Upright (5) with four M10 x 95mm Bolts (92), the two Short Frame Plates (52), and two M10 Nylon Locknuts (87) as shown. Do not tighten the Bolts and Locknuts yet.

  • Page 11: Cable Assembly

    16. Press a 40mm x 50mm Inner Cap (21) into the Right Butterfly Arm (26). Wet the lower end of the Arm and a Long Pad (54) with soapy water. Slide the Long Pad onto the Arm. Attach the Press Handle (27) to the Right Butterfly Arm (26) with two M8 x 20mm Button Head Screws (51).
  • Page 12 19. Route the Swivel High Cable (74) through the Swivel Upright (5) and over a 115mm Pulley (119). Attach the Pulley inside the Upright with an M10 x 65mm Bolt (59), two M10 Washers (91), two 12.5 Spacers (89), and an M10 Nylon Locknut (87). Attach an M10 x 65mm Bolt (59), two M10 Washers (91), and an M10 Nylon Locknut (87) to the Swivel Upright (5).
  • Page 13 24. Remove the preattached 90mm Pulleys (78) from the Offset Double “U”-bracket (61). Wrap the Swivel Cable (17) around a 90mm Pulley (78). Attach the Pulley to the Offset Double “U”- bracket (61) with an M10 x 45mm Bolt (93) and an M10 Nylon Locknut (87).
  • Page 14 29. Wrap the Lat Cable (88) around a 90mm Pulley (78). Attach the Pulley and a Long Cable Trap (102) to the Top Frame (6) with an M10 x 50mm Bolt (100) and an M10 Nylon Locknut (87). Make sure the Cable Trap is turned to hold the Cable in the groove of the Pulley.
  • Page 15 34. Remove the preattached 90mm Pulleys (78) from the Double “U”-bracket (62). Wrap the Butterfly Cable (69) under a 90mm Pulley (78). Attach the Pulley to the Double “U”-bracket (62) with an M10 x 45mm Bolt (93) and an M10 Nylon Locknut (87).
  • Page 16 39. Route the Leg Lever Cable (75) under a 115mm Pulley (119). Attach the Pulley and a Large Cable Trap (113) to the indicated side of the Butterfly Upright (3) with an M10 x 95mm Bolt (92), two M10 Washers (91), and an M10 Nylon Locknut (87). Make sure that the Large Cable Trap is turned to hold the Cable in the groove of the Pulley.
  • Page 17 44. Wrap the Swivel Low Cable (72) over a 90mm Pulley (78). Attach the Pulley to the Offset Double “U”-bracket (61) with an M10 x 45mm Bolt (93) and an M10 Nylon Locknut (87). 45. Wrap the Swivel Low Cable (72) under a 90mm Pulley (78).
  • Page 18 49. Wrap the Swivel Low Cable (72) over a 90mm Pulley (78). Attach the Pulley and a Cable Trap (68) between the lower set of holes in the “U”-bracket (64) with an M10 x 50mm Bolt (100) and an M10 Nylon Locknut (87).

  • Page 19: Seat Assembly

    53. Wrap the Squat Cable (73) under a 90mm Pulley (78). Attach the Pulley and a Cable Trap to the sec- ond set of holes from the top in the indicated brack- et on the Long Base (106) with an M10 x 50mm Bolt (100) and an M10 Nylon Locknut (87).
  • Page 20 57. Attach the Seat (16) to the Seat Frame (8) with two M6 x 16mm Screws (114), an M6 x 65mm Screw (99), and an M6 Washer (97). 58. Attach the Butterfly Backrest (15) to the Butterfly Upright (3) with four M6 x 16mm Screws (114). 59.
  • Page 21 61. Turn the Squat Backrest (35) so that the four screw holes are closer to the bottom of the Squat Backrest than the top. Attach the Squat Backrest to the Squat Bracket (37) with four M6 x 16mm Screws (114). Turn the Adjustment Knob (115) counterclockwise several times to loosen it.

  • Page 22: Adjustments

    ADJUSTMENTS The instructions below describe how each part of the weight system can be adjusted. Refer to the exercise guide accompanying this manual to see how the weight system should be set up for various exercises. IMPOR- TANT: When attaching the lat bar, row bar, or handle, make sure that the attachments are in the correct starting position for the exercise to be performed.
  • Page 23 ADJUSTING THE SQUAT ARM OR SWIVEL CARRIAGE To adjust the height of the Squat Arm (32), first turn the Adjustment Knob (115) on the Squat Bracket (37) counterclockwise several turns to loosen it. Next, pull the Handle and slide the Squat Bracket up or down to the desired position.

  • Page 24: Weight Resistance Chart

    WEIGHT RESISTANCE CHART The chart below shows the approximate weight resistance at each weight station. “Top” refers to the 10-pound top weight. The other numbers refer to the 10-pound weight plates. The butterfly arm resistance listed is the resistance for each butterfly arm. Note: The actual resistance at each weight station may vary due to differ- ences in individual weight plates as well as friction between the cables, pulleys, and weight guides.

  • Page 25: Troubleshooting

    TROUBLESHOOTING Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immedi- ately. The weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents. TIGHTENING THE CABLES Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used.

  • Page 26: Cable Diagrams

    CABLE DIAGRAMS The cable identification chart below shows the ends of each cable and the lengths of the cables. The cable dia- grams on this page and the following page show the proper routing of the cables. The numbers in the diagrams show the routes of the cables.
  • Page 27 Leg Lever Cable (75) Swivel Cable (17) Swivel Low Cable (72)
  • Page 28 PART IDENTIFICATION CHART—Model No. 831.153932 50mm Washer (1) M10 Washer (91) M8 Washer (90) M6 Washer (97) M4 Washer (98) M12 Nut (118) M10 Nylon Locknut (87) M8 Nylon Locknut (86) R0404A 12.5mm Spacer (89) 19mm Spacer (101) Cable Clip (83) 115mm Pulley (119) (Not shown to scale) "V"-pulley (55)
  • Page 29 M10 x 65mm Bolt (59) M10 x 60mm Bolt (18) M10 x 50mm Bolt (100) M10 x 45mm Bolt (93) M10 x 20mm Bolt (13) M8 x 25mm Shoulder Bolt (103) M8 x 20mm Button Head Screw (51) M4 x 20mm Self- tapping Screw (14) M6 x 16mm Screw (114) M6 x 65mm Bolt (99)
  • Page 30 40mm x 50mm Inner Cap (21) 50mm x 75mm Inner Cap (58) 38mm Square Inner Cap (67) 50mm x 70mm Inner Cap (34) 25mm Round Inner Cap (29) 50mm Square Inner Cap (105) 25mm Round Outer Cap (120)
  • Page 31 PART LIST—Model No. 831.153932 No. Qty. Description 50mm Washer Short Base Butterfly Upright Squat Upright Swivel Upright Top Frame Butterfly Top Frame Seat Frame Seat Upright Leg Lever Curl Pad Curl Post M10 x 20mm Bolt M4 x 20mm Self-tap- ping Screw Butterfly Backrest Seat...
  • Page 32 EXPLODED DRAWING—Model No. 831.153932 R0404A...

  • Page 33: Full 90 Day Warranty

    FULL 90 DAY WARRANTY For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this Sears Weight System Exerciser, contact the nearest Sears Service Center throughout the United States and Sears will repair or replace the Weight System Exerciser, free of charge. This warranty does not apply when the Weight System Exerciser is used commercially or for rental pur- poses.
