Weider Pro 4950 831.14623.0 User Manual page 21

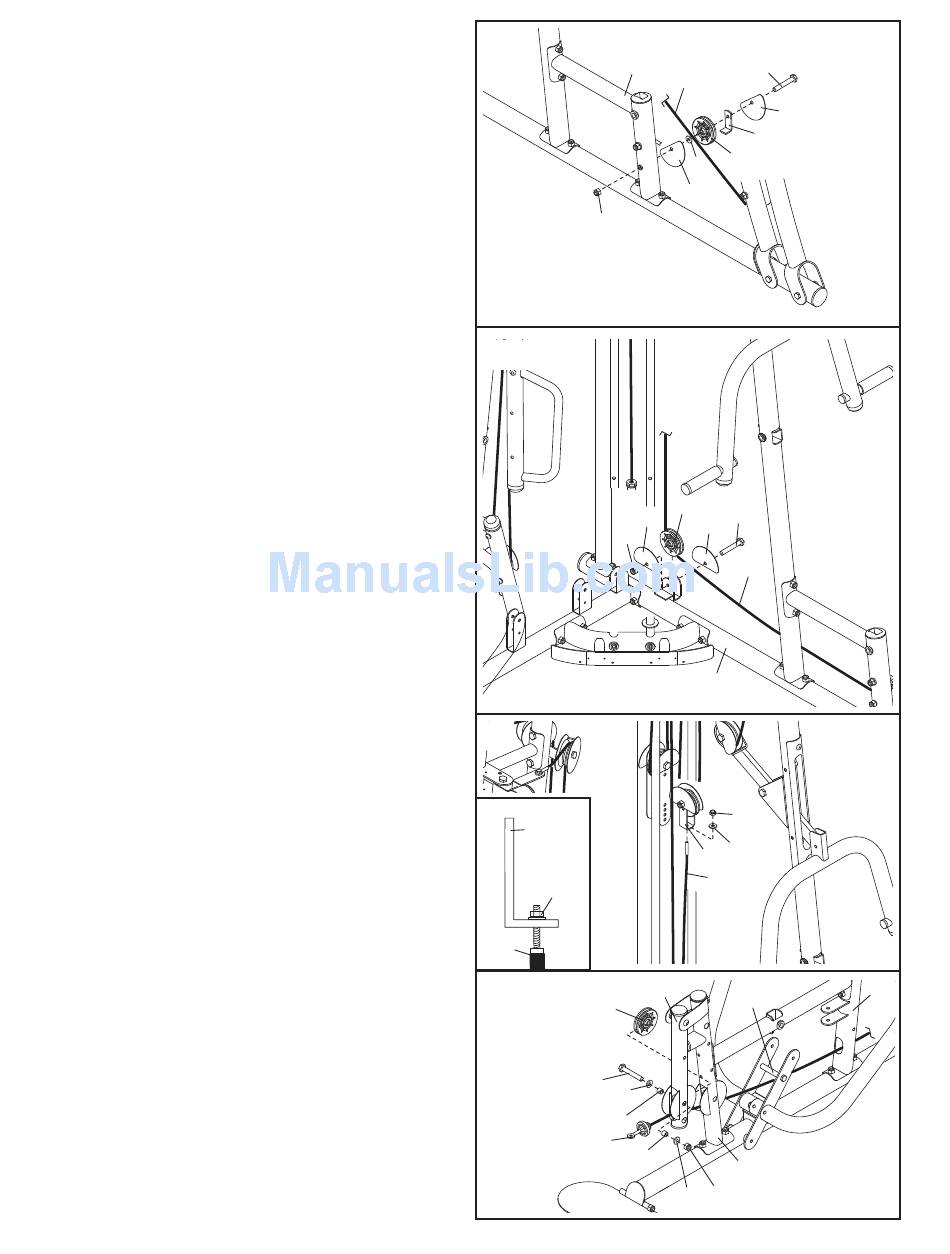

42. Route the Press Cable (133) under a 90mm
Pulley (48). Attach the Pulley and a Cable Trap
(56) to the Left Frame (122) with an M10 x
116mm Bolt (107), two Half Guards (55), an
M10 Washer (80), and an M10 Nylon Locknut
(77). Make sure the Cable Trap and the Half
Guards are oriented as shown.
43. Route the Press Cable (133) under a 90mm
Pulley (48). Attach the Pulley to the Left Base
(119) with an M10 x 50mm Bolt (97), two Half
Guards (55), and an M10 Nylon Locknut (77).
Make sure the Half Guards are oriented as
shown.
44. Attach the Press Cable (133) to the "U"-bracket
(151) with an M8 Washer (103) and an M8
Nylon Locknut (78). See the inset drawing. Do
not completely tighten the Nylon Locknut; it
should be tightened so that only two
threads of the Cable show past the Nylon
Locknut.
45. Identify the Leg Lever Cable (51). Route the
Cable through the Leg Lever (12) and the Front
Leg (10), under the indicated bar, and through
the Right Upright (2).
Insert a 90mm Pulley (48) into the Leg Lever
(12) from the indicated direction. Attach the
Pulley to the Leg Lever with an M10 x 68mm
Bolt (85), two M10 Washers (80), two 13mm
Steel Spacers (109), and an M10 Nylon
Locknut (77).
42
122
77
43
55
77
44
151
78
133
45
48
85 80
109
51
109
21
107
133
55
56
48
80
55
48
97
55
133
119
78
103
151
133
12
Bar
10
77
80
2
