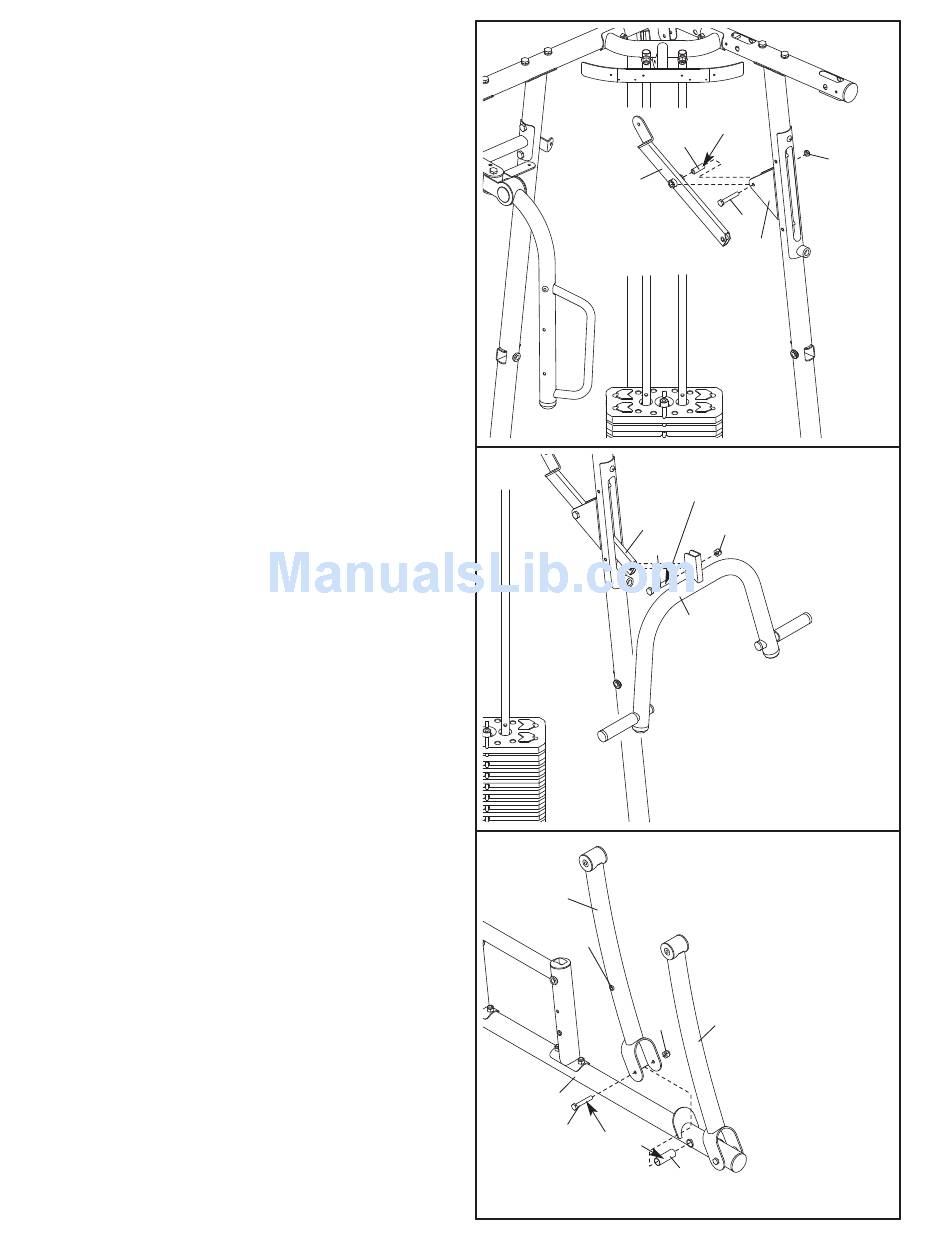

18. Apply grease to the 44mm Bushing (136) and
an M10 x 68mm Bolt (85). Then, insert the
Bushing into the Military Press Frame (127).
Attach the Military Press Frame inside the Left
Upright (120) with the Bolt (85) and an M10
Nylon Locknut (77). Do not overtighten the
Nylon Locknut; the Military Press Frame
must pivot freely.
19. Apply grease to an M10 x 40mm Bolt (142).
Attach the Military Press Arm (128) to the
Military Press Frame (127) with the Bolt and an
M10 Nylon Locknut (77). Do not overtighten
the Nylon Locknut; the Military Press Arm
must pivot freely.
20. Apply grease to a 77mm Bushing (138) and to
an M10 x 100mm Bolt (140). Attach the Leg
Press Frame (123) to the Left Base (119) with
the Bushing, the Bolt, and an M10 Nylon
Locknut (77). Make sure the bushing is on
the indicated side.
Repeat this step with the Front Leg Press
Frame (132). Do not overtighten the Nylon
Locknuts (77); the Leg Press Frames must
pivot freely.
