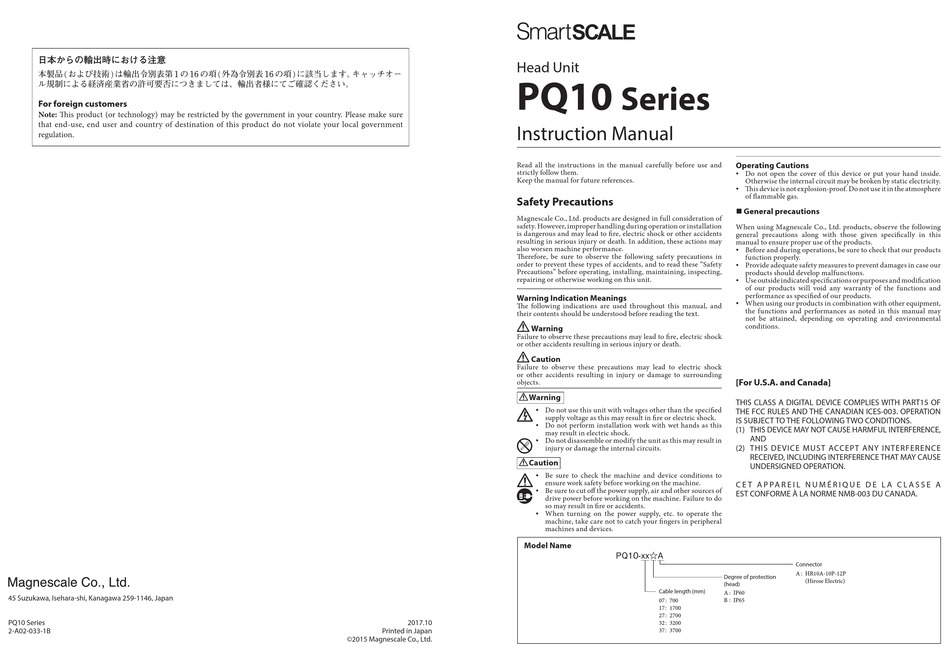

Magnescale SmartSCALE PQ10 Series Instruction Manual

For foreign customers
Note: Th is product (or technology) may be restricted by the government in your country. Please make sure
that end-use, end user and country of destination of this product do not violate your local government
regulation.
45 Suzukawa, Isehara-shi, Kanagawa 259-1146, Japan
PQ10 Series
2-A02-033-1B
Head Unit
PQ10
Instruction Manual
Read all the instructions in the manual carefully before use and
strictly follow them.
Keep the manual for future references.
Safety Precautions
Magnescale Co., Ltd. products are designed in full consideration of
safety. However, improper handling during operation or installation
is dangerous and may lead to fi re, electric shock or other accidents
resulting in serious injury or death. In addition, these actions may
also worsen machine performance.
Th erefore, be sure to observe the following safety precautions in
order to prevent these types of accidents, and to read these "Safety
Precautions" before operating, installing, maintaining, inspecting,
repairing or otherwise working on this unit.
Warning Indication Meanings
Th e following indications are used throughout this manual, and
their contents should be understood before reading the text.
Failure to observe these precautions may lead to fi re, electric shock
or other accidents resulting in serious injury or death.
Failure to observe these precautions may lead to electric shock
or other accidents resulting in injury or damage to surrounding
objects.
Model Name
2017.10
Printed in Japan
©2015 Magnescale Co., Ltd.
Series
Warning
Caution
Warning
• Do not use this unit with voltages other than the specifi ed
supply voltage as this may result in fi re or electric shock.
• Do not perform installation work with wet hands as this
may result in electric shock.
• Do not disassemble or modify the unit as this may result in
injury or damage the internal circuits.
Caution
• Be sure to check the machine and device conditions to
ensure work safety before working on the machine.
• Be sure to cut off the power supply, air and other sources of
drive power before working on the machine. Failure to do
so may result in fi re or accidents.
• When turning on the power supply, etc. to operate the
machine, take care not to catch your fi ngers in peripheral
machines and devices.
Cable length (mm)
07 : 700
17 : 1700
27 : 2700
32 : 3200
37 : 3700
Operating Cautions
• Do not open the cover of this device or put your hand inside.
Otherwise the internal circuit may be broken by static electricity.
• Th is device is not explosion-proof. Do not use it in the atmosphere
of fl ammable gas.
 General precautions
When using Magnescale Co., Ltd. products, observe the following
general precautions along with those given specifi cally in this
manual to ensure proper use of the products.
• Before and during operations, be sure to check that our products
function properly.
• Provide adequate safety measures to prevent damages in case our
products should develop malfunctions.
• Use outside indicated specifi cations or purposes and modifi cation
of our products will void any warranty of the functions and
performance as specifi ed of our products.
• When using our products in combination with other equipment,
the functions and performances as noted in this manual may
not be attained, depending on operating and environmental
conditions.
[For U.S.A. and Canada]
THIS CLASS A DIGITAL DEVICE COMPLIES WITH PART15 OF
THE FCC RULES AND THE CANADIAN ICES-003. OPERATION
IS SUBJECT TO THE FOLLOWING TWO CONDITIONS.
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,
AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE
UNDERSIGNED OPERATION.
C E T A P PA R E I L N U M É R I Q U E D E L A C L A S S E A
EST CONFORME À LA NORME NMB-003 DU CANADA.
Connector
A : HR10A-10P-12P
Degree of protection
(Hirose Electric)
(head)
A : IP60
B : IP65
