MEMSHIELD 4 INSTALLATION INSTRUCTIONS FOR
EM4PBLSC LIVE SIDE CONNECTION (up to 125A)
Instruction leaflet LT1226 (02/19)
IMPORTANT NOTES
1. This product should be installed, commissioned and maintained by or under the supervision of a competent electrician in
accordance with current electrical engineering Codes of Practice, Requirements for the Electrical Installations (IET Wiring
Regulations BS7671), Construction (Design and Management) Regulations, HSG150 - Health and Safety in Construction, Statutory
requirements and any Specific instruction issued by the Company.
2. After completing the installation and testing of this product it is essential that this leaflet is drawn to the attention of the
person responsible for its future operation and maintenance, and is at all times available for ready reference.
3. These notes assume throughout that the product is disconnected from the supply. It is essential that this is done before any
work is carried out.
4. These Panelboards are only designed for use with Eaton MCCBs. Failure to comply will result in invalid warranty and
certification.
Items Supplied in Live Side Connection Kit
M8 x 16mm Hex Head Bolt DIN934 Grade 8.8
M8 CONICAL SPRINGWASHER DIN6796
Copper Connectors - 25 x 3mm
Caution Label
Items required for Live Side Connection
Double Insulated Cable – length and rating as required
M8 Cable Lugs - rating as required
Cable Ferrule - rating as required
Exel 2 – TPN Fuse Switch Disconnector – Rating as required
M12 Incomer Cable lugs – See Incomer type for Lugs required (Page 2).

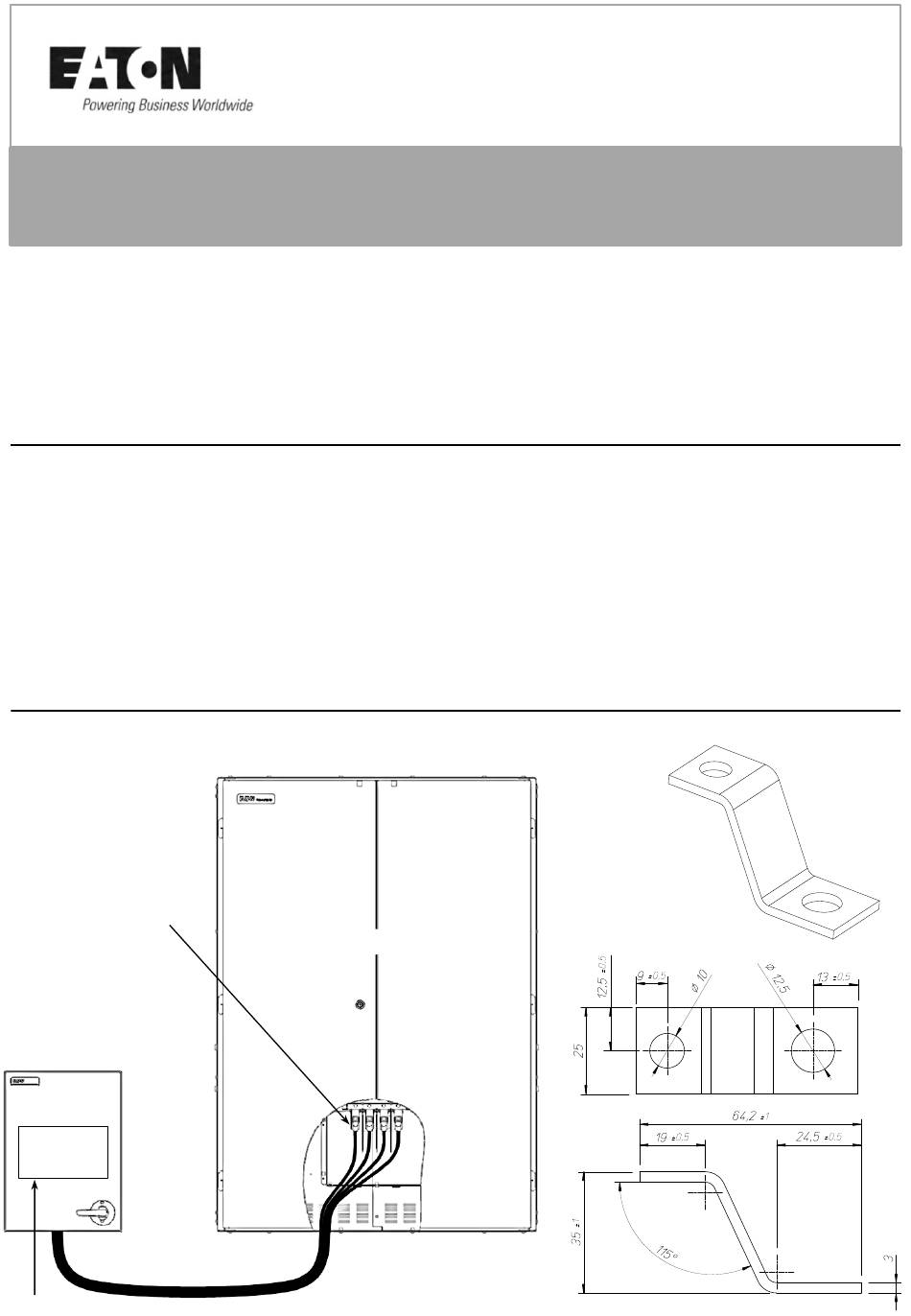

LIVE SIDE CONNECTION - GENERAL ARRAGEMENT - UP TO 125A
A live side connection, off the incoming MCCB, can be fitted using the supplied copper connectors.
Double insulated cable is used to feed an Exel 2 TPN Fuse Switch disconnector enclosure.
Live side Connection
Exel 2 TPN Fuse Switch
Disconnector.
Padlockable in ON or
Off position.
CAUTION
FED FROM LIVE SIDE
OF PANELBOARD
INCOMER
Double Insulated Cable
Caution Label - fitted on the Exel enclosure
4 Qty
4 Qty
4 Qty
1 Qty
4 Qty
– To feed the Exel 2
4 Qty
– To connect the live side connector
4 Qty
– To connect the cable to the Exel 2.
1 Qty
– Eaton list numbers -
Panelboard
20A TPN
- 15KXTNC2F
32A TPN
- 30KXTNC2F
63A TPN
- 60KXTNC2F
100A TPN
- 100KXTNC2F
125A TPN
- 125KXTNC2F
live side copper
connector
