Icom OPC-2274 Instruction Manual page 2

REPLACING THE CONNECTOR
If the cable becomes damaged, replace the connector(s). Make wire connections as described below.
• Spare connectors* are supplied with the VE-PG3.
1
* 1 Manufacturer: DDK. Name: 232D-04S1B-DA5-FA (Equivalent to the OPC-2274 connector.)
The connector has two parts; a black base and a clear insert. DO NOT lock the connector parts before inserting all wires.
1
Inser t the wires into the holes
according to the assigned pin
numbers.
Connector Connector Connector
(Supplied with (Supplied with (Supplied with
the VE-PG3) the VE-PG3) the VE-PG3)
The wires for each hole are
assigned by color. See the
illustration below.

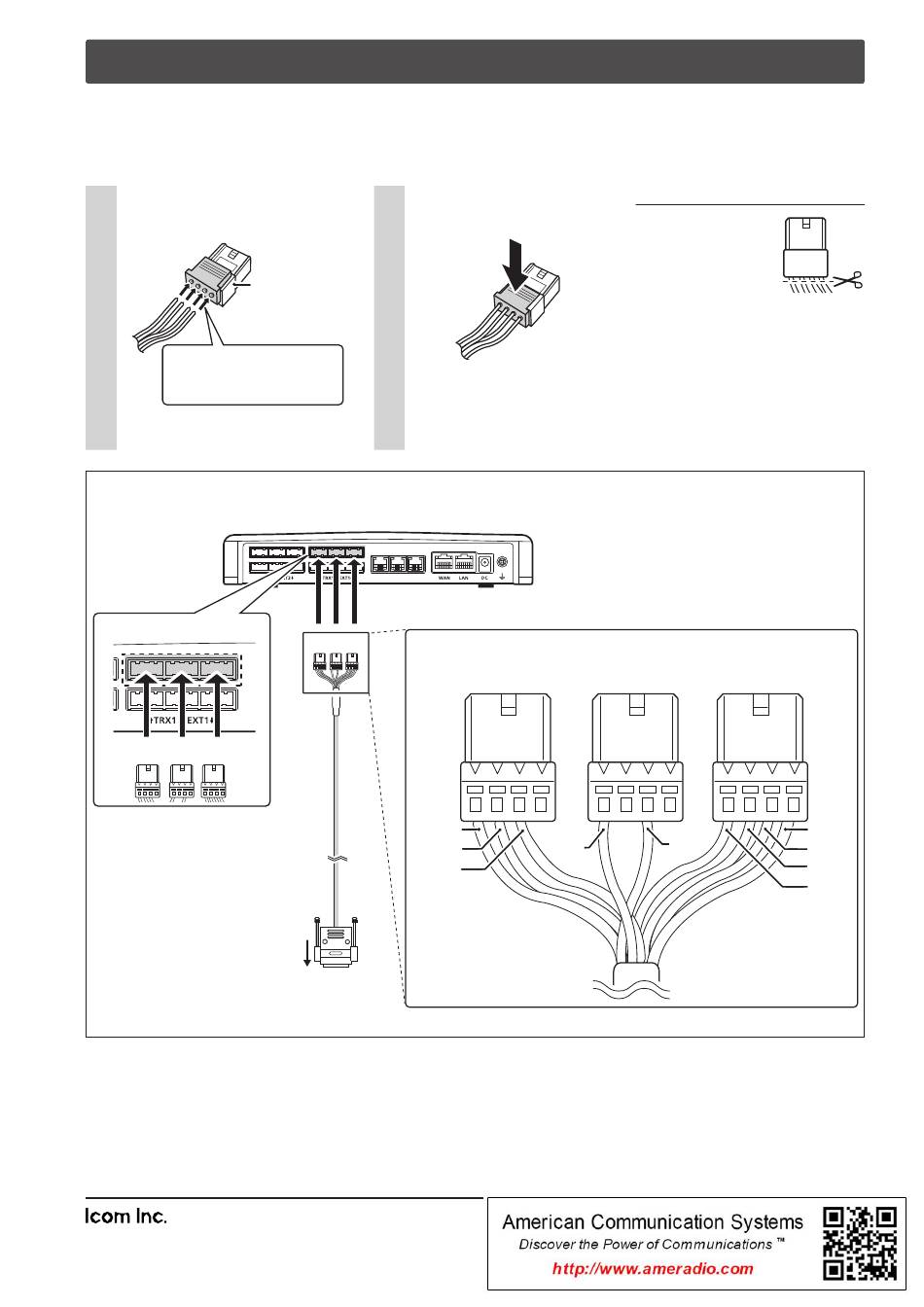

OPC-2274 connection and wires assignment
• Turn OFF the VE-PG3 and the repeater before connecting or disconnecting the OPC-2274.
VE-PG3 (Rear view) VE-PG3 (Rear view) VE-PG3 (Rear view)
To [TRX1] (Upper slots)
A B C
To the repeater
• Follow the example to correctly connect the repeater to [TRX1] on the VE-PG3.
