Manual Ground Trip
Block (if furnished)
Clearing a Manually Applied Hot Line Tag
Follow these steps to clear a manually applied Hot Line Tag mode:
STEP 1. Remove the tag or lock on the HOT LINE TAG lever, if applicable.
STEP 2. Insert the hookstick into the ring on the HOT LINE TAG lever and push up on
the lever.
STEP 3. Observe the amber HOT LINE TAG indicator. When the Hot Line Tag mode is
cleared, the HOT LINE TAG indicator will be off.
The Ground Trip Block mode can be set locally with the GROUND TRIP BLOCK lever
or remotely using a SCADA or IntelliLink software command. The Ground Trip Block
mode can only be removed by the method used to set it and (unlike the Hot Line Tag
mode) the manual lever cannot remove the Ground Trip Block mode set by SCADA or
IntelliLink software.
To locally apply the Ground Trip Block mode, pull down on the GROUND TRIP
BLOCK lever. It can be tagged using conventional procedures. To remove a locally applied
Ground Trip Block mode, push up on the GROUND TRIP BLOCK lever. When the Ground
Trip Block is either set or removed, the STATUS indicator will light at 100% brightness for
10 seconds to indicate the GROUND TRIP BLOCK lever command has been received.
See Figure 9 on page 13.

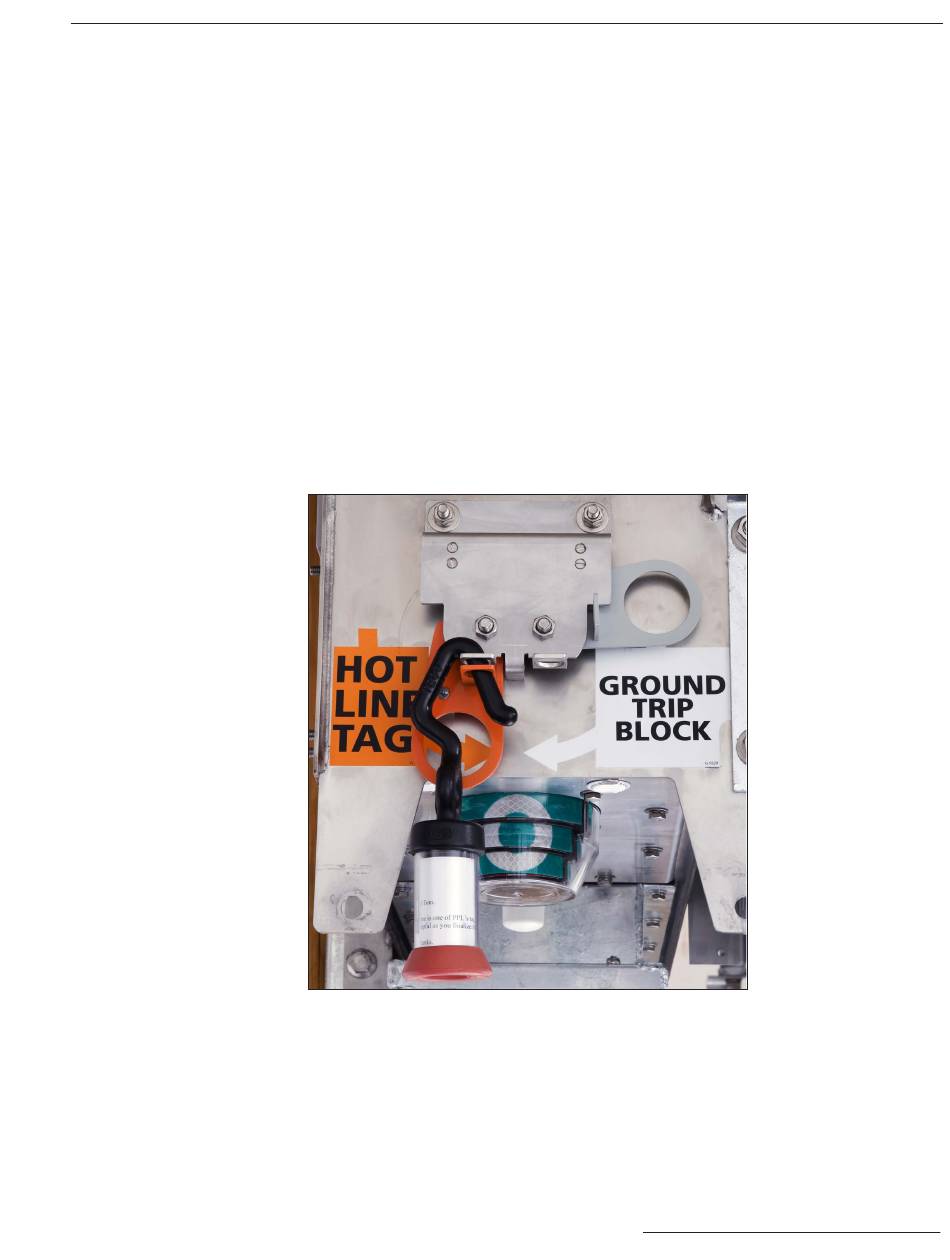

Figure 8. The Hot Line Tag mode manually applied and "tagged."
