d) Tool changing

CUSTOM MENU
The screen
〉 TOOL CHANGING
displays
〉 TOOL COMING UP
only one line
at once. 〉 CUSTOM : mm_
〉 CUSTOM : inch_
1 :FRENCH
F1 :RETURN
The cursor is positioned on TOOL CHANGING, validate by pressing on :
Nearly whole the tool is coming down, you can change the tool :
Press on the enter key
NOTE : The tool has to be removed when is into low position only

e) Tool coming up

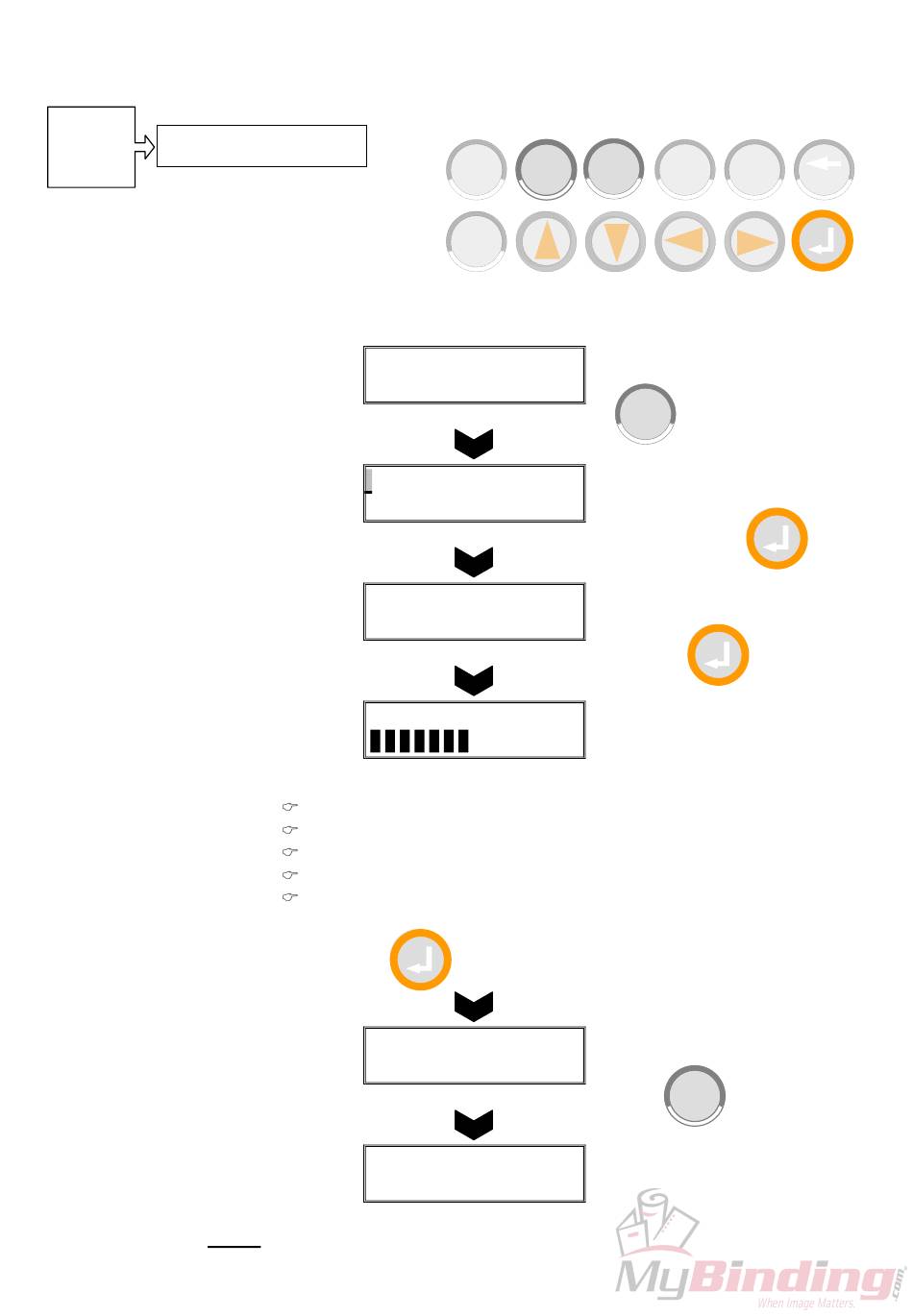

PROCEDURE
READY_ _:297.0X210.0MM
Go into the Custom menu by pressing on :
〉 TOOL CHANGING
〉 TOOL COMING UP
* COMING DOWN_ _ _
• • • • • • • •
To activate the coming down, validate by pressing on :
I COMING DOWN_ _ _
Open the tool door
Remove the 3 screws on the tool base
Change the tool
Tighten the 3 screws by using a flat key
Close the tool door
I COMING DOWN_ _ _
Return in the main menu by pressing twice on :
READY_ _:297.0X210.0MM
