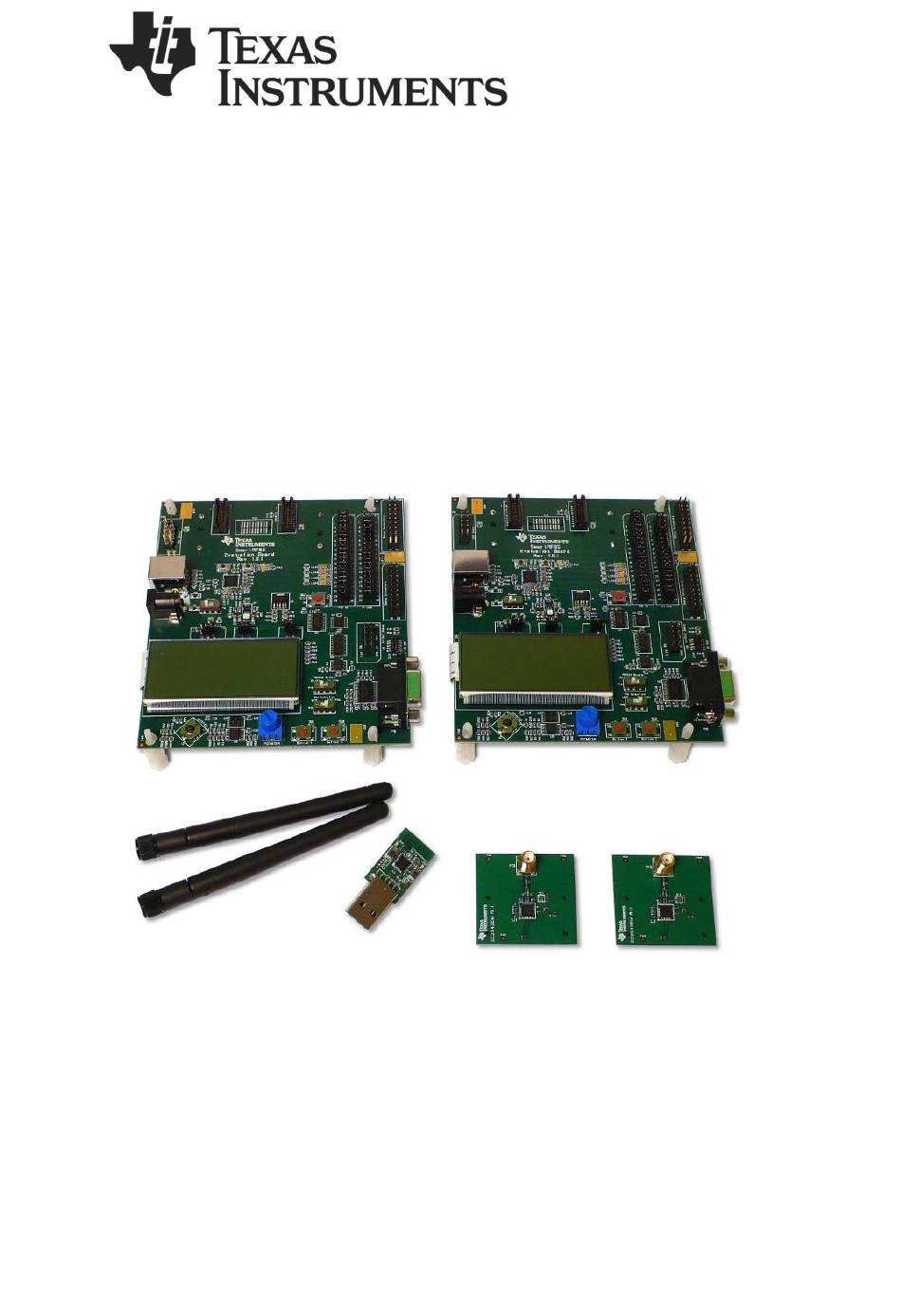

CC2543-CC2544 Development
Kit User's Guide
swru318

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC2543 and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments CC2543

Summary of Contents for Texas Instruments CC2543

  • Page 1: Cc2543-Cc2544 Development Kit User's Guide

    CC2543-CC2544 Development Kit User’s Guide swru318...

  • Page 2: Table Of Contents

    Table of contents CC2543-CC2544 DEVELOPMENT KIT USER’S GUIDE ................1 INTRODUCTION ............................. 3 ABOUT THIS MANUAL ......................... 3 ACRONYMS ............................. 4 DEVELOPMENT KIT CONTENTS ...................... 5 GETTING STARTED ..........................7 ........................7 ETTING UP THE HARDWARE PER T CC2543EM CC2544D .....

  • Page 3: Introduction

    Appendix A gives a detailed description of how to set up the software development environment for the CC2543 and CC2544. The CC2543-CC2544DK Quick Start Guide [4] has a short tutorial on how to get started with the kit. The PC tools SmartRF Studio and SmartRF Flash Programmer have their own user manuals.

  • Page 4: Acronyms

    Kilo Byte (1024 byte) Liquid Crystal Display Light Emitting Diode LPRF Low Power RF Micro Controller Not connected Packet Error Rate Radio Frequency Receive System on Chip Texas Instruments Transmit UART Universal Asynchronous Receive Transmit Universal Serial Bus Mega Hertz 4/31...

  • Page 5: Development Kit Contents

    CC2543 and CC2544 RF performance and offers a complete platform for development of advanced prototype RF systems. Evaluate the CC2543 and the CC2544 right out of the box. The kit can be used for range testing using the pre-programmed PER tester running on the two devices.
  • Page 6 swru318 SmartRF05EB The SmartRF05EB (evaluation board) is the main board in the kit with a wide range of user interfaces: 3x16 character serial LCD Full speed USB 2.0 interface UART LEDs Serial Flash Potentiometer Joystick Buttons The EB is the platform for the evaluation modules (EM) and can be connected to the PC via USB to control the EM.

  • Page 7: Getting Started

    CC2543 microcontroller. The EB also contains a separate USB controller, which is used as a bridge between the PC and the CC2543 and the CC2544 for programming the flash of these devices. It is also used for debugging the software running on the CC2543 and CC2544.

  • Page 8: Running The Preprogrammed Per Test On The Cc2543Em And The Cc2544Dongle

    By using the PER test on the CC2543 and the CC2544, it is possible to perform practical range testing. Place the transmitter at a fixed location and place the receiver at a given distance from the transmitter.

  • Page 9: Program Flow

    CC2543EM mounted on the SmartRF05EB. To get a quick walkthrough on how to set up the PER test confer the “CC2543-CC2544DK Quick Start Guide” [4]. A printed copy of this is included in the kit. The source code for the PER test can be downloaded from the kit product page [5].
  • Page 10 swru318 result screen which contains the number of good packets received, number of packets with CRC error received and the number of lost packets. If the user pushes button1 (S1) a choice between restarting the same test again or to set up a new test is presented. 5.2.2.3 Flow Chart In Figure 2 - Simplified Flow Chart for the CC254x PER Test a simplified flow chart describing the...

  • Page 11: Set Up The Cc254X Per Test

    CC2544Dongle to the SmartRF05EB. SmartRF Studio lets you explore the radio on the CC2543/44, as it gives you full overview and access to the radio registers. The tool has a control interface for running basic radio performance tests from the PC.
  • Page 12 Double click on the highlighted CC2543 or CC2544 device icon and a new window will appear. We will use the CC2543 in this guide. Figure 4 - CC2543 control panel in SmartRF Studio...

  • Page 13: Setting Up The Software Development Environment

    Figure 4 shows the main control panel for the CC2543. It lets you perform a number of operations: Run TX Test modes for testing of RF output power and spectrum; e.g. by connecting a spectrum analyser or a power meter to the CC2543EM SMA connector to perform RF measurements.

  • Page 14: Rf Testing

    TX Parameter Testing Basics To investigate the TX performance of the CC2543 and the CC2544, you can either use a Spectrum Analyzer or an RF Power Meter. Use the “Continuous TX” test mode in SmartRF Studio to set up the device to transmit a signal at the desired frequency.

  • Page 15: Rx Parameter Testing Basics

    RX Parameter Testing Basics To investigate the RX performance of the CC2543 or CC2544, you can use a signal generator or “Packet TX” in SmartRF Studio (with another EB+EM) to generate the packets to receive. The receiver can be configured by using the “Packet RX” test feature in SmartRF Studio.

  • Page 16: Cc2543Em

    SMA connector for the antenna or any other RF instrument connection and general IO headers/connectors. The table below shows the pin-out from the CC2543 to the two connectors on the backside of the evaluation module.

  • Page 17: Cc2544 Usb Dongle

    swru318 CC2544 USB Dongle LED2 Button S2 Meandred Inverted F-antenna CC2544 Right IO test holes LED1 Button S1 Debug connector (underneath = bottom layer) Left IO test holes Figure 7 - CC2544 USB Dongle The CC2544 USB dongle that is included in the kit comes preprogrammed such that it can be used as a MASTER device in the PER test.
  • Page 18 swru318 Figure 8 - CC2544 USB Dongle connected to SmartRF05EB The debug connector on the CC2544 USB Dongle matches the debug connector on the SmartRF05EB (and the CC Debugger). Note that, by default, the CC2544 dongle is not powered through the debug connector, so an external power source must be used while programming. The easiest solution is to connect it to a USB port on the PC.

  • Page 19: Smartrf05 Evaluation Board

    swru318 SmartRF05 Evaluation Board The SmartRF05 Evaluation Board is thoroughly described in the SmartRF05EB User’s Guide [8]. That document will describe the hardware features in detail and provide the schematics for the board. 19/31...

  • Page 20: Frequently Asked Questions

    The drivers for the evaluation board are normally located in the directory C:\Program Files (x86)\Texas Instruments\SmartRF Tools\Drivers, where C:\Program Files (x86)\Texas Instruments\SmartRF Tools\ is the default root installation directory for SmartRF Studio. The path may be different if you have chosen a different installation directory for SmartRF Studio.
  • Page 21 swru318 If the above fails, select “Let me pick from a list of device drivers on my computer.” A new window will open, asking for a location of where drivers can be found. Locate the SmartRF05EB file and select that driver for installation. Finally, verify that the device is associated with the correct driver by opening the Device Manager on you PC.
  • Page 22 Can I use another compiler than IAR to develop software for CC2543/44? Yes, there are several tools available that can be used for CC2543 and CC2544. Any 8051 compiler (e.g. Keil, GCC, and SDCC) can, in theory, be used. Note that these tools may have limited debugging support for CC2543 and CC2544.

  • Page 23: References

    [4] CC2543-CC2544DK Quick Start Guide http://www.ti.com/lit/swru315 [5] CC254x PER Test Software http://www.ti.com/litv/zip/swrc251 [6] Texas Instruments Support http://support.ti.com [7] Texas Instruments Low Power RF Online Community http://www.ti.com/lprf-forum [8] SmartRF05EB User’s Guide http://www.ti.com/lit/swru210 [9] SmartRF Studio http://www.ti.com/smartrfstudio [10] DN002 -- Practical Sensitivity Testing http://www.ti.com/lit/swra097...

  • Page 24: Appendix Asetting Up The Software Environment

    IAR Embedded Workbench for 8051. Version 8.10 (and newer) of the tool supports CC2543 and CC2544 out-of-the-box. In this example we will explain how to set up a project for the CC2543. The same procedure can be used for the CC2544 by simply replacing all references to “CC2543”...

  • Page 25: Project Options

    swru318 A.2 Project Options Right click the project to set up the project options. A.3 Select Device In the dialog window that appears, the first thing that is required is to select the device for which the project is built. Click on the button next to the device field. 25/31...

  • Page 26: Select Code And Memory Model

    Select the CC2543F32 file from the <ew8051_install_dir>\8051\devices\Texas Instruments folder. This .i51 device description file contains basic information about the chip. Back in the General Options view, you will see that CC2543 is now the selected device. “CPU core” should be set to Plain.

  • Page 27: Configure The Linker

    swru318 A.5 Configure the Linker Next, you will need to instruct the IDE what linker command file to use. The linker command file contains information the linker uses in order to place code and variables in ram and flash. Thus, the linker file must match the flash and ram size of device you are working with.

  • Page 28: Configure The Debugger

    A.6 Configure the Debugger Finally, in the debugger section, chose “Texas Instruments” for the Driver. All the other project options can be left as is and you can close the Project Options dialog by clicking 28/31...

  • Page 29: Write Software

    LED example. In the project, create a new file that you save as blinky.c. Type the following code: #include <ioCC2543.h> int main(void) int i; // Set P1.0 of CC2543 as output P1DIR |= 0x01; // Toggle P1.0 for(;;) P1_0 ^= 1;...

  • Page 30: Compile And Debug

    Next, download the application to the target by selecting “Project  Debug” from the menu (or press Ctrl+D). The application will now be downloaded to the target and you can start stepping through the code from main. A.9 Done! Congratulations! You have just made your first CC2543 software project in IAR. 30/31...

  • Page 31: Appendix Bschematics

    Please refer to the following pages for the schematics for CC2543 Evaluation Module CC2544 USB Dongle SmartRF05 Evaluation Board The layout for the evaluation module and USB dongle can be found on the CC2543 [1] and CC2544 [2] product web pages respectively. 31/31...
