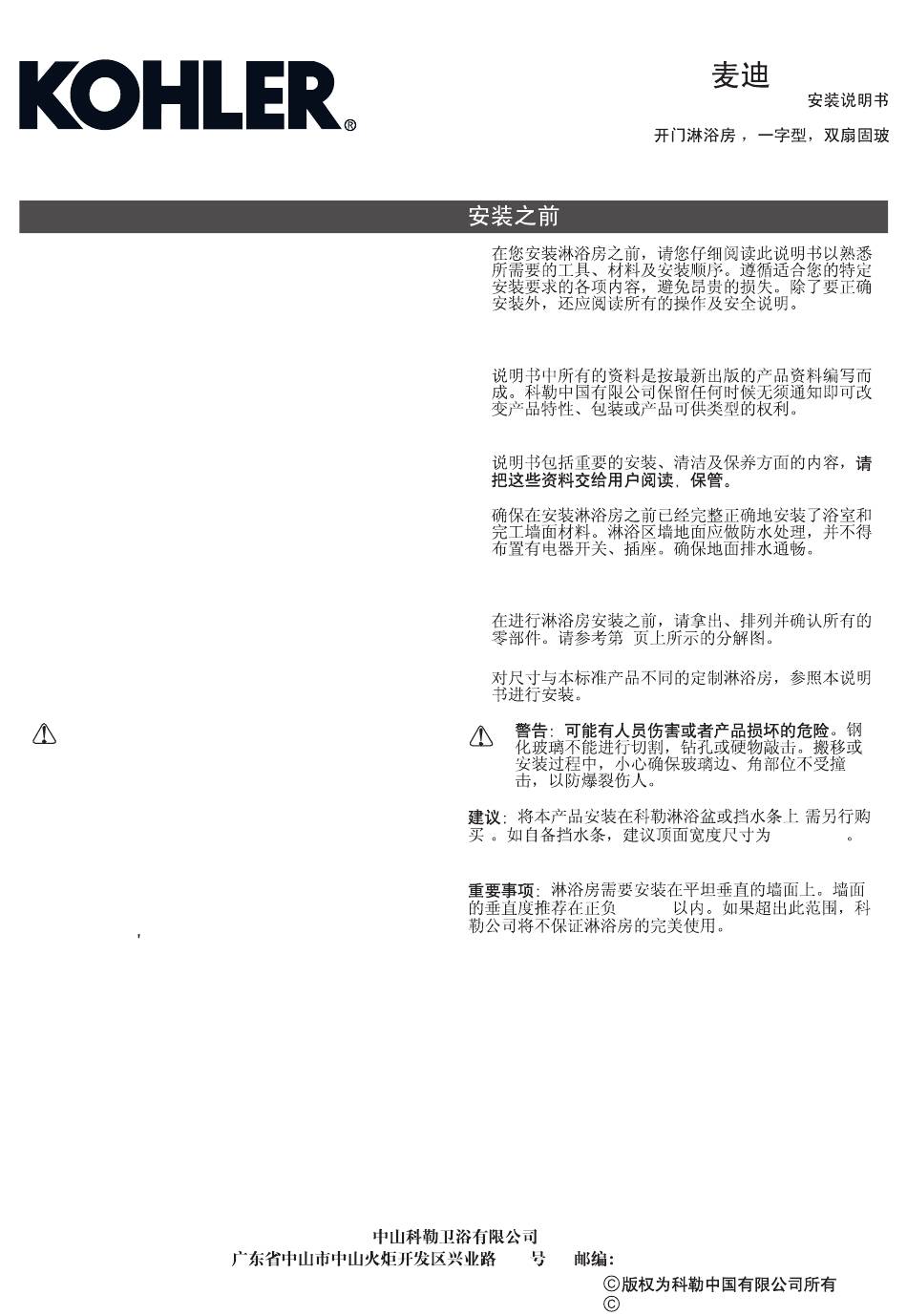

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Before you install your shower door, please read
these instructions carefully to familiarize yourself
with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information is based on the latest product
information available at the time of publication.
Kohler China Ltd. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning,
and warranty information-
instructions for the consumer.
·
Make sure that the bath and the finished wall
material are completely and correctly installed prior
to installing your shower door. Prepare waterproof
layer to wall and floor of the showering area. It is not
allowed for any presence of electric switches and
sockets. Make sure the floor drain runs smoothly.
·
Before starting the door installation, lay out and
identify all the parts. Use the exploded view
illustrated on page 2 for reference.
·
For the installation method of customized shower
with different dimensions, please refer to this
instructions.
CAUTION: Risk of injury or product damage.
Tempered glass cannot be cut, drilled or knocked
by hard object. Make sure corner area of the
glass refraining from knocking so as to cause
personal injury due to broken glass.
ATTENTION:
Please install this door on Kohler
receptors or curbs. (Not included). If the curb is not
Kohler-branded, please note its top width should fall
within the range of 50~80mm.
IMPORTANT:
The shower door requires a flat vertical
finished wall. The squareness of the wall is
recommended no more than 3 mm/m. KOHLER
Company won t take responsibility of the installation
quality.
1124263-T01-C
please leave these
·
·
·
·
·
·
)
13-1
-1-
MATTIA
INSTALLATION INSTRUCTIONS
PIVOT, SCREEN, TOW PANELS
2
50~80mm
3mm/m
528437
Copyright Kohler China Ltd., 2010
K-36974T
(
, 2010
Advertisement
Table of Contents
Related Manuals for Kohler MATTIA K-36974T
Summary of Contents for Kohler MATTIA K-36974T
- Page 1 · · All information is based on the latest product information available at the time of publication. Kohler China Ltd. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. · ·...
-
Page 2: Parts Identification
ROUGHING-IN Unit: mm Door Width K-36974T 1200-2000 680/780 1870-2000 PARTS IDENTIFICATION PARTS IDENTIFICATION Track Door Panel Sealing Strip Wall Channel Door Seal Inline Panel Cover Strip 1124263-T01-C... -
Page 3: Installation Requirements
Top Cap Glass Fixing Clamp Fixing Bolt Spacer Glass Fixing Cover Cover Door Handle Assembly 4mm Allen Key Cover Cap 3mm Allen Key Spacer Splashguard INSTALLATION REQUIREMENTS INSTALLATION REQUIREMENTS Tools Required · · Phillips Screwdriver · · Pencil · · Caulk Gun ·... -
Page 4: Installation
INSTALLATION Fit the wall channels to the wall on both sides. Note: Fixing block must be on the inside edge of the wall channel. Wall channel MUST plumb on the front face. STEP Break the spacers in half. Place the 3mm section into the base of the wall channel (Use the 6mm section or omit the spacer if the tray is not perfectly level). - Page 5 Carefully lift the inline panel into place. Carefully slide the panel into the wall channel. Engage the mouldings but do not lock into place at this moment. Note: Assembly is aided by tilting the panel and moving the fixing blocks up or down in the wall channel.
- Page 6 Fix the track to the panels at each end. Note: The holes in the glass are larger than the mounting blocks. Centre the glass on blocks when fitting. STEP Lift the door into place. Locate the bottom pivot pin into the collar, then insert into the pivot base. IMPORTANT: Ensure the door is fully supported at all times.
- Page 7 Fit the top track to door ensuring the pivot pin Fix the track to the panels at each end. locates in the pivot base. Note: The holes in the glass are larger than the mounting blocks. Centre the glass on blocks when fitting. STEP Check that the panels are far enough into the wall If the tray has been fitted level the gap under the...
- Page 8 Fix pivot cap onto both sides of the pivot, then knock with rubber hammer to ensure the cap is locked in position if necessary. Fit splashguards to the underside of the door. The splashguard lip should face inside the enclosure. STEP STEP Fit the magnetic sealing strips to the side of the door...
- Page 9 Fit the cover strips to the wall channels. Rail Installation (only for the product which width is Start at the bottom and tap into place with a block of above 1500mm). wood or similar. 1500mm Ensure the rail is positioned in a horizontal way.
- Page 10 Adjust if necessary and lock the top cap screw. Fit the top caps. Note: If the glass is higher than the wall channel, trim away the recessed section of the top cap. Lock the top cap screw for the glass clamp. STEP STEP Slide the covers over the glass fixing clamps top...
- Page 11 Lay a thin bead of sealant along the bottom of track Fit the door handle. and fill the gap between the glass and tray on the outside of the enclosure. STEP STEP Do not use the enclosure for at least 24 hours. 24hrs STEP 1124263-T01-C...
