Summary of Contents for Hunter Douglas Specialty Motorized Vertical Blinds

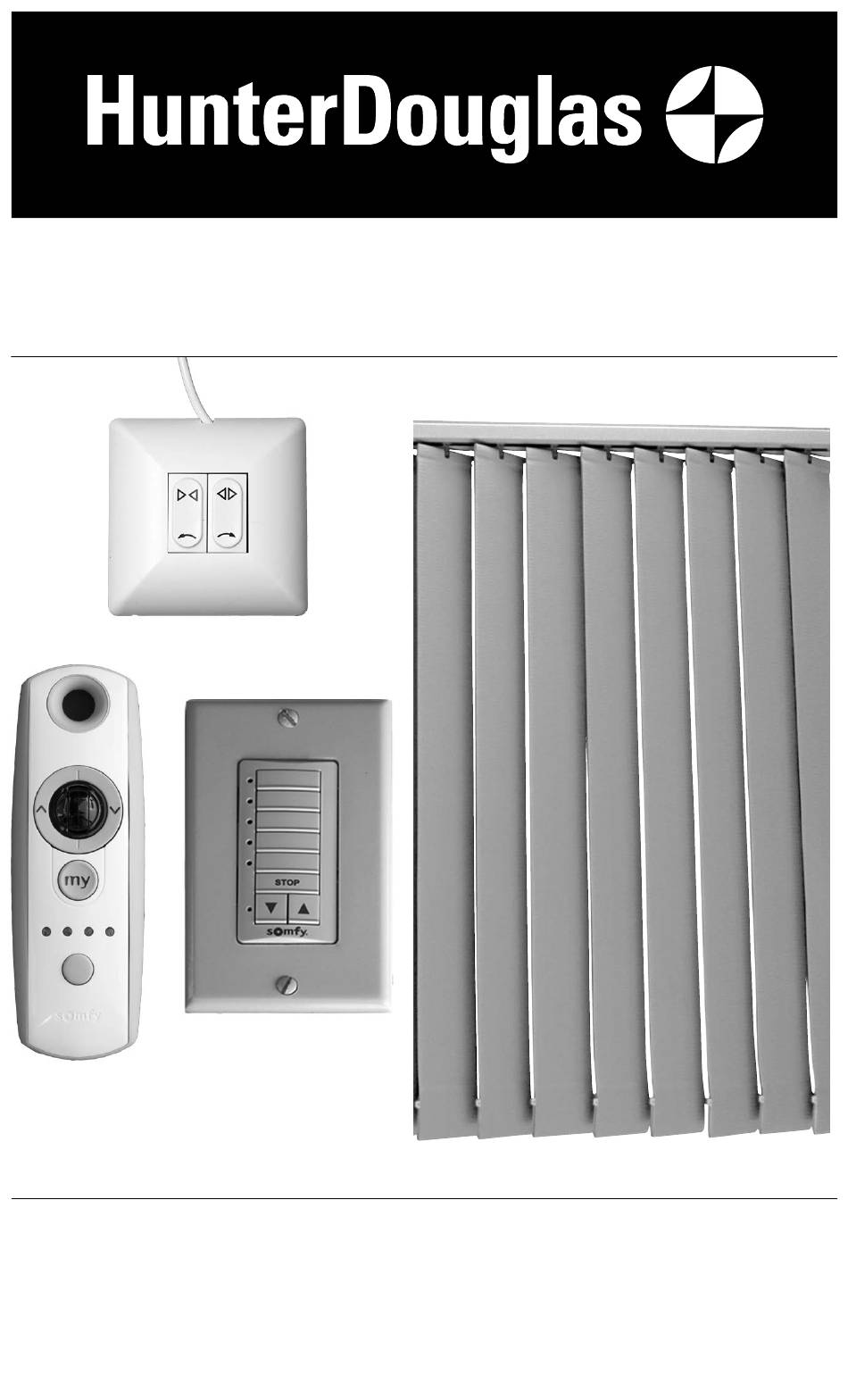

- Page 1 Installation Operation Care • • Vertical Blinds Specialty Motorized...
-
Page 2: Table Of Contents
Care: Removing the Vanes (If Necessary) ...............19 Cleaning Procedures ...................19 Questions? Call the Hunter Douglas Consumer Support at: 1-888-501-8364. © 2016 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their respective owners. -
Page 3: Getting Started
GETTING STARTED Product View Outside Mount Bracket Assembly Inside Mount Bracket Motor Headrail Carrier Vanes... -
Page 4: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Specialty Motorized Vertical Blinds. With proper installation, operation, and care, your new blinds will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. -
Page 5: Installation
INSTALLATION Mount the Mounting Clips — Inside Mount without Valance The mounting clip is mounted on the headrail not on the motor cover. Mark 2 to 4" in from ■ each jamb. Mark the position for remaining mounting clips. Distance should be no more than 24"... -
Page 6: Mount The Installation Brackets - Outside Mount
INSTALLATION Mount the Installation Brackets — Outside Mount Motor-End Bracket. Remove the wingnut and install it on the top ■ Motor-End Bracket of the bracket. The tab should be positioned away from the motor. The Orientation orientation shown is for a rear motor mount. Wingnut Center the headrail over the window opening at the desired height. -
Page 7: Valance Assembly
INSTALLATION Valance Assembly For inside mount blinds, attach the dust cover valance directly to the head jamb. To mount it outside the window, attach it to the headrail using the valance hangers. Please refer to the sections below for your valance type. Single-Tiered Dust Cover Closed Square Corner Valance Insert Attachment:... - Page 8 INSTALLATION Single-Tiered Dust Cover Open Square Corner (Fabric Only) Cut fabric long enough to wrap around ■ the corner and over the entire return Valance Return plus at least 1" excess at each end. Attach the corner clip and valance ■...
- Page 9 INSTALLATION Single-Tiered Dust Cover Universal Round Corner Fabric Valance Insert Return Install the round valance corners onto each end of the valance. ■ Install the valance returns onto each end of the round ■ valance corners. Cut the fabric insert 4" longer than the total length of the ■...
- Page 10 INSTALLATION Double-Tiered Dust Cover Universal Round Corner To install the double-tiered universal round corner valance, ■ follow the instructions for the single-tiered universal round corner valance. The corner caps are installed on the top and bottom of the upper valance and only on the bottom of the lower valance.
-
Page 11: Install Mounting Clips (And Assembled Valance) - Inside Mount
INSTALLATION Install Mounting Clips (and Assembled Valance) — Inside Mount Refer to the appropriate section below based on your motor mount position. Front Mounted Motor Mounting clips have to be mounted separate ■ Motor Position Rear Front from the valance. Minimum with "... -
Page 12: Install Valance Bracket Front Motor Mount Blinds - Outside Mount
INSTALLATION Use a level to check that the mounting surface is level. Shim the brackets, if necessary. ■ Shims are not provided. Hold the valance in position. Use a ∕ " drill bit to drill the screw holes through the valance ■... -
Page 13: Install The Headrail
INSTALLATION Install the Headrail Center headrail underneath mounting clips. ■ Tilt the headrail and insert it into the front edge of the mounting clip. Pull and roll the ■ headrail up toward the rear of the blind and snap into place. Install the Valance Outside Mount Blinds with Rear Valance Hanger... -
Page 14: If You Have A Wired Wall Switch
INSTALLATION Secure the power supply cable using wire retainers. If hiding ■ the cable behind the blind, make sure it does not impede the operation of the blind. Space the wire retainers approximately 15" apart along the ■ power supply cable, as shown. Wire Retainers Warning: Keep cords and small parts out of the 15"... -
Page 15: Install The Vanes
INSTALLATION Install the Vanes Determine the desired light/view direction. ■ Top View Light Source (Sun) Light Diffusion Finished into Room Side Light Source (Sun) Finished Light Diffusion Side into Room Rotate the vane hooks so the slot between ■ the long and the short prong is facing you. Push the vane into the hook until it “snaps”... -
Page 16: Operation
OPERATION Blind Operation Using the Remote Control Your remote control channels are pre-programmed. To clear the remote from blind memory, see “Clear the Remote/Wireless Wall Switch from Blind Memory (If Necessary)” on page 16. To reassign a blind to a channel, see “Assign a Blind to a Channel (If Necessary)” on page 16. SCROLL WHEEL Tilt Vanes Up... - Page 17 OPERATION Using the Wired Wall Switch Traverses Vanes CLOSE OPEN Tilts Vanes Press and hold CLOSE the blind will begin to close and will stop when you release ■ the button. Press and hold OPEN the blind will begin to open and will stop when you release ■...
-
Page 18: Clear The Remote/Wireless Wall Switch From Blind Memory (If Necessary)
OPERATION Clear the Remote/Wireless Wall Switch from Blind Memory (If Necessary) The following steps will clear the remote/wireless wall switch from the blind memory which removes all channels. Motor Traverse the blind to the fully open position. ■ Program Button With a pocket screwdriver, press and continue to hold the ■... -
Page 19: Program 'My' Button (Optional)
OPERATION Program ‘MY’ Button (Optional) The ‘MY’ button allows you to set a favorite position for your blind. Move the blind and tilt the vanes to your favorite position. ■ Press and hold the ‘MY’ button. The motor will beep (one ■... -
Page 20: Troubleshooting
OPERATION Troubleshooting Problem Vanes do not all rotate or close tightly. Solution Check to see if the carriers bodies are in sync. If they are not in sync, rotate them by hand so they are all in the same position. Problem The blind does not respond. -
Page 21: Care
CARE Removing the Vanes (If Necessary) Push up on the vane. ■ Gently open the vane hook by inserting a credit card-sized piece of rigid plastic between the ■ vane and the long prong of the vane hook. Carefully remove the vane. ■... - Page 22 Notes...
- Page 24 2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations. 3. Contact Hunter Douglas at (888) 501-8364 for technical support, certain parts free of charge, for assistance in obtaining warranty service or for further explanation of our warranty.
