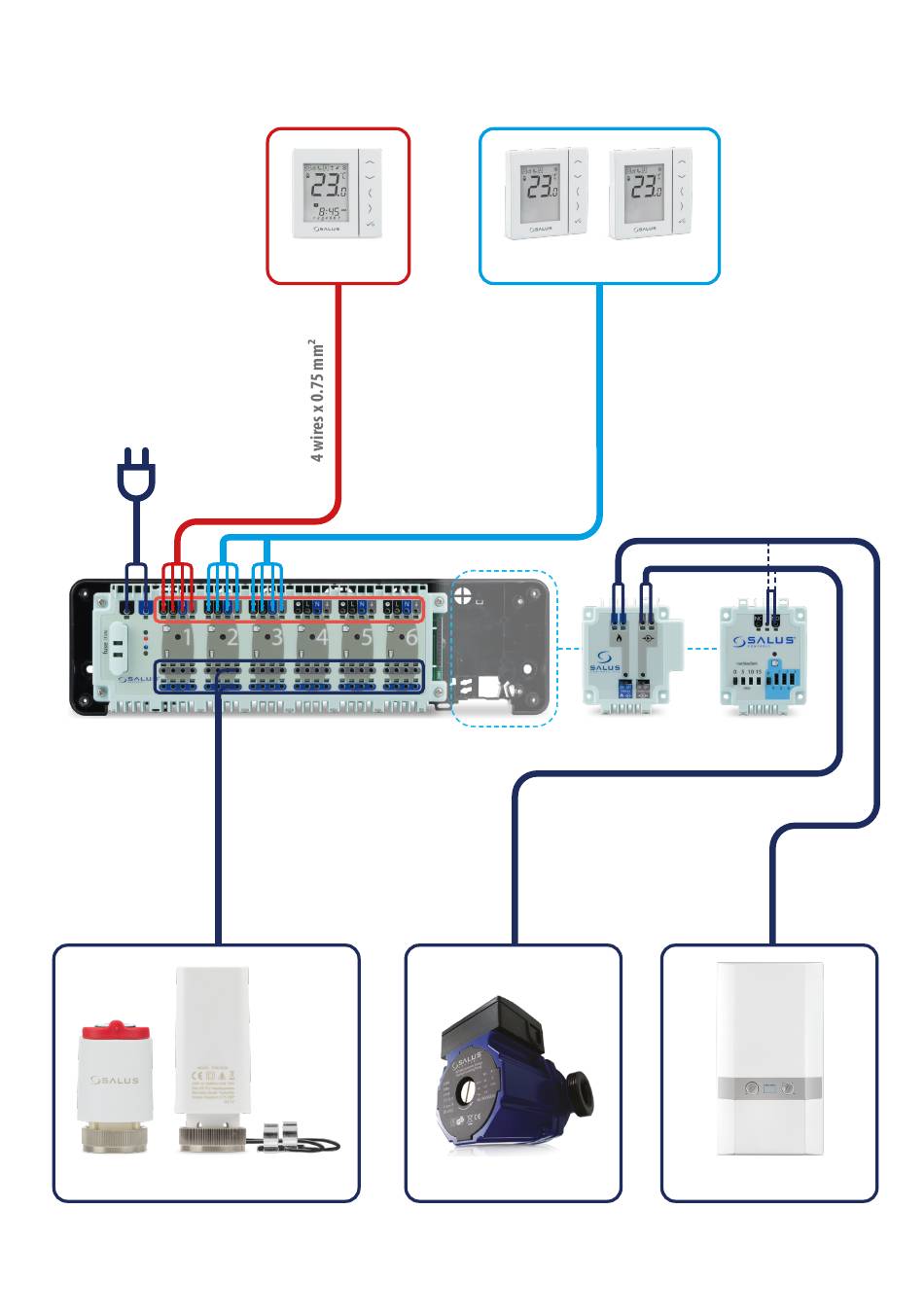

I B - 4 wire installation with KL06 wiring centre

MASTER
SLAVE
VS30W/VS30B
VS35W/VS35B VS35W/VS35B
Power Supply
230V AC
4 wires x 0.75 mm2
KL06
PL07
PL06
Actuators wires
Pump control wires
Boiler control wires
2 x 0.75 mm2
2 x 1 mm2
2 x 1 mm2
T30NC230
THB23030
PUMP (optional)
BOILER
