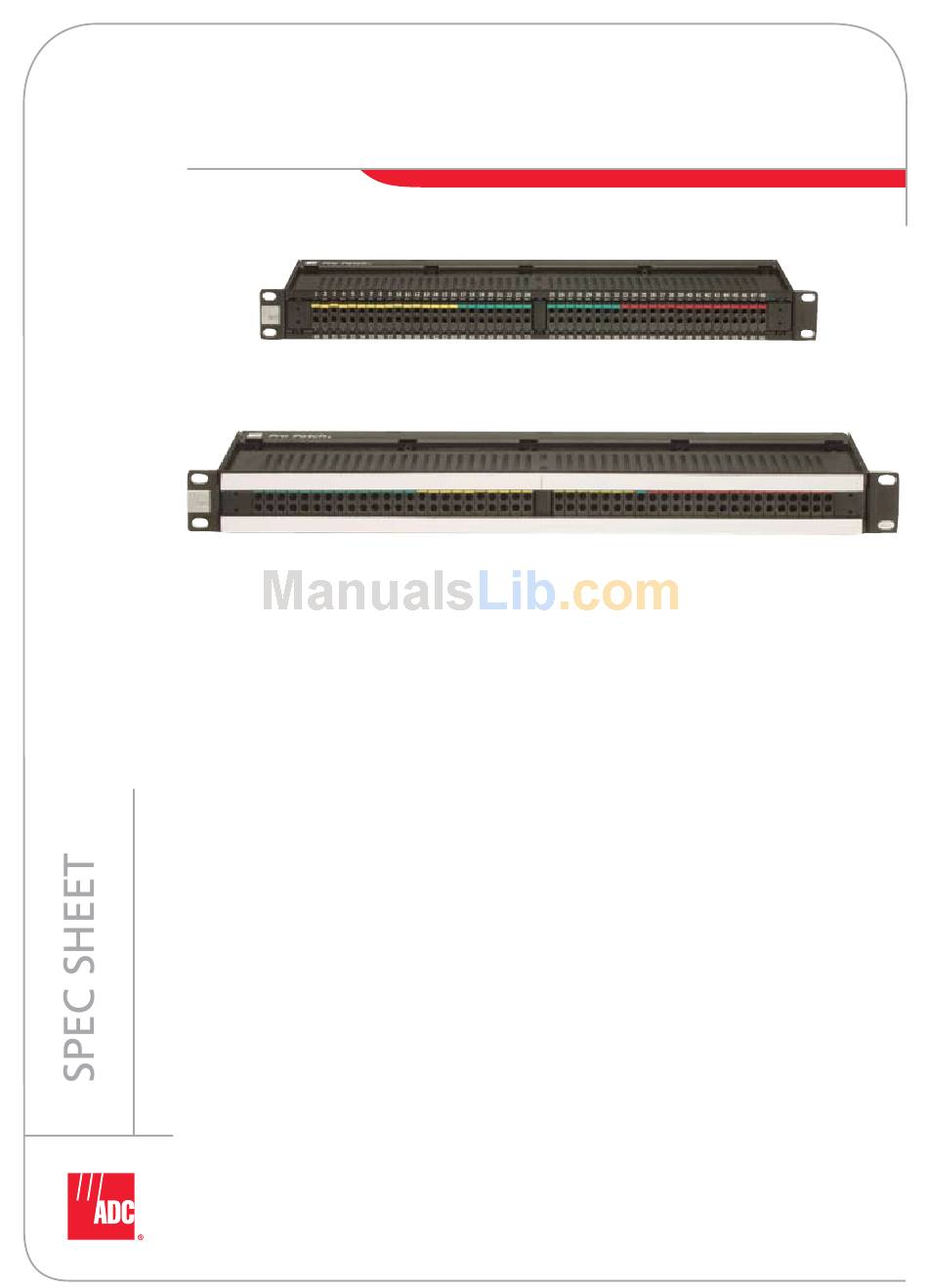

ADC ProPatch Programmable Series Specification Sheet

ProPatch
®
High-Density Patching System
The ProPatch Programmable modular system offers unprecedented reliability and flexibility in a
®
convenient, space-saving size and lightweight package. Specifically engineered for everyday use
in demanding mobile trucks, the ProPatch Programmable system is the only product in its class
that passes stringent MIL-STD-202F standards for vibration and environmental requirements.

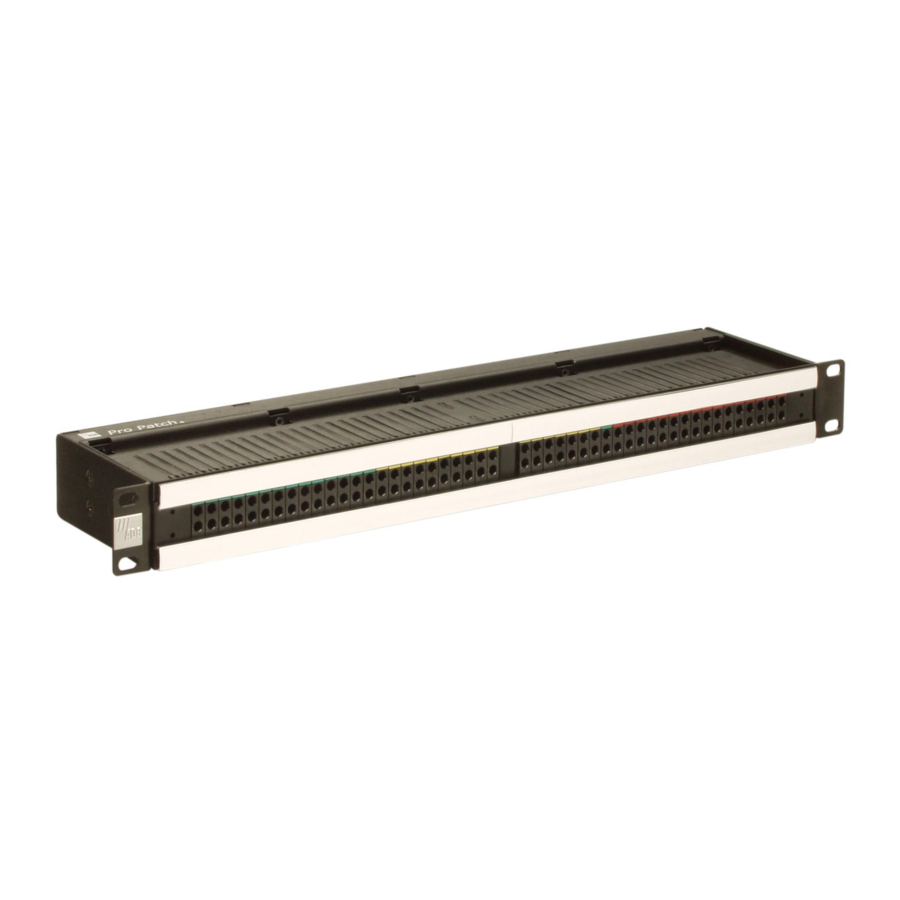

The ProPatch Programmable bantam system is a WECO-standard module in a high-density 2x48
one rack space panel. The longframe system is a WECO-standard module in either a 2x24 or
high-density 2x32 one rack space configuration. The modular design allows individual front
jack access for circuit and ground configurations without having to take the entire panel offline
or removing it from the rack. Each modular jack features WECO gold crossbar contacts that
provide self-cleaning action and maximize reliability. Jack modules are also individually sealed
which prevents dust and contamination from convection plenum action common in rack
mounted systems.
The ProPatch Programmable series is available with a variety of termination options including
QCP punchdown, LSA-PLUS
and 50-pin AMP "champ" connectors, in both an eight-connector version for audio and a four-
connector version for RTS/ClearCom type intercom systems.
Only five inches deep and 6.2 pounds fully configured, the ProPatch Programmable series is
unmatched in the marketplace. Using ADC's patent-pending escutcheon kit, the one rack unit
panel can be converted to a 1.5 rack unit configuration. This allows the use of ADC's ultra-large
designation strips, providing room for three lines of text, plus markers—the largest designations
on the market.
w w w . a d c . c o m
Programmable Series
punchdown, 3-pin, 56-pin, 90-pin, 120-pin EDAC/ELCO connectors,
®
