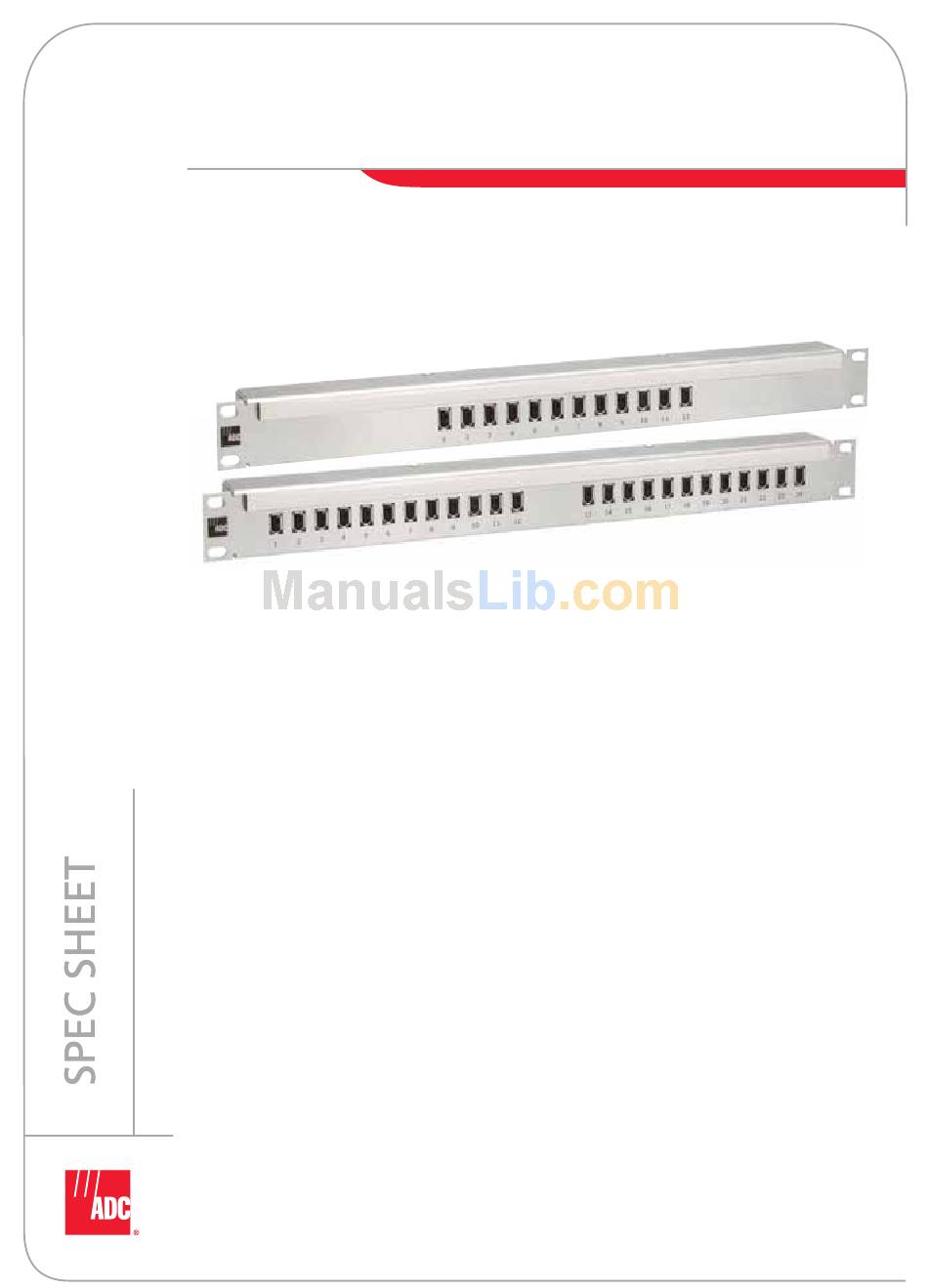

ADC FireWire Patch Panel IEEE 1394a Specification Sheet

Ieee 1394a firewire patch panel

ADC IEEE 1394a

FireWire

Patch Panel

ADC's IEEE 1349a Firewire patch for broadcast connectivity accommodates 12 or 24 ports in one

rack unit and mounts in standard 19-inch racks. The panel offers a passive interconnection solution

for digital video editing needs. Industry-compatible six-pin IEEE 1394a connectors on both the

front and rear of the panel allow the interconnection of cameras, servers, workstations, and

non-linear editing suites via FireWire at 400 Mb/s bandwidth. The result is increased flexibility

and productivity without sacrificing performance and reliability.

Features:

• IEEE 1394a compatible six-pin connectors

• 400 Mb/s bandwidth

• High-density 12 or 24 ports in one rack unit

• Plated panel housing to facilitate superior shielding and grounding

• Designation and port numbering

w w w . a d c . c o m

•

+ 1 - 9 5 2 - 9 3 8 - 8 0 8 0

•

1 - 8 0 0 - 3 6 6 - 3 8 9 1

Table of Contents

Do you have a question about the FireWire Patch Panel IEEE 1394a and is the answer not in the manual?

Page 1 ® Patch Panel ADC’s IEEE 1349a Firewire patch for broadcast connectivity accommodates 12 or 24 ports in one rack unit and mounts in standard 19-inch racks. The panel offers a passive interconnection solution for digital video editing needs. Industry-compatible six-pin IEEE 1394a connectors on both the front and rear of the panel allow the interconnection of cameras, servers, workstations, and non-linear editing suites via FireWire at 400 Mb/s bandwidth.
Page 2 From North America, Call Toll Free: 1-800-366-3891 • Outside of North America: +1-952-938-8080 Fax: +1-952-917-3237 • For a listing of ADC’s global sales office locations, please refer to our web site. ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA 55440-1101 Specifications published here are current as of the date of publication of this document.

Vi-112-sb-1394Vi-124-1394
