ADC UltraWAVE X100 Specification Sheet

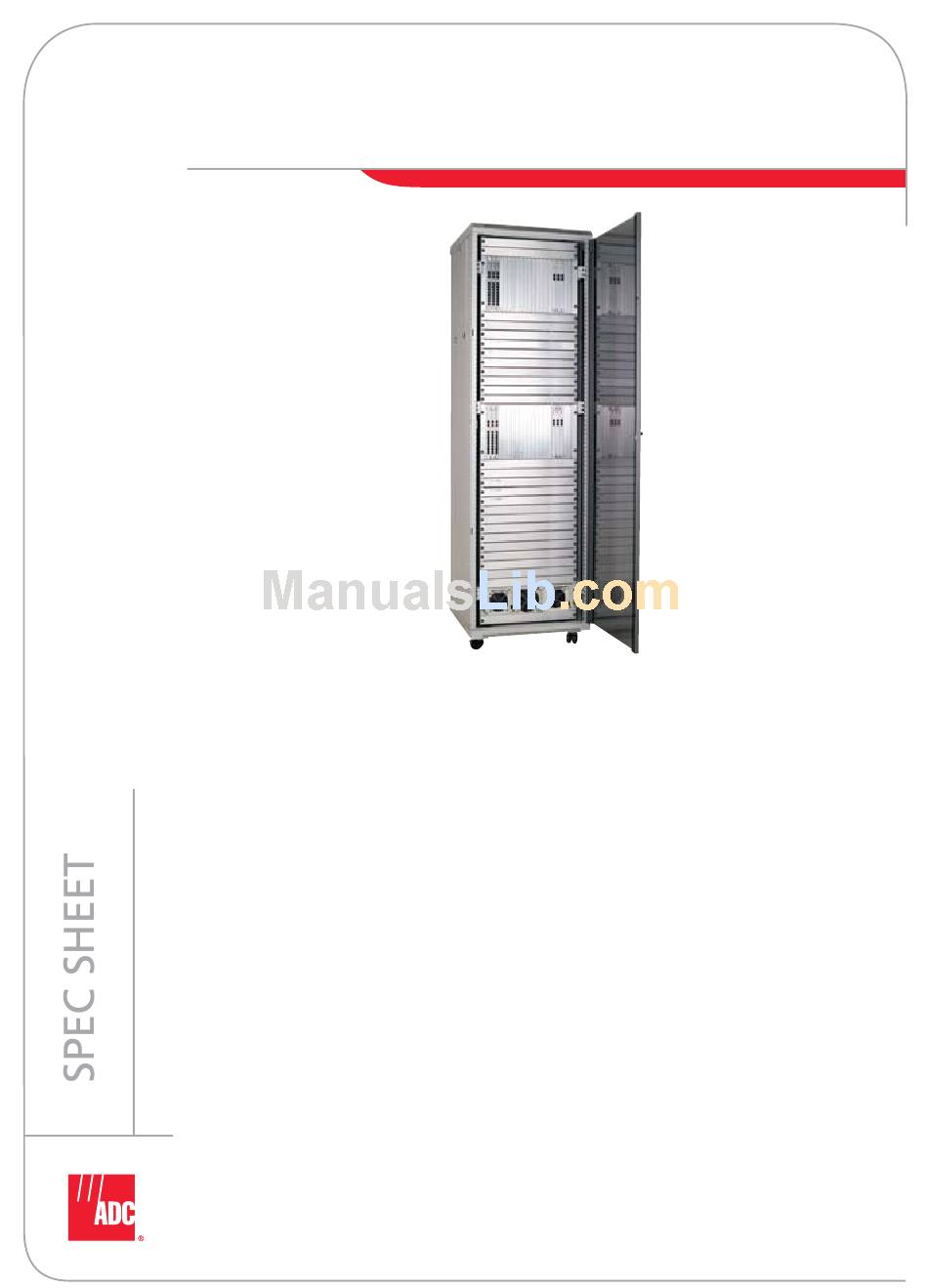

UltraWAVE X100
GSM Mobile Switching Center
UltraWAVE X100, UltraWAVE BSC and UltraWAVE BTS work hand-in-hand to reduce the total cost
of network ownership, providing a network growth path for existing and future customers, and
expand the addressable markets of ADC Mobile Network Solutions GSM products. They serve as
the flagship GSM product line for ADC.
The UltraWAVE X100 is a large GSM mobile switch with capacity of up to 256 E1 or T1 ports and
100,000 subscribers. It provides a compact and cost effective platform, which helps lower the
cost of network ownership. The X100 builds on ADC's proven GSM architecture by providing a
high capacity switching platform which provides economies of scale and broadens the addressable
market. The X100 provides operators with a wide range of features to grow their businesses and
includes basic telephony services, audio announcements, built-in prepaid, voicemail and SMSC
value added services.
Key MSC Features
• HLR capacity - 100,000
• VLR capacity - 100,000
• SS7 linksets - 128
• Redundancy - traffic load sharing
• Route redundancy
• 2 +1 power redundancy
