User Manual
Model MM200

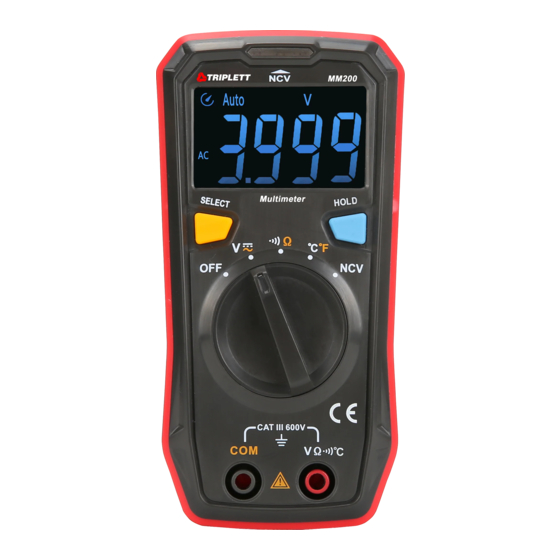

Compact Digital MultiMeter
Introduction
Congratulations on your purchase of the Triplett MM200 Compact Digital
Multimeter. The MM200 is a compact multimeter specially designed for home
and light electrical use. The compact structure makes it easy to hold in one
hand, and the EBTN screen allows users to obtain clear readings at maximum
angle. The multimeter meets the EN61010-1:2010, EN61010-2-030:2010, and
EN61326-1:2013 safety standards and is able to safely operate within the CAT
III 600V environment.
Features
Battery Power Indication on Power Up via LED
- Green (Normal State) Yellow (Low Battery) and Red (Very Low)
Automatic AC/DC Voltage Measurement Detection
Non Contact ACV Detection with LED indicating electric field strength.
Full Feature Protection
Advertisement
Table of Contents
Related Manuals for Triplett MM200
Summary of Contents for Triplett MM200
- Page 1 Introduction Congratulations on your purchase of the Triplett MM200 Compact Digital Multimeter. The MM200 is a compact multimeter specially designed for home and light electrical use. The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle.
- Page 2 Safety This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present Double insulation • Improper use of this meter can cause damage, shock, injury or death. Read and understand this user manual before operating the meter.
- Page 3 Operating Instructions AC/DC Voltage Measurements 1. Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the positive V jack. 2. Turn the rotary switch to the V position. 3. Press the SELECT button to select either AC or DC. 4.
- Page 4 Temperature Measurements WARNING: To avoid electric shock, disconnect test leads from any source of voltage before making a temperature measurement. Be sure that the thermocouple has been removed before changing to any other measurement function. 1. Insert the type K thermocouple probe into the Temp and COM jacks.
- Page 5 Auto Power Off This meter will automatically shut off after approximately 15 minutes of operation. If the meter shuts off, rotate the function switch to OFF and on again (or press the HOLD button) to resume operation. To disable the auto power off, hold the SELECT button while turning power on or press the SELECT button after auto power off has turned the meter off.
- Page 7 Warranty Information Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
