Page 2
Please read the materials associated with the product before your first use of the product. These documents are included in the product package and/or are available online on the LIVOX Technology Company Limited ("Livox") website (www.livoxtech.com).
Page 3
Otherwise, the heat dissipation may be affected. It is normal for the temperature of the Livox Tele-15 to increase during use. If the air inlet or air outlet is blocked, however, the temperature increase will be more significant, which may negatively affect the performance and may lead to permanent damage.
Page 4

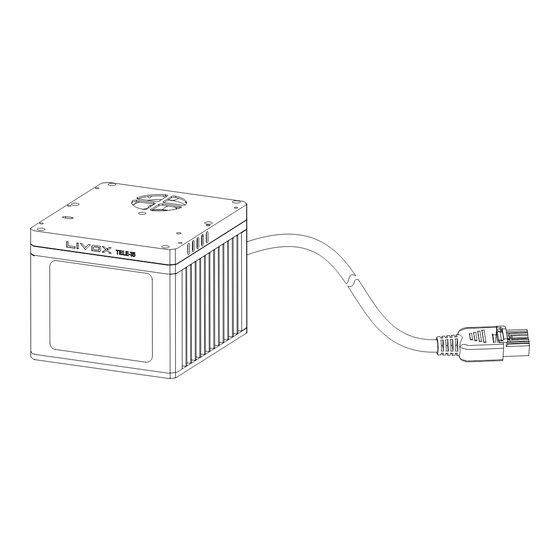

This allows the Livox Tele-15 to capture more data in the field of view (FOV). Users can check the real-time point cloud using Livox Viewer, and a software development kit (SDK) is provided to help develop customizable applications using the data acquired from the point cloud.
Page 5
When the self-dissipation module is detached, make sure to attach the provided rubber seal to the fan connector on the top of the Livox Tele-15. Make sure that the temperature of the LiDAR shell does not exceed 85° C (185° F). It is recommended to operate the Tele-15 in an environment with a temperature lower than 65°...
Page 6
Livox Tele-15 to or in an appropriate place on the target base. When the self-dissipation module is attached to the Livox Tele-15, the Livox Tele-15 can be mounted on the target base using M3 screws or outfitted with ¼ inch mounting holes.
Page 7
The Livox Tele-15 supports two IP modes: dynamic IP address mode and static IP address mode. All Livox Tele-15 LiDAR sensors are set to static IP address mode by default with an IP address of 192.168.1.1XX (XX stands for the last two digits of the Livox Tele-15 LiDAR sensor’s serial number).
Page 8
Connect the computer and the Livox Converter 2.0 using an Ethernet cable. c. Connect the Livox Converter 2.0 to an external power source. • Refer to the Livox Tele-15 User Manual on how to set the dynamic IP address and then connect the Livox Tele-15 to a router.
Page 9
0.3 m, an occlusion warning is sent by error code. The point cloud data may be distorted to a varying extent when the target object is within a range of 2.5 to 5 m. It is recommended to use other Livox products if precise measurement within this range is required.
Page 10
Dokument nicht lesen und beachten, kann dies zu ernsthaften Verletzungen, Schäden oder zum Verlust Ihres Livox Produkts oder anderer Objekte führen, die sich in der Nähe befinden. Mit dem Gebrauch des Produkts bestätigen Sie, dass Sie diesen Haftungsausschluss aufmerksam gelesen und den Inhalt verstanden haben und mit den Allgemeinen Geschäftsbedingungen...
Page 11
Einsatzbedingungen ungefährlich. 8. Flüssigkeitsschäden sind von der Garantie ausgeschlossen. 9. Lassen Sie den Livox Tele-15 NICHT fallen. Das Kabel hält dem Gewicht des Livox Tele-15 nicht stand. Seien Sie bei Transport und Montage sorgsam. 10. Die Kurzfassung der Betriebsanleitung des Livox Tele-15 enthält wichtige Informationen. Lesen Sie vor der ersten Verwendung unbedingt die Kurzfassung der Betriebsanleitung und bewahren Sie diese zur Referenz auf.
Page 12
DL-Pack-Technologie (Multi-Laser und Multi-APD) sowie ein fortschrittliches optoelektronisches Systemdesign, das einen weiteren Erfassungsbereich und eine höhere Punktwolkendichte und -abdeckung ermöglicht. So kann der Livox Tele-15 mehr Daten im Sichtfeld (FOV) erfassen. Benutzer können die 3D-Echtzeit-Punktwolke mithilfe der Software Livox Viewer anzeigen lassen.
Page 13
2. Montage und Anschluss Effektiver Sichtfeldbereich Der Livox Tele-15 bietet ein Sichtfeld (FOV) von 14,5 ° (horizontal) × 16,2 ° (vertikal), wie unten dargestellt. Achten Sie bei der Montage des Sensors darauf, dass der Sichtfeldbereich nicht durch andere Anbauten oder Gegenstände verdeckt ist.
Page 14
Beachten Sie die Abmessungen und die Bohrungen in der folgenden Abbildung, um den Livox Tele-15 auf der Zielplattform zu montieren oder an einer geeigneten Stelle daran einzubauen. Wenn das Kühlmodul am Livox Tele-15 angebracht ist, kann der Livox Tele-15 mit M3-Schrauben oder über die ¼-Zoll-Bohrungen an der Zielplattform befestigt werden.
Page 15
Stellen der Seriennummer des jeweiligen LiDAR-Sensors des Livox Tele-15. Ab Werk sind die Subnetzmaske des LiDAR-Sensors auf 255.255.255.0 und der Gateway auf 192.168.1.1 gesetzt. Verbinden Sie den Livox Tele-15 bei der ersten Verwendung direkt mit einem Computer.
Page 16
Klicken Sie oben im Geräte-Manager-Fenster auf „LiDAR“. e. Wählen Sie den Livox Tele-15 aus, den Sie sich anzeigen lassen möchten, und klicken Sie dann , um die Verbindung herzustellen. Wählen Sie alternativ den Livox Tele-15 aus, den Sie sich anzeigen lassen wollen, klicken Sie auf diesen mit der rechten Maustaste und dann auf „Connect“.
Page 17
Ca. 1,6 kg (mit Kühlmodul) Ca. 1,5 kg (ohne Kühlmodul) ① Die Strahldivergenz des Livox Tele-15 beträgt 0,02 ° (horizontal) × 0,12 ° (vertikal). Die Divergenz des eingebauten Lasers beträgt ungefähr 25,2 ° (horizontal) × 8 ° (vertikal), gemessen am halben Maximum bei voller Breite.
Page 34
와 제품을 통해 제공되는 콘텐츠는 모든 종류의 명시적이거나 암시적인 보증 또는 조건 없이 ‘ 있는 그대로 ’ 그리 고 ‘ 사용 가능한 그대로 ’ 제공됩니다 . LIVOX 는 다음을 포함하여 제품 , 제품 액세서리 및 모든 자료와 관련하여 명 시적 또는 암시적 여부에 관계없이 LIVOX A/S 서비스 정책에서 명시적으로 제공되는 것을 제외하고 모든 종류의...
Page 35
이 충분한지 확인하십시오 . 본 제품을 좁고 사방이 막힌 공간에 두지 마십시오 . 열 방출에 영향을 미칠 수 있습 니다 . 사용 중에 Livox Tele-15 의 온도가 증가하는 것은 정상적인 현상입니다 . 단 , 공기 유입구 또는 공기 유출 구가 차단되면 온도 상승이 더욱 커지므로 성능에 부정적인 영향을 미칠 수 있으며 영구적인 손상을 초래할 수...
Page 36
Livox Tele-15 은 호환성이 뛰어난 고성능 LiDAR 센서로서 자율주행 운전 , 로봇 수색 , 고정밀 매핑을 포함한 여러 응용 분야에 사용할 수 있습니다 . Livox Tele-15 은 탐지 범위를 더 넓히고 더 높은 포인트 클라우드 밀 도와 커버리지를 사용할 수 있는 DL-Pack( 멀티 레이저 및 멀티 APD) 기술과 첨단 광전자 시스템 설계를 특...
Page 37
Livox Tele-15 퀵 스타트 가이드 2. 설치 및 연결 유효 FOV 범위 Livox Tele-15 은 아래와 같이 14.5°( 수평 ) × 16.2°( 수직 ) 의 FOV 를 가지고 있습니다 . 센서를 장착할 때는 물 체에 의해 FOV 가 차단되지 않도록 하십시오 . 16.2°...
아래 그림의 치수와 장착 구멍을 참조하여 Livox Tele-15 을 대상 베이스의 적절한 위치에 장착하거나 끼워 넣 습니다 . 자체 방열 모듈을 Livox Tele-15 에 부착하고 나면 M3 나사를 사용하여 Livox Tele-15 을 대상 베이 스에 장착하거나 ¼ 인치 장착 구멍에 끼워 넣을 수 있습니다 .
Page 39
자 매뉴얼을 참조하십시오 . Livox Tele-15 연결하기 Livox Tele-15 은 유동 IP 주소 모드와 고정 IP 주소 모드라는 두 가지 IP 모드를 지원합니다 . 모든 Livox Tele-15 LiDAR 센서는 IP 주소가 192.168.1.1XX 인 고정 IP 주소 모드로 기본 설정됩니다 (XX 는 Livox Tele-15 LiDAR 센서...
Page 40
• Livox 변환기 2.0 의 작동 전압은 9~30V 입니다 . 따라서 Livox 변환기 2.0 를 사용하여 Livox Tele- 15 을 외부 전원에 연결할 때 외부 전원의 지원되는 전압 범위는 9~30V 입니다 . 단 , Livox Tele-15 이 외부 전원에 직접 연결되어 있는 경우에는 Livox Tele-15 의 작동 전압이 10~15V 이기 때문에 작동...
Page 41
약 1.5 kg ( 자체 방열 모듈 제외 ) ① Livox Tele-15 의 빔 확산도는 0.02°( 수직 ) × 0.12°( 수평 ) 입니다 . 단 , 내장 레이저의 확산도는 약 25.2°( 수평 ) × 8°( 수직 ) 이며 , 이는 최대값의 절반에서 최대 폭으로 측정되었습니다 . 임베디드 레이저의 최대 피크 파워는 70W 를 초과할 수 있습...
Page 42
Germany Any changes or modifications not expressly approved by the Declaração de conformidade da UE: A Livox Technology Co., party responsible for compliance could void the user’s authority Ltd. declara, através deste documento, que este dispositivo to operate the equipment.
Page 43
Indirizz ta’ kuntatt tal-UE: Industriestrasse 12, 97618, Niederlauer, Germany Niederlauer, il-Ġermanja AB Uygunluk Beyanı: Livox Technology Co., Ltd. bu belge ile Declarația UE de conformitate: Prin prezenta, Livox Technology bu cihazın temel gerekliliklere ve 2014/30/EU sayılı Direktifin Co., Ltd. declară faptul că acest dispozitiv este conform cu diğer ilgili hükümlerine uygun olduğunu beyan eder.
Page 44
AB için iletişim adresi: Industriestrasse 12, 97618, Niederlauer, responsabilidade do proprietário de aparelhos antigos levá-los Almanya a estes pontos de recolha ou a pontos de recolha semelhantes. Com este pequeno esforço pessoal, contribui para a reciclagem Environmentally friendly disposal de matérias-primas úteis e para o tratamento de substâncias Old electrical appliances must not be disposed tóxicas.
Page 45
savākšanas punktos vai līdzīgos savākšanas punktos. Ar šīm Utylizacja przyjazna dla środowiska nelielām personiskajām pūlēm jūs veicināt vērtīgu izejmateriālu Nie można usuwać starych urządzeń elektrycznych wraz z pārstrādi un toksisko vielu apstrādi. pozostałymi odpadami. Wymagają one oddzielnej utylizacji. Utylizacja przez osoby prywatne w punkcie zbiórki odpadów Hävittäminen ympäristöystävällisesti komunalnych jest darmowa.
