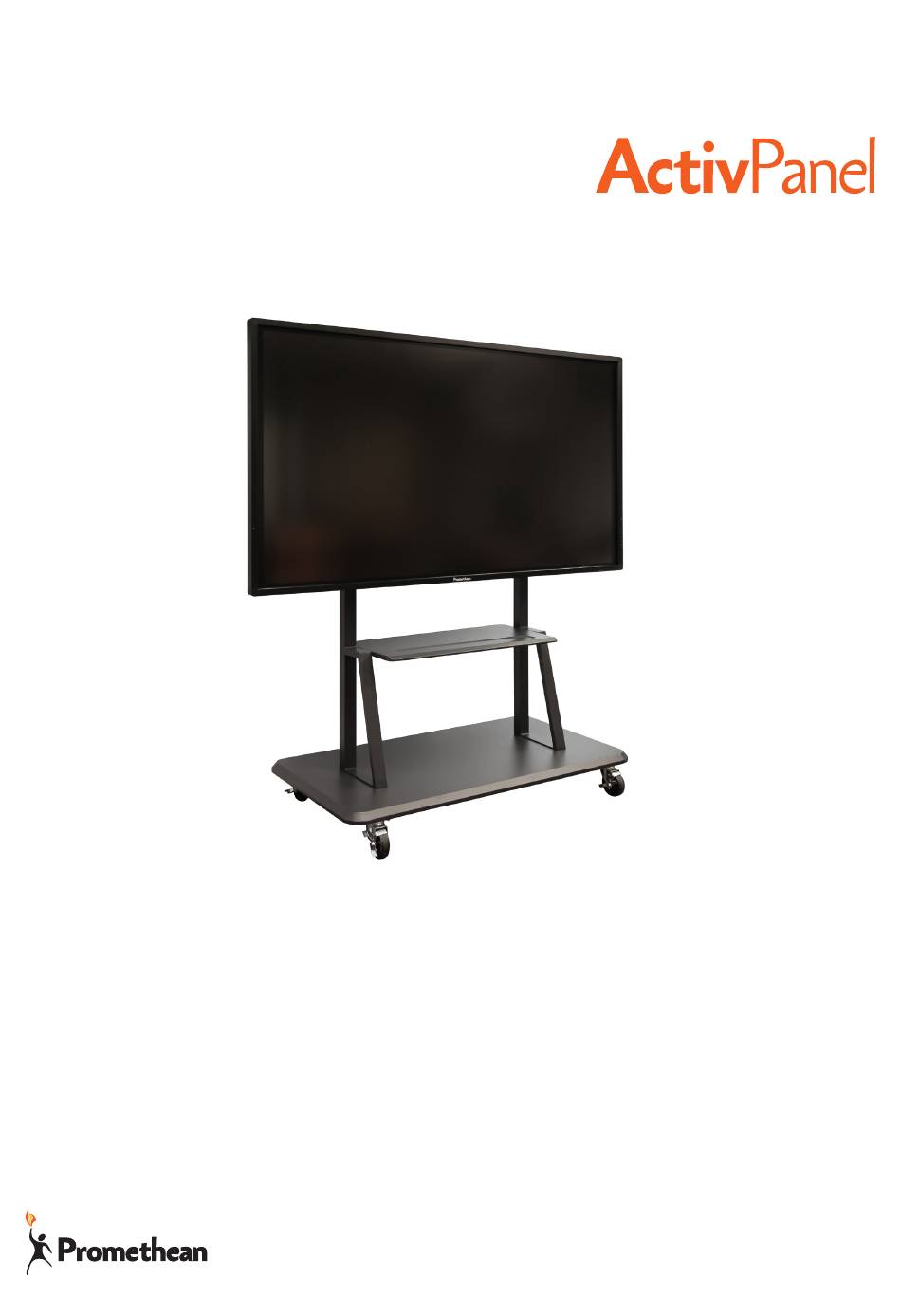

  • Page 1 User Guide TP-1992-UG-V02...
  • Page 2 Please note that the content in this guide is protected under copyright law. Although every care has been taken in the compilation of this guide, Promethean Limited accepts no responsibility for errors or omissions, or for damages resulting from the use of information contained within the following pages.

  • Page 3: Table Of Contents

    Contents Interfaces Setup Controls Operation Touch Cleaning Troubleshooting Compliance Statement...

  • Page 4: Interfaces

    MEDIA PLAYER MEDIA PLAYER MEDIA PLAYER SWITCHED USB HDMI1 HDMI2 HDMI3 HDMI-OUT HDMI4(MHL) MEDIA-USB2 SOURCE SWITCHED USB RS232 IN USB3.0 MEDIA PLAYER RS232 OUT USB2.0 MEDIA PLAYER HDMI HEADPHONES HDMI-OUT SPDIF TOUCH-USB HDMI(MHL) SOURCE SWITCHED USB MEDIA-USB ActivPanel User Guide...
  • Page 5 HDMI4(MHL) SWITCHED USB MEDIA-USB2 USB3.0 USB3.0 USB2.0 SPDIF MEDIA PLAYER MEDIA PLAYER MEDIA PLAYER SOURCE SWITCHED USB RS232 IN HDMI(MHL) RS232 OUT USB3.0 MEDIA PLAYER TOUCH-USB USB2.0 MEDIA PLAYER SOURCE SWITCHED USB HEADPHONES HDMI SPDIF HDMI-OUT MEDIA-USB ActivPanel User Guide...
  • Page 6 MEDIA PLAYER MEDIA PLAYER MEDIA PLAYER SWITCHED USB HDMI1 HDMI2 HDMI3 HDMI-OUT HDMI4(MHL) MEDIA-USB2 SOURCE SWITCHED USB RS232 IN USB3.0 MEDIA PLAYER RS232 OUT USB2.0 MEDIA PLAYER HDMI HEADPHONES HDMI-OUT SPDIF TOUCH-USB HDMI(MHL) SOURCE SWITCHED USB MEDIA-USB ActivPanel User Guide...

  • Page 7: Setup

    Setup Connections HDMI PC AUDIO Inserting Batteries Remove the battery cover. Insert two AAA batteries into the remote control. Replace the battery cover. ActivPanel User Guide...

  • Page 8: Controls

    Setup Switching On Controls You can control the ActivPanel in two ways: With the buttons on the control panel on the side of the device. • With the buttons on the remote control. • You can access basic controls, as well as On-Screen Display (OSD) menus for adjusting audio and visual settings.
  • Page 9 USB Mode FRZ, Freeze Screen Function Increase (+) / Decrease Volume (-) Channel List Function HOME Function MAIN Menu Power/Standby ON/OFF OK, confirm current selection/operation CURSOR KEYS:UP/DOWN: select item to be adjusted LEFT/RIGHT: adjust value of selected item ActivPanel User Guide...

  • Page 10: Operation

    Controls USB Mode Play Pause Stop Rotate image Previous Item Next Item Back Speed Operation Basic Operations Next/Previous Item. Power /Standby Menus Volume Up/Down Increase/Decrease Select Signal Source value ActivPanel User Guide...
  • Page 11 Contrast Brightness Sharpness Saturation Color Temperature Standard Zoom Mode Full Image Noise Reduction Middle Move Switch /Menu:Exit OK/Source:Select Picture Contrast Brightness Sharpness Saturation Color Temperature Standard Zoom Mode Full Image Noise Reduction Middle Move Switch /Menu:Exit OK/Source:Select ActivPanel User Guide...
  • Page 12 Adjust the balance between left and right track Slide to the left/right to increase the left- track/right-track volume (L50-R50) Low pitch Adjust the bass The bigger value (0-100), the higher bass High pitch Adjust the treble The bigger value (0-100), the higher treble SPDIF output Digital output Off/RAW/PCM ActivPanel User Guide...
  • Page 13 USB Devices Do not remove the USB storage device during the file playing process, or the device or system could • be damaged. The system supports standard USB disks and mobile HDDs under USB1.1, USB2.0 and USB3.0. • ActivPanel User Guide...
  • Page 14 Operation ActivPanel User Guide...

  • Page 15: Touch

    Cleaning Unplug the power cable from the socket before cleaning the ActivPanel. Do not use volatile solvents (such as alcohol, rosin, and toluene) to clean the ActivPanel. These types of chemicals might damage the housing. Cleaning the Bezel And Remote Control Use a 100% cotton cloth or micro-fiber cloth for cleaning.

  • Page 16: Troubleshooting

    This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Promethean hereby declare that the equipment is in compliance with the Low Voltage Directive 2006/95/EC and the Electromagnetic Compatibility Directive 2004/108/EC.
