Copernicus E3IN1 Assembly Manual

3 in 1 interactive easel
Hide thumbs

Advertisement

Quick Links

Download this manual
E3IN1
WARNING
Please Recycle

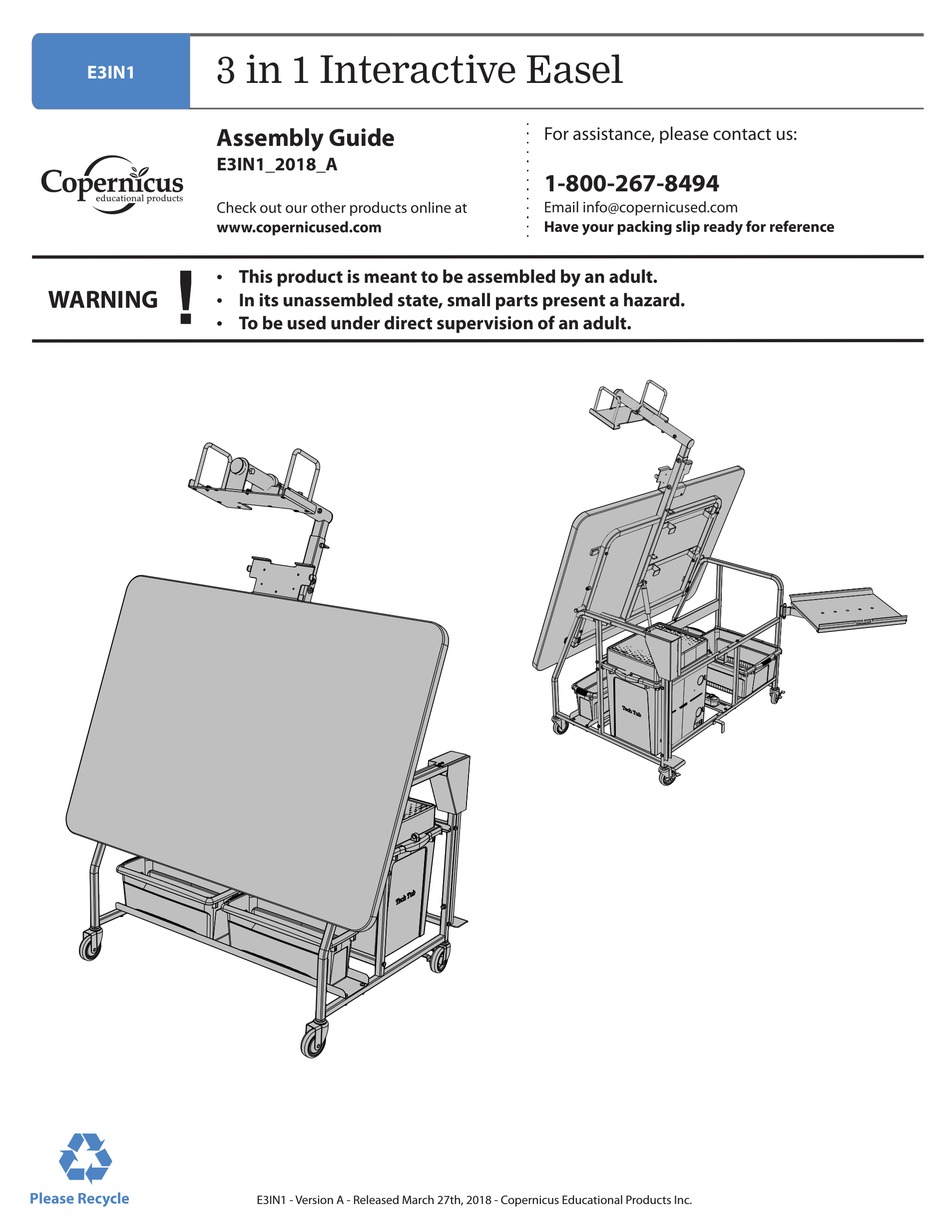

3 in 1 Interactive Easel
Assembly Guide
E3IN1_2018_A
Check out our other products online at
www.copernicused.com
This product is meant to be assembled by an adult.
Ÿ
In its unassembled state, small parts present a hazard.
Ÿ
To be used under direct supervision of an adult.
Ÿ
E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference

Advertisement

loading
Need help?

Need help?

Do you have a question about the E3IN1 and is the answer not in the manual?

Questions and answers

Related Manuals for Copernicus E3IN1

Summary of Contents for Copernicus E3IN1

  • Page 1 This product is meant to be assembled by an adult. Ÿ WARNING In its unassembled state, small parts present a hazard. Ÿ To be used under direct supervision of an adult. Ÿ Please Recycle E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 2 To validate your warranty, submit the ON-LINE form at www.copernicused.com Tech Tub, Frame Component Plastic Tub Warranty Warranty Enter a draw to win a Copernicus Product for your classroom at the same time! Warranty Warranty E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 3 Do not install or use the electrical components of this unit during a lightning storm. Electrical Shock Do not climb on, hang from or suspend objects from any components of your product unless otherwise specified. Climb Hazard E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 4 Touch Bracket Tub Tray Split Black Wire Loom (340641) (51091) (32062) (25505) E3IN1-1: Laptop Tray Projector Mount Projector Arm 6 outlet Power Strip (33100) (32070) (51092) (25515) E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 5 1/4” - 0.75” (430321) Hook & Loop (430039) Straps (43321) 5/16-18 x 2.5” 3/8” Lock Nut (4302381) (430122) 5/16” - 1.75” M4 Lock Washer (430235) (430100) E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 6 My projector isn’t working, who should I call? Please call the reseller that you bought the product from first (reseller information can be found on your packing slip). E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 7 Note Tub Channels face in Note orientation of toward each other Cable Hook Note the orientation of Tub Channel with small tab on top Note orientation of Cable Hook E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 8 Side Frame - Right (51090R) 2-Person Task Attach the Side Frame - Right to the assembly components from Step 1 Note: Do not fully tighten hardware E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 9 Left (51090L) Attach the Side Frame Assembly - Left to the assembly components from Step 2 Fully tighten hardware. Note: Tighten all hardware from previous steps E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 10 Fit Cover Over Corner of Frame with Spring Align Holes on Cover with Holes on Frame Push Spring Cover Lid into Closed Position Fasten Covers to Frame in Closed Position E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 11 Note Position of Locking Casters versus Non-Locking Casters. FRONT Ensure Locking Casters are installed on the back of unit Push Casters in until you hear a SNAP! E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 12 Actual Size: You will need: (Not to Scale) Tub Tray (32062) Attach Tub Tray to Front of Frame Fully tighten hardware. E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 13 You will need: (Not to Scale) Tabletop Frame Adjustable wrench or ½” wrench 2-Person Task Install Tabletop Frame to Pivots on Side Frames Fully tighten hardware. E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 14 Assembled Hardware Note: For the next step you will need to change between Table and Easel mode. You can do this by pressing down on foot pedal. E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 15 Hint: Press in on the bottom of Tabletop Frame to help align the bottom of Cylinder for installation. Attaching bottom of Gas Cylinder During Assembly Assembled Hardware E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 16 Tabletop Frame is under pressure and will spring up when the foot pedal is pressed. Tabletop Frame is under pressure and will spring up when the foot pedal is pressed. LEFT SIDE RIGHT SIDE E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 17 Attach Tabletop to Frame Line up holes on tabletop with frame and install WARNING: Tabletop Frame is under pressure and will spring up when the foot pedal is pressed. E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 18 Press Pedal down to change pressing the foot pedal and slowly between Table and Easel Mode raise the tabletop into easel mode. Ensure back casters are locked. E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 19 You will need: (Not to Scale) Epson 595 Wi Touch Module (Not supplied with E3IN1) Install Touch Module Attach the Epson Touch Module to the magnetic bracket face E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 20 Press Pedal down to change between Table and Easel Mode Ensure back casters are locked. After completing this step, raise the Table Top Frame into Easel mode for NEXT STEP E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 21 STRIP BEFORE UNPLUGGING FROM OUTLET. Slip cable ties though slots on Power Strip tray and tighten around Power Strip avoiding any outlets. Wrap excess cord around hooks on frame. E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 22 You will need: (Not to Scale) Small Tub Base Tech Tub Open Tub (CC4070) (TEC57) (CC4068) 5 lbs Weight Limit 10 lbs Weight Limit Add Tubs to Frame E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 23 Epson Pen Storage Change unit to Easel mode for cable wiring step. Press Pedal down to change between Table and Easel Mode Ensure back casters are locked. E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.

  • Page 24: Wire Management

    Projector Power Cable VGA Cable When finished routing the wires put wire in USB Cable Wire Loom to keep Laptop Power Cable cables in place. Touch Module Cable E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 25 Step 2 Adjust Image Using Quick Corners In the Settings menu select Keystone. *Note: Some of these images and wording have been taken from the Espon 595Wi Manual E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 26 Fit screen image to table top (as show here with rectangle). *Note: Some of these images and wording have been taken from the Espon 595Wi Manual E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 27 Select the Easy Interactive Function from the Extend menu and select Touch Unit Setup. *Note: Some of these images and wording have been taken from the Espon 595Wi Manual E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 28 Touch Module’s laser diffusion post; this could cause injury to eyesight. *Note: Some of these images and wording have been taken from the Espon 595Wi Manual E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 29 Touch Module to the marker position shown on the projected screen. *Note: Some of these images and wording have been taken from the Espon 595Wi Manual E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 30 After calibration is complete if this is the best result achieved please go back to step 3 and start over with PEN CALIBRATION! E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 31 *Note: Some of these images and wording have been taken from the Espon 595Wi Manual E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 32 Floor Mode Step 11 Rotate Projector Mount Counter Clockwise into Floor Mode. *Note: Some of these images and wording have been taken from the Espon 595Wi Manual E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
  • Page 33 Make sure there are no objects on the image when calibrating the projector. *Note: Some of these images and wording have been taken from the Espon 595Wi Manual E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.

  • Page 34: Interactive Options

    Step 1 – Auto Calibrate Pen (unplug touch module/turn off ) Step 2 – Test Pen in all 4 Corners Step 3 – Calibrate Touch Module (4 calibration screens) Step 4 – Test Finger Touch E3IN1 - Version A - Released March 27th, 2018 - Copernicus Educational Products Inc.
