Maintenance Instructions

Engine/PTO Belt

1. To remove the engine/PTO belt:
a. Loosen and remove idler tension bolt and
jam nut.
b. Relax belt by depressing idler arm.
c. Roll the belts off the pulley and remove the
belts.
2. Reverse the removal procedure to replace the
engine belts.
50

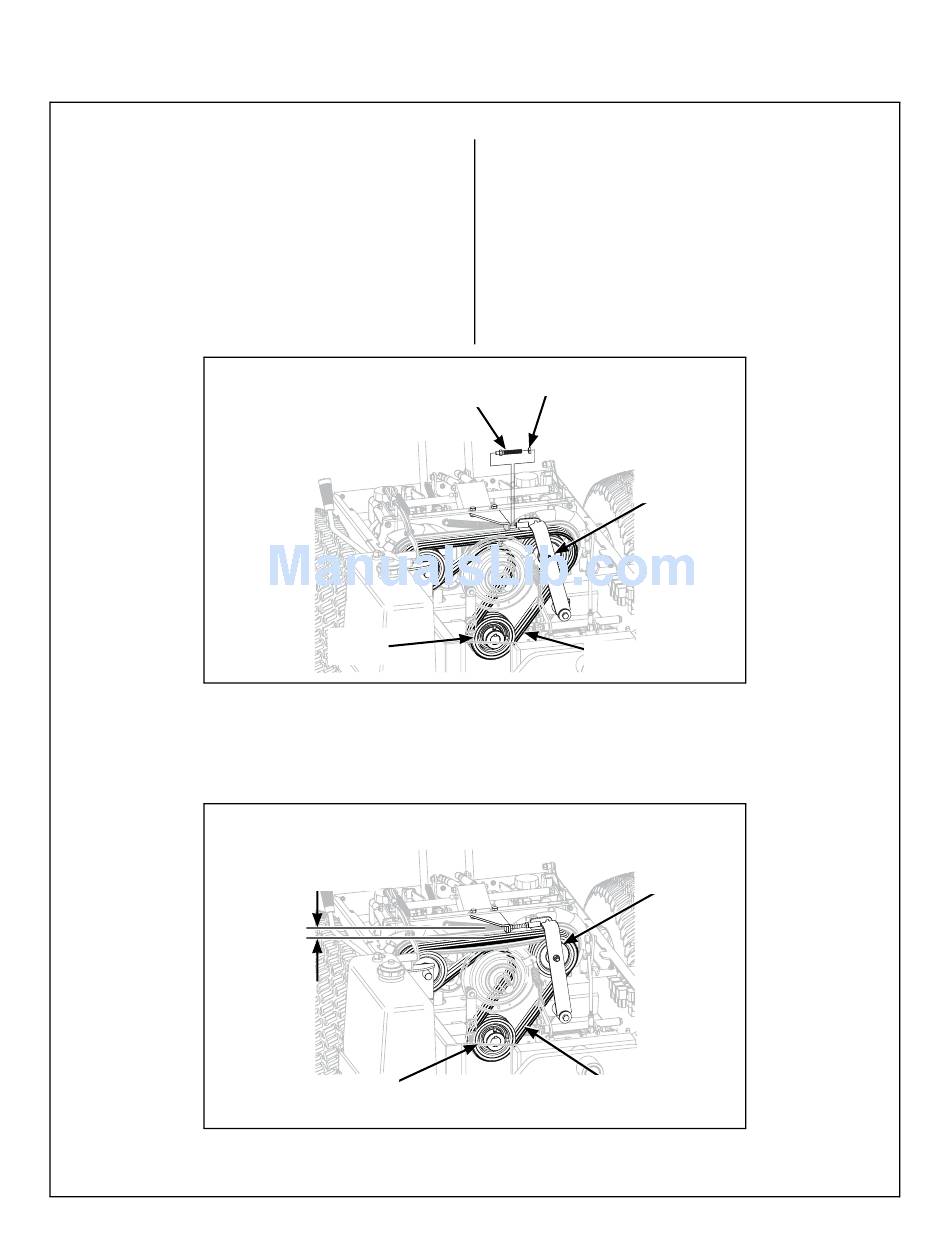

Idler Tension
PTO
Pulley
Engine/PTO Belt (Disengaged)
(Engine Hidden for Clarity)
1/2 in. deflection
PTO
Pulley
Engine/PTO Belt (Engaged)
(Engine Hidden for Clarity)
Jam Nut
Bolt
Engine/PTO
Belts
Engine/PTO
Belts
REPLACING/REPAIRING
Idler Arm
Idler Arm
