CLEANING

Engine Air Cleaner System

Cummins/Fleetguard OptiAir™ Air Cleaner
A remote mounted Cummins/Fleetguard OptiAir™
air cleaner provides the air filtering function. The
paper filter element slides over an outlet tube inside
the air cleaner canister with radial sealing action,
eliminating the possibility of dust leaks due to
improper filter installation. Intake design, internal
baffling, and a dust ejection valve provide dust
separation and automatic precleaning action. Daily
or frequent servicing of the air cleaner is not
required. Use the air restriction gauge on the air
cleaner outlet to indicate when the air filter needs
servicing -- a red flag will appear when the filter is
overly restricting airflow into the engine.
IMPORTANT: Use only Cummins/Fleetguard air
filter elements for replacement (Walker 2090-1 or
2090-3). Aftermarket filters may not seal properly or
filter efficiently.
Cummins/Fleetguard
Air Cleaner
Air Restriction
Gauge
Flex
Hose
Hose
Clamp
Safety
Air Cleaner
Filter
Band
Air Cleaner
Cartridge

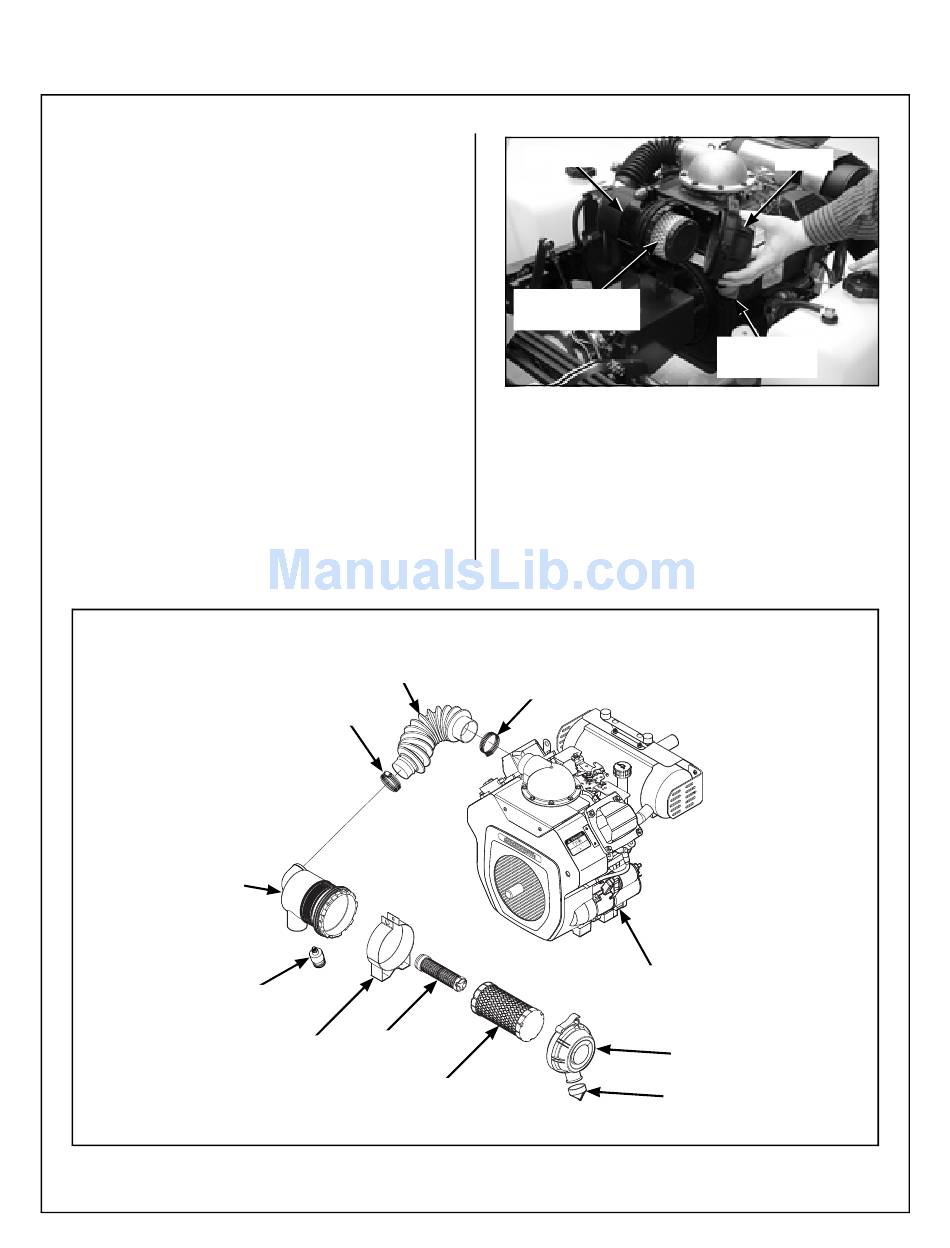

Engine Air Cleaner System Components
Canister
OptiAir™
Filter Element
Air Cleaner Components
(shown with cover being removed)
IMPORTANT: The Cummins/Fleetguard air cleaner
uses a dry paper-type air filter element. NEVER
apply oil to the paper element.
Hose
Clamp
Engine
Cummins/Fleetguard
Air Cleaner Cover
Dust Ejection
CLEANING
Cover
Dust Ejection
Valve
Valve
41
