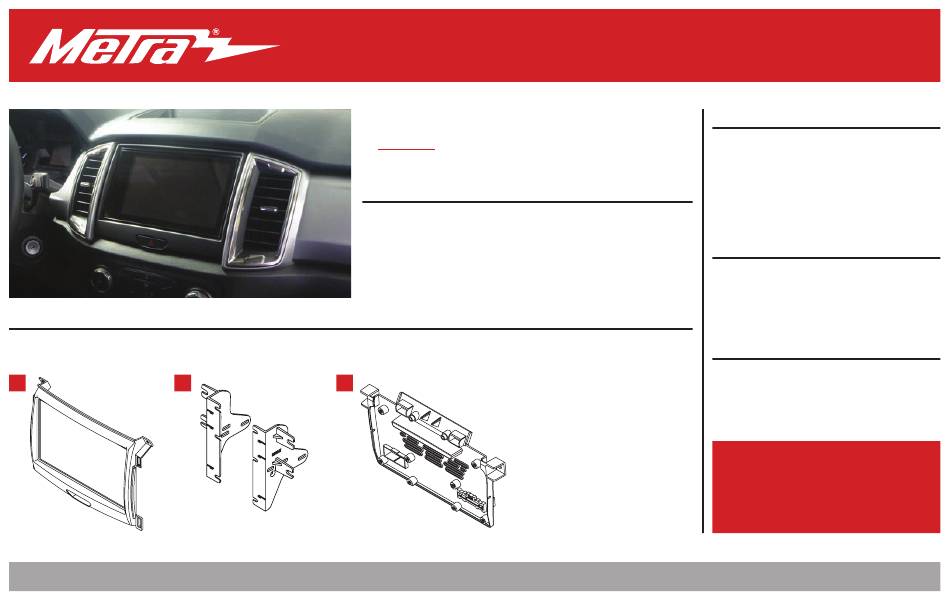

KIT COMPONENTS
• A) Radio bezel • B) Radio brackets • C) Back panel
A
B
Metra. The World's Best Kits.
®
Ford Ranger †
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Painted scratch-resistant matte black
† With 4.2-inch display screen
C
MetraOnline.com
2019-Up
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
108-FD9B
I N S TA L L AT I O N I N S T R U C T I O N S
Patent Pending
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation ...................................................4-5
Kit Assembly ..........................................................6
WIRING & ANTENNA CONNECTIONS (sold separately)
Wire harness: • AXTC-FD2
Antenna adapter: • 40-EU10
TOOLS REQUIRED
• 9/32" socket wrench • Panel removal tool
• Phillips screwdriver
• T-6 & T-8 Torx screwdriver
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
