Trampoline Mat Assembly
FITTING THE TRAMPOLINE MAT / MONTERING AV STUDSDUKEN /

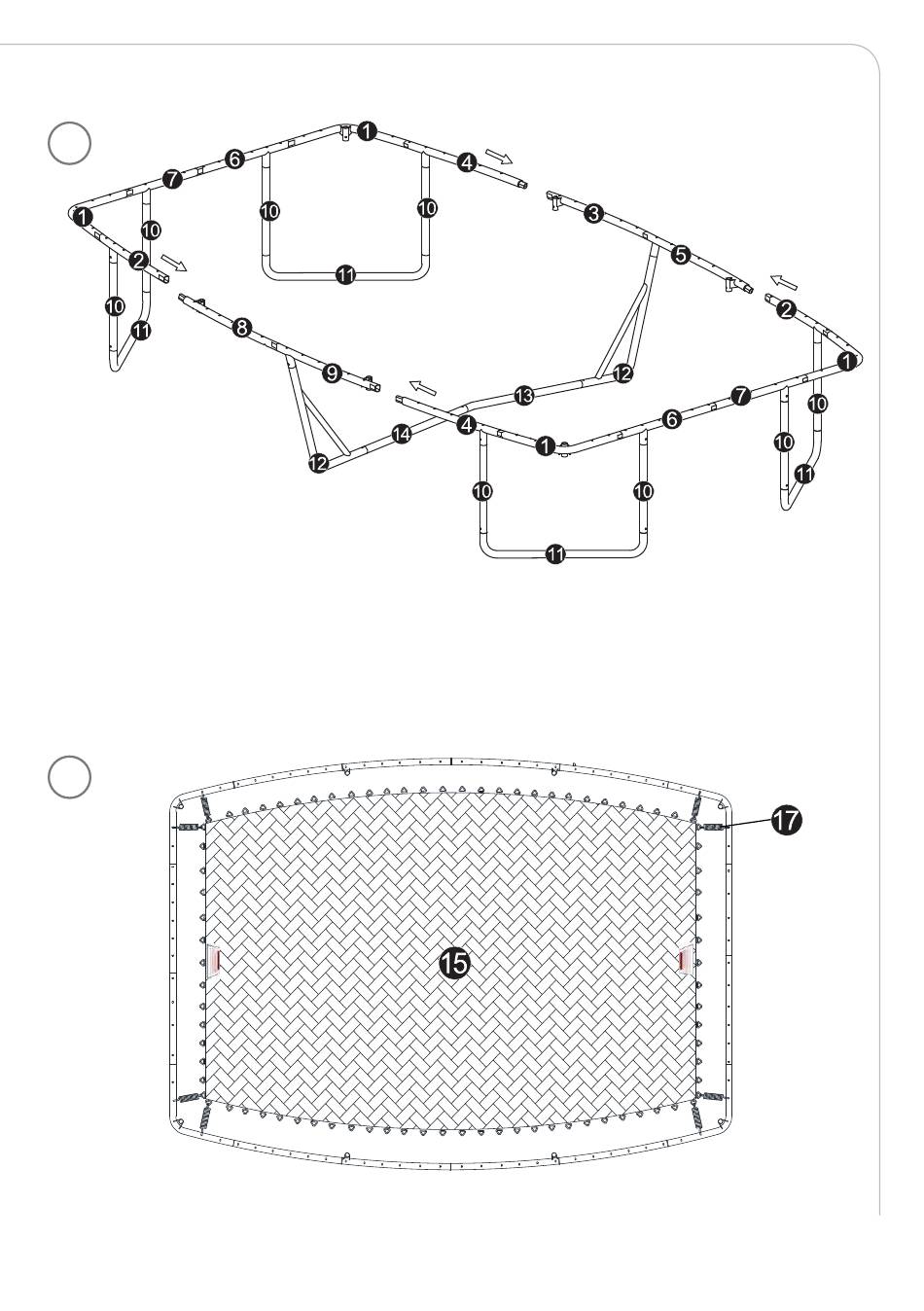

Step 13– Spring Assembly
Place the Trampoline Mat (# 15) flat on the ground inside the assembled frame with the warning labels facing
MONTERING AV TRAMPOLINEDUKEN / MONTAGE DES SPRUNGTUCHS /
up. Begin by attaching Springs (# 17) to the four corners of the mat, hook one end of Spring (# 17) into the
TRAMPOLIININ MATON ASENNUS
Triangle-Ring on the Mat (# 15). Holding the Spring Loading Tool (# D) underhand, pull the other end of the
spring and lock it into the hole on the frame. Please note the two ends of the spring are different and must be
installed as shown in the diagram below. Then continue to attach springs in the sequence.
