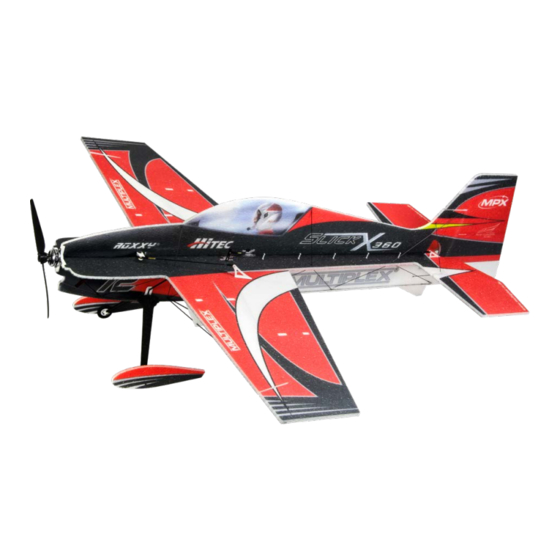

Summary of Contents for Multiplex Slick X360

  • Page 1 Conseils de sécurité 14 - 15 Accessoires et outils, nomenclature 16 - 17 Notice de montage 18 - 19 Illustrations 20 - 23 Erhältliche Varianten Available versions # 1-01631 Version disponible © Copyright by MULTIPLEX Modellsport GmbH & Co. KG 2019...
  • Page 2 Auch wenn das Modell vorschriftsmäßig und unter Beachtung aller Sicherheitsaspekte betrieben wird, besteht immer ein Restrisiko. Die Multiplex Modellsport GmbH & Co. KG ist nicht haftungspflichtig für Verluste, Beschädigungen und Folgeschäden jeder Art, die aufgrund Eine Haftpflichtversicherung (Modellflugzeug mit Antrieb) ist daher falschen Betriebs, nicht bestimmungsgemäßer Verwendung oder...
  • Page 3 Die Anleitungen unserer Produkte dürfen nicht ohne aus- Materialversagen und Abstürzen führen. drückliche Erlaubnis der Multiplex Modellsport GmbH & Co. KG (in schriftlicher Form) - auch nicht auszugsweise in Print- oder • Feuergefahr durch Fehlfunktion der Elektronik: Akkus sind sicher elektronischen Medien reproduziert und / oder veröffentlicht...
  • Page 4 Länge über alles 918mm Fluggewicht 195g Steuerkanäle RC-Funktionen Höhenruder, Seitenruder, Querruder, Motor Flugzeit 6 min Stückliste Stück Bezeichnung Material Abmessungen Slick X360 Indoor Edition Bauanleitung Papier DIN A-4 Reklamationsmeldung Modelle Papier DIN A-5 Rumpfoberteil Fertigteil Rumpfunterteil Fertigteil Rumpfmittelteil Fertigteil Seitenleitwerk Fertigteil Höhenleitwerk...
  • Page 5 Stückliste Stück Bezeichnung Material Abmessungen Motorspant Kunststoff Fertigteil Querruderhebelverlängerung Kunststoff Fertigteil Achsbefestigungswinkel L Kunststoff Fertigteil Achsbefestigungswinkel R Kunststoff Fertigteil Fahrwerksverstärkungen Kunststoff Fertigteil Radverkleidungshalter Kunststoff Fertigteil Abstandshalter für Rad Ø 4mm Kunststoff Fertigteil Rad Ø 27mm Kunststoff Fertigteil Schraube Stahl M2 x 10mm Ruderhorn Seitenruder Kunststoff Fertigteil...
  • Page 6 Bauanleitung Wichtiges vor dem Bau Abb. 3 Kleben Sie die Kohlefaserstäbe zur Verstärkung in die Rumpf- Überprüfen Sie die gelieferten Teile auf ihre Vollständigkeit mittels der Unterseite und die untere Rumpfhälfte. Kleben Sie außerdem die EPP- Stückliste auf Seite 4 und 5. Kohlestabhalterungen auf die Tragflächenunterseite und die 3D-Druck Fahrwerksverstärkungen auf die untere Rumpfhälfte.
  • Page 7 Kleben Sie den Motorspant an den Rumpf. Kontrollieren Sie auch die Funktion aller Ruder! Abb. 11 Wir, das MULTIPLEX -Team, wünschen Ihnen beim Bauen und später Schrauben Sie den Motor (ROXXY C27-13-1800kV # 1-00018) vorne beim Fliegen viel Freude und Erfolg.
  • Page 8 Third-party liability insurance (powered model airplane) is therefore mandatory. If you are a member of a group or association, you might be Multiplex Modellsport GmbH & Co. KG is not liable for loss, damage able to take out the appropriate insurance there.
  • Page 9 This model is not made of Styrofoam™! Therefore, adhesions using white glue, polyurethane or epoxy are not possible. These glues only stick MULTIPLEX model kits are subjected to constant material inspection superficially and may peel off in severe cases. Only use cyanoacrylate/...
  • Page 10 Accessories and tools Required accessories Required tool • 1x Hitec Indoor servo kit 2x HS-40 & 1x HS-65HB # 1-01009 • Small cross-tip screwdriver # 55808 • 1x Receiver RX-5 light M-LINK 2.4 GHz • Small slotted screwdriver # 1-00016 •...
  • Page 11 List of parts Qty. Name Material Dimensions Bulkhead Plastic Finished component Aileron horn extension Plastic Finished component Axle retaining bracket L Plastic Finished component Axle retaining bracket R Plastic Finished component Undercarriage reinforcement Plastic Finished component Wheel cover holder Plastic Finished component Spacer for Ø...
  • Page 12 Assembly instructions Important info before you start assembling Fig. 3 To ensure reinforcement, glue the carbon fiber rods into the underside Use the list of components on page 4 and 5 to check the completeness of the fuselage and into the lower fuselage section. Further, glue the of the components supplied.
  • Page 13 Use the screws from the small parts bag in the motor accessory pack. Use hook-and-loop tape to attach the speed controller The MULTIPLEX team wishes you lots of enjoyment and success in (ROXXY BL Control 715 BEC # 1-01050) to the lower fuselage section.
  • Page 14 Un risque résiduel persiste même en cas d’utilisation conforme et de respect de toutes les consignes de sécurité. Multiplex Modellsport GmbH & Co. KG décline toute responsabilité en cas de perte, dommages et dommages consécutifs de toute nature, dus à une Raison pour laquelle vous devez obligatoirement souscrire une assurance utilisation erronée, à...
  • Page 15 électroniques, est interdite sans l’autorisation expresse (écrite) Multiplex Modellsport GmbH & Co. KG. le variateur et les batteries. Conseils de sécurité pour les kits de construction MULTIPLEX Familiarisez-vous avec le kit d’assemblage ! Les kits d’assemblages MULTIPLEX sont soumis pendant la production Ce modèle n’est pas réalisé...
  • Page 16 Accessoires et outils Accessoires requis Outils requis • 1x Kit servos Hitec Indoor Set 2x HS-40 & 1x HS-65HB Réf. 1-01009 • Petit tournevis cruciforme Réf. 55808 • 1x Récepteur RX-5 light M-LINK 2,4 GHz • Petit tournevis plat Réf. 1-00016 •...
  • Page 17 Nomenclature Qté Désignation Matière Dimensions Support moteur Plastique Complet Rallonge tringle d’aileron Plastique Complet Équerre de fixation d’axe G Plastique Complet Équerre de fixation d’axe D Plastique Complet Renfort train Plastique Complet Support carénage roue Plastique Complet Bague d’espacement roue Ø 4mm Plastique Complet Roue Ø...
  • Page 18 Notice de montage Points importants avant le montage Fig. 3 Collez les tiges de renfort en fibre de carbone sur le bas du fuselage et Veuillez vérifier qu’aucune pièce ne manque à l’aide de la nomenclature sur la moitié inférieure du fuselage. Collez aussi les supports de tiges en figurant en pages 4 et 5.
  • Page 19 Fixez le variateur (ROXXY BL Control 715 BEC # 1-01050) dans la partie inférieure du fuselage avec une bande L’équipe MULTIPLEX vous souhaite beaucoup de plaisir et de succès dans Velcro. Fixez aussi le récepteur et l’accu dans le fuselage avec un morceau la construction et le pilotage de votre modèle.
  • Page 20 Carbon parts 1,5mm round 3x 0,5mm flat 2,5 x 1,5mm flat 0,8mm round 1,2mm round 2x 1,5 x 25mm 2x 3 x O,5 x 14Omm 2x 2,5 x 1,5 x 233mm 14x O,8 x 5OOmm (1-14) 4x 1,2 x 3OOmm 2x 1,5 x 2OOmm 1x 3 x O,5 x 28Omm 1x O,8 x 69Omm...
  • Page 21 Abbildungen · Illustrations · Illustrazioni Abb. / Fig. 4 Abb. / Fig. 5 Abb. / Fig. 6 Abb. / Fig. 7...
  • Page 22 Abbildungen · Illustrations · Illustrazioni Abb. / Fig. 8 Abb. / Fig. 9...
  • Page 23 Abbildungen · Illustrations · Illustrazioni Abb. / Fig. 10 Abb. / Fig. 11...
