Instructions for use and installation
EN

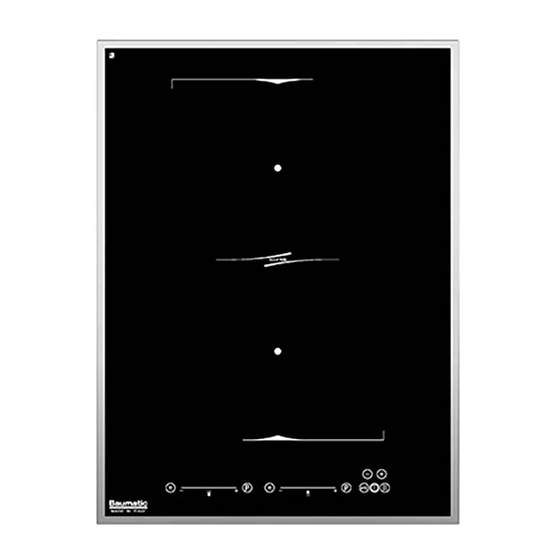

Induction hob
LIB30725
R00-090316
BMEH381I
BMEH62I

Advertisement

loading

Related Manuals for Baumatic BMEH381I

Summary of Contents for Baumatic BMEH381I

  • Page 1 Instructions for use and installation Induction hob BMEH381I BMEH62I LIB30725 R00-090316...

  • Page 3: Table Of Contents

    Dear customer! This appliance is intended for household use only. Materials used for packaging are nature friendly and may be recycled, deposited or destroyed without any threats to the environment. In order to recognize these features, all packing materials are marked with relevant symbols. Once your appliance has become obsolete and you do not intend to use it any longer, take adequate care not to litter the environment.

  • Page 4: Important Warnings

    • The appliance may be built-in and connected to the power supply only by a qualified IMPORTANT technician. WARNINGS • The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

  • Page 5: Installation

    Prior inserting the oven, it is necessary to remove the rear kitchen element panel in the area of the oven opening.  Equally, the front part of the element must have an opening of no less than 5 mm.  BMEH381I BMEH62I 380mm 580mm...

  • Page 6: Connection To The Power Supply

    Upon the completion of installation switch all the hotplates on for about 3 minutes to check the proper functioning. Installation diagram Connection must be carried out by means of: - cables, model H05RR-F - cables, model H07RN LIVE BROWN EARTH GREEN / YELLOW NEUTRAL BLUE BMEH381I BMEH62I...

  • Page 7: Tecnical Informations

    TECNICAL INFORMATION BMEH381I BMEH62I Rated voltage 220-240V~ ; 50/60 Hz 220-240V~ or 380-415V 2N~ ; 50/60 Hz Total power 3700 W 7400 W 18,4x22 cm / 2100 W (P=3700 W) P= EXTRA POWERFUL SETTING • Ceramic glass hob is fitted with three or four hotplates. Hob surface is completely flat and Hotplate function smooth, without edges to accumulate dirt.
  • Page 8 At the moment you remove the dish from the hotplate, power is suspended. If you place smaller dish upon the hotplate and it is recognized, the hotplate will only use the amount of energy required to heat the dish according to its size. Hotplate may be damaged if: •...

  • Page 9: Operation

    OPERATION • After turning the ceramic glass hob on all displays come on for a moment. The hob is ready for operation. • The hob is fitted with electronic sensors which are switched on if you touch the relevant circle for at least one second.
  • Page 10 • The hob is switched off by pressing the main (A) sensor. Switching the hob off • The sound signal beeps and all indicators go off, except for those hotplates which are still hot and display the warning “H” sign as an indication of the remaining heat. •...
  • Page 11 After switching on, the extra power is activated for 10 minutes then automatically switches back on to the maximum normal level 9. During the time extra power is activated, the power of other hotplates is limited. This is indicated on the power display by intermittently flashing the selected cooking level and limited power for a few seconds.
  • Page 12 ▪ If the special function key is pressed a second time “warming” level two is activated. The second LED is activated. ▪ If the special function key is pressed a third time “simmering” level three is activated. The third LED is activated. If the special function key is pressed a fourth time the warming function ends.
  • Page 13 Operation time can be set for each hotplate separately. Changing pre-set cooking time • Cooking time can be changed anytime during the operation. • Simultaneously press sensor (E) and (D). • Simultaneously press (D + E) as many times as necessary, to select the zone of which you want to adjust the timer.

  • Page 14: Safety Functions And Error Display

    Switching the alarm off When the pre-set time expires a beep is heard which you can either turn off by touching the (D) or (E) sensors, or leave it to turn off automatically after 2 minutes. If you want to switch the timer off prior expiry of pre-set time: •...

  • Page 15: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Ceramic glass hob should be cleaned only when completely cooled down, preferably after each use, otherwise even the slightest stains remaining after cooking may burn into the hob surface with each following use. For regular maintenance of ceramic-glass hob use special cleansing agents, produced in such way to create protective film upon the surface.
  • Page 16 ‫المملكة العربية السعودية‬ ‫شركة عوض بادي نحاس التجارية المحدودة‬ ‫حي الروضة, خلف شارع صاري, جدة‬ 21463 ‫جدة‬ 11529 ‫صندوق بريد‬ : ‫هاتف‬ +966 2 2560888 +966 2 256133 : ‫فاكس‬ +966 2 2560555 ) ‫خدمة العمالء ( صيانة و قطع غيار‬ : ‫هاتف‬...
  • Page 17 ‫الزجاج‬ ‫سطح‬ ‫ال‬ ‫السيراميك و‬ ‫تنظيف وصيانة‬ ‫يجب تنظيف الفرن السيراميك والزجاج فقط عندما تبرد تماما ألسفل ، ويفضل بعد كل استخدام ، وإال حتى ادنى درجات‬ ‫تحرق في الفرن على السطح مع كل استعمال التالي‬ ‫البقع المتبقية بعد الطهي قد‬ ‫لصيانة...
  • Page 18 SAFETY FUNCTIONS AND ERROR DISPLAY ERROR CODE ERROR DESCRIPTION INSTRUCTION MANUAL E03 + Permanent use of keys; Control unit cuts Cleaning of the operational surface. If the continuous off after 10 sec. Water or cooking utensils problem persists, Contact authorized center for on the glass above the control unit.
  • Page 19 Alarm Function Timer can be used as alarm also if it is already employed in timer control of one of the hotplates. Timer setting With the hob off: • Touch the sensor (A) to activate the cooking hob. • Simultaneously press sensor (E) and (D) to activate the alarm. The timer's display shows “0.00”...
  • Page 20 Timer Use of timer facilitates cooking by setting the time of hotplate operation. Turning timer on • The cooktop must be turned on and the zone where you want to set the timer must be working. • Simultaneously press sensor (D) and (E), the timer's display shows “0.00”, and the LED to the right of the display, of the first active cooking zone from the left, lights on.
  • Page 21 • If in 10 uninterrupted minutes no cookware is detected on one of the two elements, the bridge function is automatically deactivated, the uncovered cooking element is switched off and the covered cooking element remains as the single cooking element switched on with the set cooking level.
  • Page 22 Glass ceramic hob also features remaining heat indicator “H”. Hotplates are not heated Remaining heat indicator directly, but through return heat radiating from the dish. As long as the symbol “H” is on after the hotplate was switched off, the remaining heat may be used for warming up food or for melting.
  • Page 23 • Selected hotplate must be activated. Switching hotplates off • By touching the slide sensor (F) at the start, bring the power setting to “0”. Short beep confirms the OFF position. • The hob is switched off by pressing the main (A) sensor. Switching the hob off •...
  • Page 24 OPERATION • After turning the ceramic glass hob on all displays come on for a moment. The hob is ready for operation. • The hob is fitted with electronic sensors which are switched on if you touch the relevant circle for at least one second. •...
  • Page 25 ‫اختبار المغناطيس‬ ‫أطباق فقط حيث المغناطيس العصي إلى أسفل هي‬ .‫استخدام المغناطيس الصغيرة لمعرفة ما إذا قاع الطبق هو المغناطيسي‬ .‫مناسبة ألغراض الطهي التعريفي‬ ‫طبق االعتراف‬ ‫حتى لو كانت هناك أي األطباق على موقد ، أو صحن قطره أصغر من‬ .‫واحدة...
  • Page 26 ‫المعلومات‬ ‫تقنية‬ BMEH381I BMEH62I ‫تصنيف الفولت‬ 220-240V~ ; 50/60 Hz 220-240V~ or 380-415V 2N~ ; 50/60 Hz ‫الطاقة الكاملة‬ 3700 W 7400 W 18,4x22 cm / 2100 W (P=3700 W) ‫اضافية‬ ‫اإلعداد‬ ‫قوته‬ ‫بلغت‬ ‫المبدأ‬ ‫يعمل‬ ‫موقد‬ ‫من‬ ، ‫تماما وعلى نحو سلس‬...
  • Page 27 ‫بها‬ ‫االتصال‬ ‫يتم‬ ‫قد‬ ‫الرسم التخطيطي‬ ‫تثبيت‬ ‫األصفرواألخضر؛‬ ‫التأريض‬ ‫مع كابل‬ ‫الصدد، طراز‬ ‫المطاط‬ ‫مغلفة‬ ‫كابالت‬ H05RR .‫األصفرواألخضر‬ ‫التأريض‬ ‫مع كابل‬ ‫الصدد، طراز‬ ‫المطاط‬ ‫مغلفة‬ ‫كابالت‬ H07RN ‫بني‬ ‫خط حامي‬ ‫أصفر / أخضر‬ ‫خط أرضي‬ ‫أزرق‬ ‫خط محايد‬ BMEH381I BMEH62I...
  • Page 28 ‫عنصر‬ ‫إزالة لوحة‬ ‫فمن الضروري‬ ، ‫الفرن‬ ‫قبل‬ ‫إدراج‬ ‫ما ال يقل عن‬ ‫افتتاح‬ ‫لها‬ ‫العنصر‬ ‫األمامي من‬ ‫الجزء‬ ‫يجب على‬ ،‫وبالمثل‬ 5MM. BMEH381I BMEH62I 380mm 580mm 510mm 510mm 360mm 560mm 490mm 490mm 45mm 45mm min.50mm min.50mm min.600mm min.600mm ‫الرغوة‬...
  • Page 29 ‫تحذيرات هامة‬ ‫الكهربائي إلى فقط بواسطة فني مؤهل‬ ‫قد تكون مدمجة في الجهاز وتوصيل التيار‬ • ‫مناطق معينة من سطح كووكتوب (المتاخمة للسخانات) حار خالل العملية‬ • ‫منع األطفال من تسكع الجهاز بشكل صحيح وتحذيرهم من خطر الحروق‬ ‫المراقبة المستمرة‬ ‫زيت...
  • Page 30 ‫التعبئة‬ ‫المواد المستخدمة في‬ .‫فقط‬ ‫لالستخدام المنزلي‬ ‫كووكتوب‬ ‫والمقصود‬ ‫والزجاج‬ ‫السيراميك‬ ‫المدمج في‬ ‫عزيزي العميل‬ ‫التعرف على‬ ‫من أجل‬ .‫البيئة‬ ‫أي مخاطر على‬ ‫من دون‬ ‫أو تدميرها‬ ‫إعادة تدويرها، أودعت‬ ‫ودية ويمكن‬ ‫طبيعة‬ ‫هي‬ ‫والتغليف‬ .‫ذات الصلة‬ ‫الرموز‬ ‫مع‬ ‫مواد التعبئة والتغليف‬ ‫جميع‬...
  • Page 32 ‫سطح‬ ‫والزجاج‬ ‫التحكم باللمس السيراميك‬ ‫دليل المستخدم‬ BMEH381I BMEH62I...
