Summary of Contents for Neo Pro BORREGO

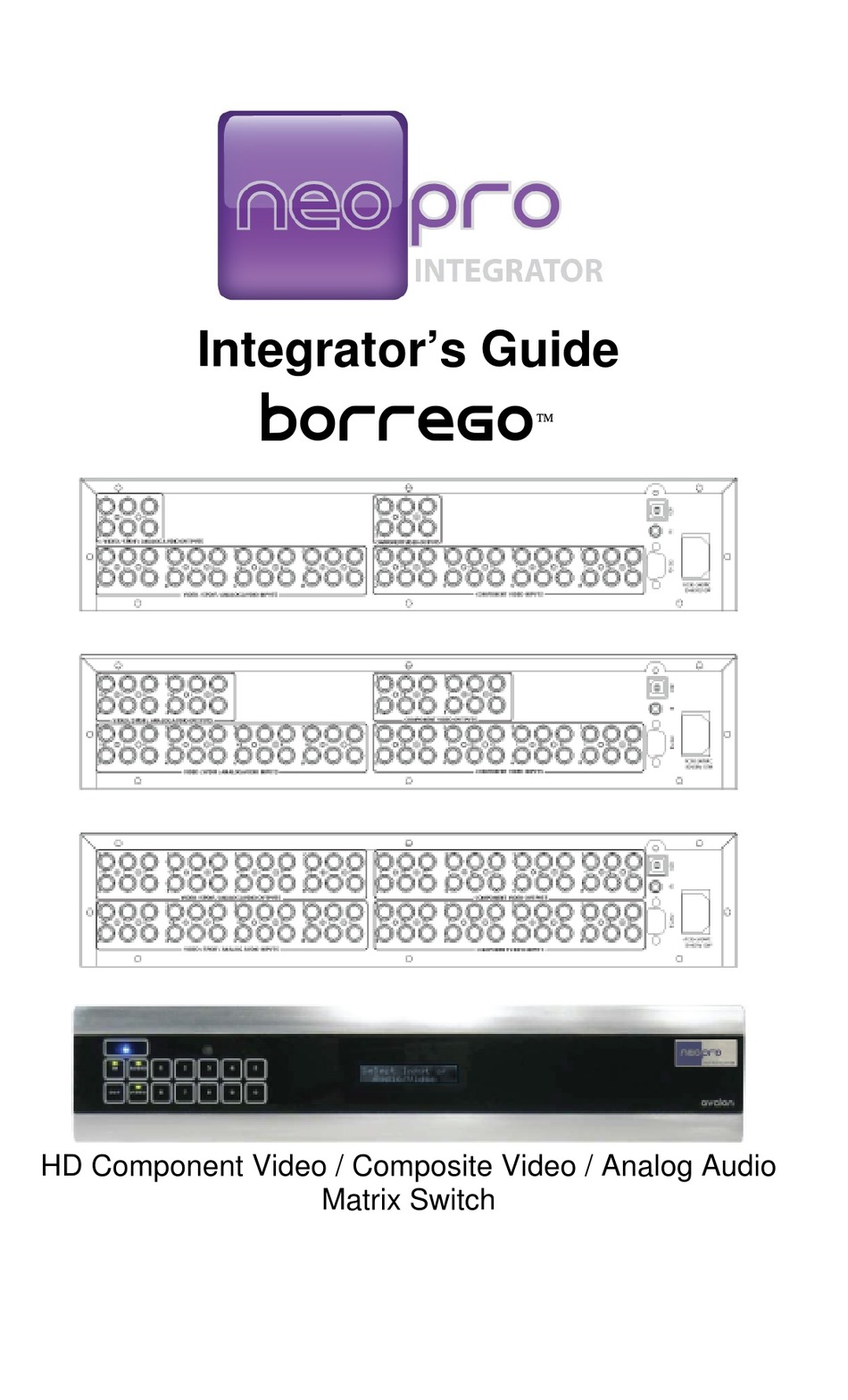

- Page 1 Integrator’s Guide borrego ™ HD Component Video / Composite Video / Analog Audio Matrix Switch...
-
Page 2: Table Of Contents
Controlling from an IR remote control ........8 Setup Menu....................... 10 Care and Maintenance..................12 Restoring to Factory Defaults ................. 12 Specifications ....................13 Performance ................13 Power ..................13 Physical ..................13 2 Year Warranty ....................15 Borrego Matrix Switch User’s Guide (DOC42-00004-D_NeoPro-Borrego.doc) -
Page 3: Introduction
The Borrego Matrix Switch does not require ventilation, so it can have other equipment such as amplifiers stacked on top of it. The Borrego is also equipped with padded feet so it may be stacked on Borrego Matrix Switch User’s Guide (DOC42-00004-D_NeoPro-Borrego.doc) -
Page 4: Unpacking
In either case, to avoid scratches, never slide equipment on top of one another. Unpacking The shipping carton for the Borrego matrix switch will include the following items: 1 – Borrego Matrix Switch 1 –... -
Page 5: Outputs
For the command protocols, please refer to the manual entitled “Integrator’s Guide to Serial Protocols”. If you plan to use the USB communication feature of the Borrego, connect the USB cable to the PC’s USB port (flat end), and the other end (square end) to the Borrego matrix switch. -
Page 6: Rear Panel Ir
AC input. If you are not in North America, you may use your own standard IEC320 power cable with the Borrego matrix switch. The Borrego will detect whatever voltage is supplied (from 90V to 240V AC), and adjust accordingly. -
Page 7: Operation
Operation Overview The Borrego matrix can be thought of as three matrix switches in one box. An 8x2/4/8 component video matrix, an 8x2/4/8 standard def. Composite video matrix, and a 8x2/4/8 stereo analog audio matrix. By default they are controlled together, but by using the audio and video commands mentioned below, they can be controlled separately. -
Page 8: Controlling From An Ir Remote Control
Once one of the three In/Audio/Video buttons have been pressed, the Borrego matrix switch will light all the valid the inputs. The 0 button will also be lit. Selecting 0 as the input number will mute whatever output is selected in the following steps. - Page 9 Control Sequence The command sequence for controlling the Borrego matrix switch from an IR remote control is exactly the same as controlling the switch from the front panel. If you have skipped ahead to this section, please go back and read the section “Controlling from the front panel”...
-
Page 10: Setup Menu
Selecting “Stby” (default) will cause the unit to enter standby mode. Setup:Touchpanel This option will disable the front panel buttons. The default in ON Borrego Matrix Switch User’s Guide (DOC42-00004-D_NeoPro-Borrego.doc) - Page 11 Any of the above selections will be applied instantly. There is no need to save the changes. At any time the user may press exit to return to the home screen, or wait 10 seconds and the home screen will return on it’s own. Borrego Matrix Switch User’s Guide (DOC42-00004-D_NeoPro-Borrego.doc)
-
Page 12: Care And Maintenance
Care and Maintenance The Borrego matrix switch does not require any regular maintenance besides keeping it clean. Never use harsh cleaners or solvents on the Borrego front panel. There are several dusting products for electronics, and standard glass cleaner may be used. -
Page 13: Specifications
90-240V AC 50-60Hz autosensing Input power consumption 8W “On”, 4W “standby” Physical Dimensions 17”W x 3.5”H x 10.75”D Dim. with feet (removable) 17”W x 3.75”H x 10.75”D Unit Weight 8.8 lbs (typical) Shipping weight 13 lbs (typical) Borrego Matrix Switch User’s Guide (DOC42-00004-D_NeoPro-Borrego.doc) - Page 14 Borrego Matrix Switch User’s Guide (DOC42-00004-D_NeoPro-Borrego.doc)
-
Page 15: Year Warranty
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state and country to country. Borrego Matrix Switch User’s Guide (DOC42-00004-D_NeoPro-Borrego.doc) - Page 16 © 2006 NeoPro www.neoprointegrator.com Borrego Matrix Switch User’s Guide (DOC42-00004-D_NeoPro-Borrego.doc)
