Summary of Contents for Vulcan-Hart GCO2C

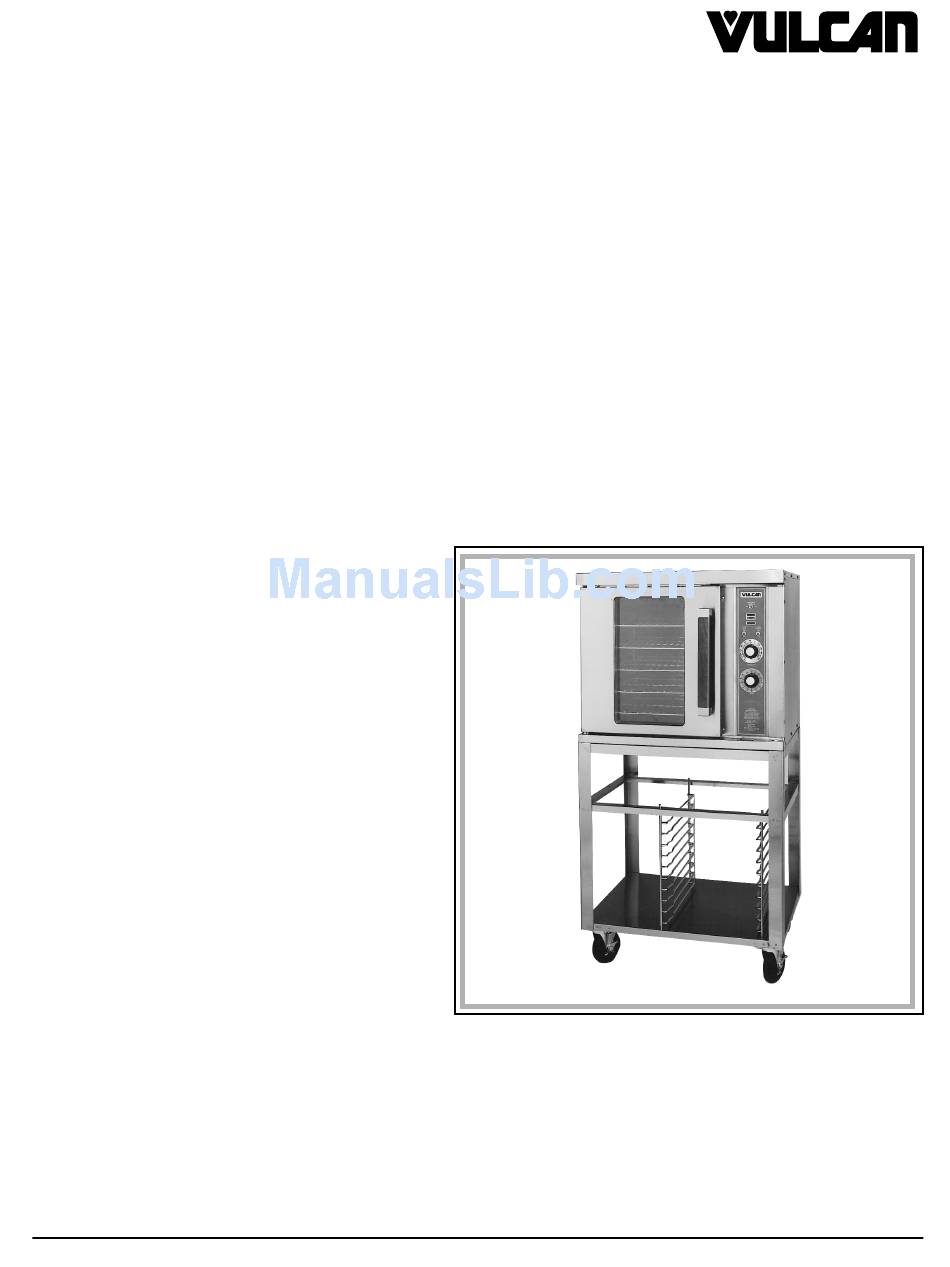

- Page 1 GCO2D & GCO2C GAS CONVECTION OVENS MODEL GCO2D ML-114569 GCO2C ML-114571 VULCAN-HART COMPANY, FORM 30975 Rev. C (Aug. 2000) OPERATION MANUAL P.O. 696, LOUISVILLE, INSTALLATION & MODEL GCO2D 40201-0696, TEL. (502) 778-2791 www.vulcanhart.com...
-
Page 2: Important For Your Safety
PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT. IN THE EVENT OF A POWER FAILURE, DO NOT ATTEMPT TO OPERATE THIS DEVICE. © VULCAN-HART COMPANY, 1996 IMPORTANT FOR YOUR SAFETY – 2 –... -
Page 3: Table Of Contents
Using the GCO2C Oven ......... 13 Error Messages — Model GCO2C ....... . . 13 Controls —... -
Page 4: General
Your Vulcan Gas Convection Oven is produced with quality workmanship and material. Proper installation, usage and maintenance of your oven will result in many years of satisfactory performance. Vulcan-Hart Company suggests that you thoroughly read this entire manual and carefully follow all of the instructions provided. -
Page 5: Installation Codes And Standards
When the oven is mounted on casters, it must be installed with the casters supplied, a connector (not supplied by Vulcan-Hart) complying with either ANSI Z21.69 (latest edition) or CAN/CGA-6.16 (latest edition), and a quick-disconnect device complying with either ANSI Z21.41 (latest edition) or CAN1-6.9 (latest edition). -
Page 6: Assembling Stacked Ovens
ASSEMBLING STACKED OVENS Determine which oven will be on the bottom and place it on its left side, being careful to avoid scratching the finish. Install the four 16 legs, using the 24 bolts and lockwashers provided (6 per leg). (42.5 cm) Remove the two "... -
Page 7: Gas Connection
Do not turn the power supply on until after the gas connections have been made and checked for leaks. – – – e l i GAS CONNECTION For all gas supply connections, pipe joint compound must be resistant to the action of propane gases. The oven is provided with a regulator integral to the gas solenoid valve, and requires no regulator external to the device. -
Page 8: Flue Connection
FLUE CONNECTION Ventilation requirements will vary with each installation and must comply with Vapor Removal from Cooking Equipment , NFPA Standard #96 (latest edition) and with local codes. Considerations to be kept in mind include: • Flue connections should never be made directly to the oven. •... -
Page 9: Lighting The Gco2D Oven
LIGHTING THE GCO2D OVEN Open the manual valve. Turn the MASTER switch ON and turn the thermostat to its maximum setting. Both the ON and HEAT lights should be lit. If the HEAT light is not on, make sure the door is closed. After 5 seconds, the spark ignition system will initiate and the solenoid valve will open, allowing gas flow to the burner for a period of 7 seconds. -
Page 10: Controls - Model Gco2C Built Before October 1999
CONTROLS — MODEL GCO2C Built before October 1999 (Fig. 6) HEAT LIGHT TEMPERATURE KNOB ROAST BUTTON THERMOMETER BUTTON TIME BUTTON START/STOP BUTTON GENTLE BAKE BUTTON THERMOSTAT CONTROL Temperature Display (When not timing product). Displays set cook temperature while the light in the Roast Button is lit. Will be overridden to display actual cavity temperature for 8 seconds when Thermometer Button is pushed. -
Page 11: Timer Control
Roast Button Light (If On and not timing product, indicates the roast mode is selected). • The displayed temperature settings will be for the roast temperature except when the Thermometer Button is lit. • Rotating the Thermostat Knob will change the roast set temperature. •... -
Page 12: Lighting The Gco2C Oven
3. OVEN COOL allows the fan motor to run with the door ajar to speed oven cooling. Gas Valve — When ON, allows gas to flow to the ignition system. LIGHTING THE GCO2C OVEN 1. Turn manual gas valve ON. -
Page 13: Before First Use
1. Push ON / OFF / OVEN COOL switch to OVEN COOL. Leave door ajar while the fan is on to cool the oven. 2. When the oven has cooled sufficiently, turn the ON / OFF / OVEN COOL switch OFF and clean the oven. ERROR MESSAGES — Model GCO2C E-01 High limit error. Contact Vulcan authorized service. E-02 Low limit error. -
Page 14: Controls - Model Gco2C Built After October 1999
CONTROLS — MODEL GCO2C Built after October 1999 R & H OVEN OVEN MODE READY HEATING MENU SELECT PRIMARY SECONDARY SECONDARY ROAST & HOLD START STOP MENU RACK POWER NO IGNITION OVEN COOL PL-53543 1 2 3 4 5 Always displays [HR:Min] when setting the time. -
Page 15: Manually Setting The Temperature And Cook Time
MANUALLY SETTING THE TEMPERATURE AND COOK TIME To Set the Temperature • Press the SET button. Press the TEMPERATURE button; StPt displays to indicate Setpoint. • Use the Up and Down Arrow keys to increase or decrease the displayed Temperature value. •... -
Page 16: Setting The Oven For Roast & Hold
Always Set the Temperature Before Setting the Time • Press the SET button. Press the TEMPERATURE button; StPt displays. Use the Up and Down Arrow keys to increase or decrease the Temperature. To save, press the SET button again. At startup, the display will initially show a Point, the set temperature displays. -
Page 17: Roast And Hold Operation - Model Gco2C
ROAST AND HOLD OPERATION — GCO2C OVEN Roast and Hold cooks the product in two stages. During First Stage Cooking, the oven temperature is regulated by the Roast thermostat for the amount of time set on the Timer. After the lapsed time counts down to 00:00, Second Stage Cooking begins. -
Page 18: Cleaning
This treatment is equally effective for "heat tint" (slightly darkened areas caused by oxidation). Again, remember to rub in the direction of the polish lines. Rinse with clear water and dry with a soft cloth. SUGGESTED COOKING GUIDELINES — MODELS GCO2D AND GCO2C Product Sheet Cakes (5 lb. -
Page 19: For Best Results
Product Prime Rib (20 lb. rare) (9.1 kg) Rolled Roast Beef Veal Roast Boned (15 lb.) (6.8 kg) Stuffed Pork Chops Lamb Chops Steamship Round (80 lb.) (36.3 kg) Meatloaf Hamburger Patties (4 oz.) (113 gr.) Meat Pot Pies Chicken Parts Fish Sticks Product Macaroni &... -
Page 20: Maintenance
To obtain service and parts information concerning this oven, contact the Vulcan-Hart Service Agency in your area (refer to listing supplied with the oven), or Vulcan-Hart Company Service Department at the address or phone number shown on the front cover of this manual.
