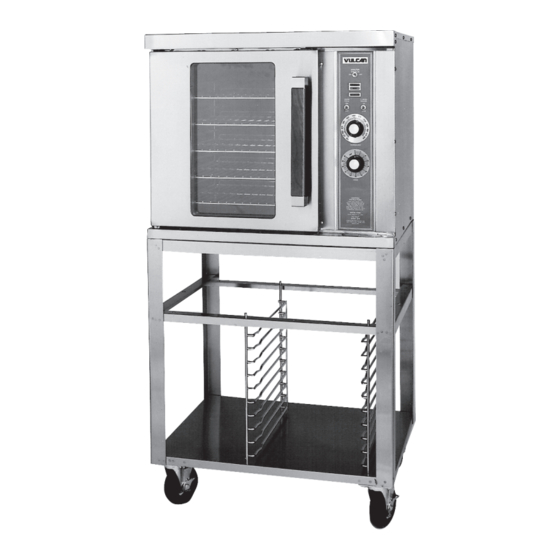

HALF SIZE GAS
CONVECTION OVENS
ML-114569
ML-114571
For additional information on Vulcan-Hart Company or to locate an authorized
parts and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
GCO2D
GCO2C

REPLACEMENT PARTS

P.O. BOX 696, LOUISVILLE, KY 40201-0696
CATALOG OF
MODEL GCO2D
TEL. (800) 814-2028
FORM 30998 Rev. C (Dec. 2008)
