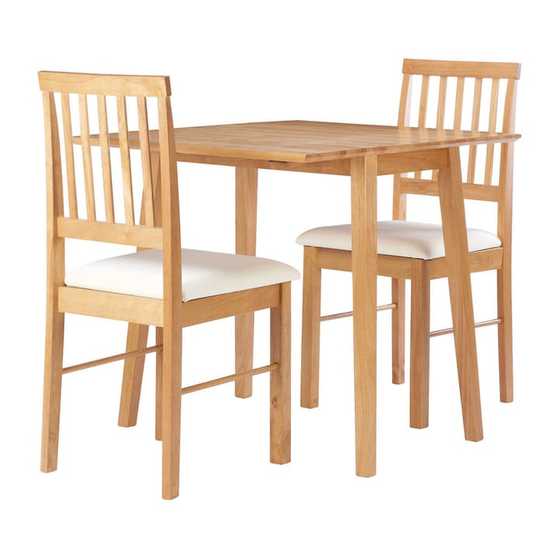

Birlea Drop Leaf Dining Set Assembly Instructions

Table of Contents

Download this manual

Vendor: S000246

ASSEMBLY INSTRUCTIONS

DROP LEAF DINING SET

IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR DROP LEAF

DINING SET.

PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

HEALTH & SAFETY:

DO NOT use this item if any parts are missing, damaged or worn.

DO NOT use this item unless all fixings are secured.

Please keep small parts out of reach of children.

Always use on a level, even surface.

CARE & MAINTENANCE:

Assemble in the room of use.

Periodically check all screws & fixings to ensure they are secure.

DO NOT push the item as this will damage the legs.

Always lift the item with two people to reposition.

Keep any sharp objects away from the item.

www.birlea.com

Page 1 of 4

Table of Contents

Need help?

Do you have a question about the Drop Leaf Dining Set and is the answer not in the manual?

Page 1 Vendor: S000246 ASSEMBLY INSTRUCTIONS DROP LEAF DINING SET IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR DROP LEAF DINING SET. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY: DO NOT use this item if any parts are missing, damaged or worn.
Page 2 Vendor: S000246 TABLE Parts List Hardware List (found in box 1) Description Part Description Table Top Spanner Table Leg Hex Bolt *You will need a screwdriver and small Spring Washer mallet (not provided) Flat Washer Step 1: Place the table top (P1) upside down on a soft, clean surface, then attach the table legs (P2) using hardware parts H1, H2, H3 and H4 .
Page 3 Vendor: S000246 PAIR OF DINING CHAIRS Parts List Hardware List Part Description Part Description Chair Back Allen Key Front Leg 6 x 50 mm JCBC Screw Apron Spring Washer Seat Wooden Dowel Cross Bar Wood Screw Step 1: Attach the aprons (P3) to the front legs (P2) using hardware parts H1, H2, H3 and H4 DO NOT use any power tools as this may damage the frame and will invalidate any claim Step 2: Attach the chair backs (P1) and cross bars (P5) using hardware parts H1, H2, H3 and H4 DO NOT use any power tools as this may damage the frame and will invalidate any claim...
Page 4 • If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. • Why don’t you send us photos of your assembled furniture to info@birlea.com...
