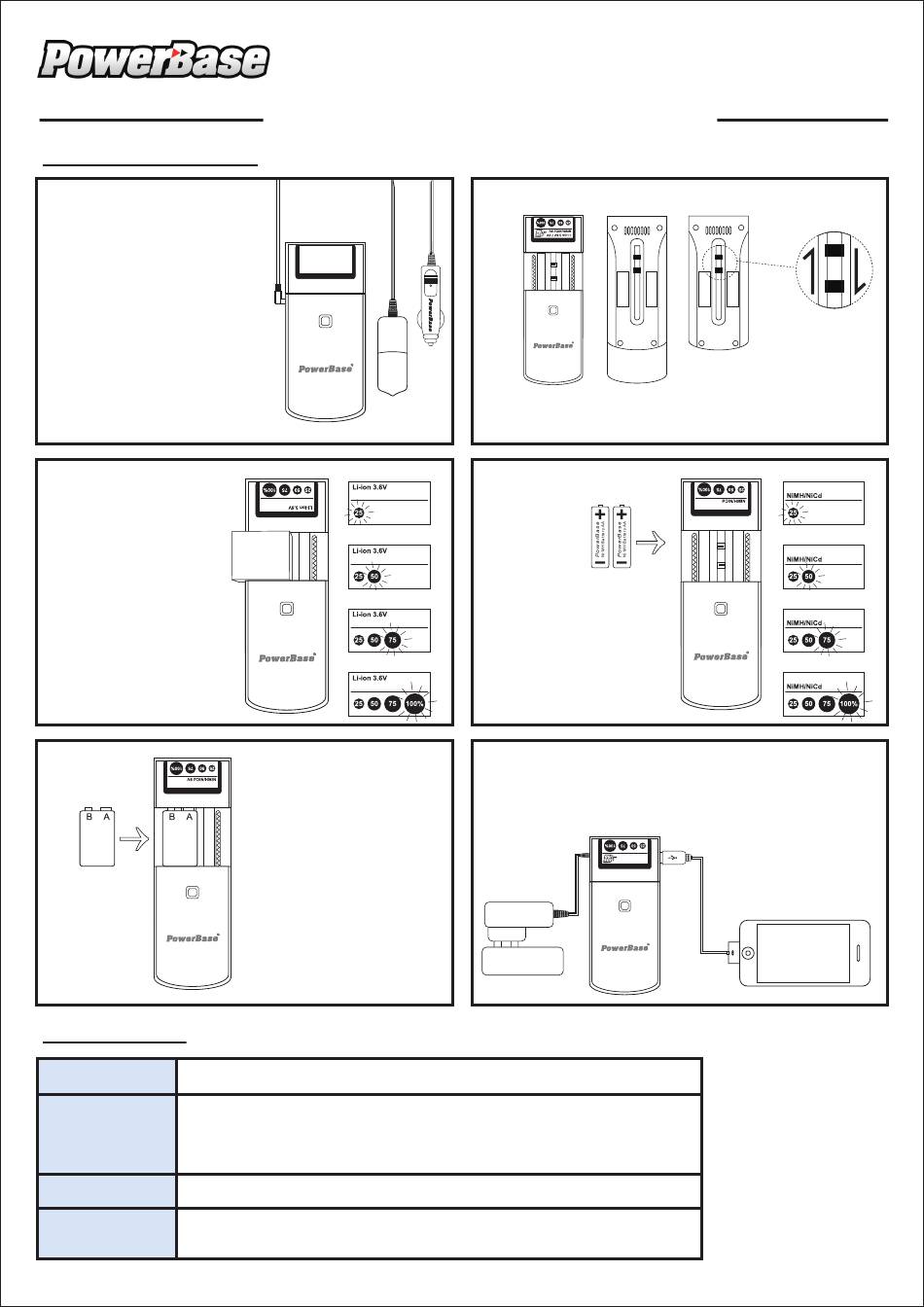

CHARGER OPERATION

1.) Connect the power supply
by switching power adaptor
or car adaptor. The Blue LCD
will be light up which
indicates "POWER" in
standby stage.
3.) 3.6V / 7.2V Li-ion battery
Adjust the charger case to
fit on 3.6V / 7.2V Li-ion
battery, the Blue LCD flash
in charging process and stop
flashing when battery is fully
charged.
5.) 9V battery
9V 9V

SPECIFICATION

Input Voltage Switching Power Adaptor AC 100~240V, 50~60Hz
Li-ion Rechargeable Battery : 3.6V - 3.7V (DC 4.2V : 700mA)
Charge Capability
NiMH Battery : 2xAA 2.8V , 2xAAA 2.8V (DC 2.8V : 700mA)
USB output : 5V (500mA)
12V / DC, 2A fuse, (Optional Accessory)
Car Adaptor
Li-ion Rechargeable Battery : Auto Voltage Monitor
Termination Method
NiMH Battery : Minus Delta
3.6/7.2V Li-ion & NiMH Battery Charger
1) Flash
2) Flash
Li- ion Battery
3.6V
3) Flash
4) Full
When 1 x 9V battery are
correctly inserted, the Blue
LCD flash in charging
process and stop flashing
when battery is fully charged.
After fully charged, the
charger will go to trickle
charge maintain state.
7.2V - 7.4V (DC 8.4V : 700mA)
9V Battery (80mA)
(-△V)
2.) Easy adjustable contact and automatically +/- detection
Front
Adjust 2 pins to the connect position ( Battery )
Place the battery on the charger.
4.) 2AA or AAA batteries
When 1 or 2 batteries are
correctly inserted, the Blue
LCD flash in charging
process and stop flashing
when battery is fully charged.
After fully charged, the
charger will go to trickle
charge maintain state.
6.) USB output power to iPhone, iPod series &
mobile phone etc with AC adaptor connection.
AC Socket
(UL, VDE, BS, SAA plugs)
Back
1) Flash
2) Flash
3) Flash
4) Full
Remark : C-736U
can able to charge
up one Li-ion battery
& one electronic
device at the same
time.
C-736U
Easy
adjustable
contact
