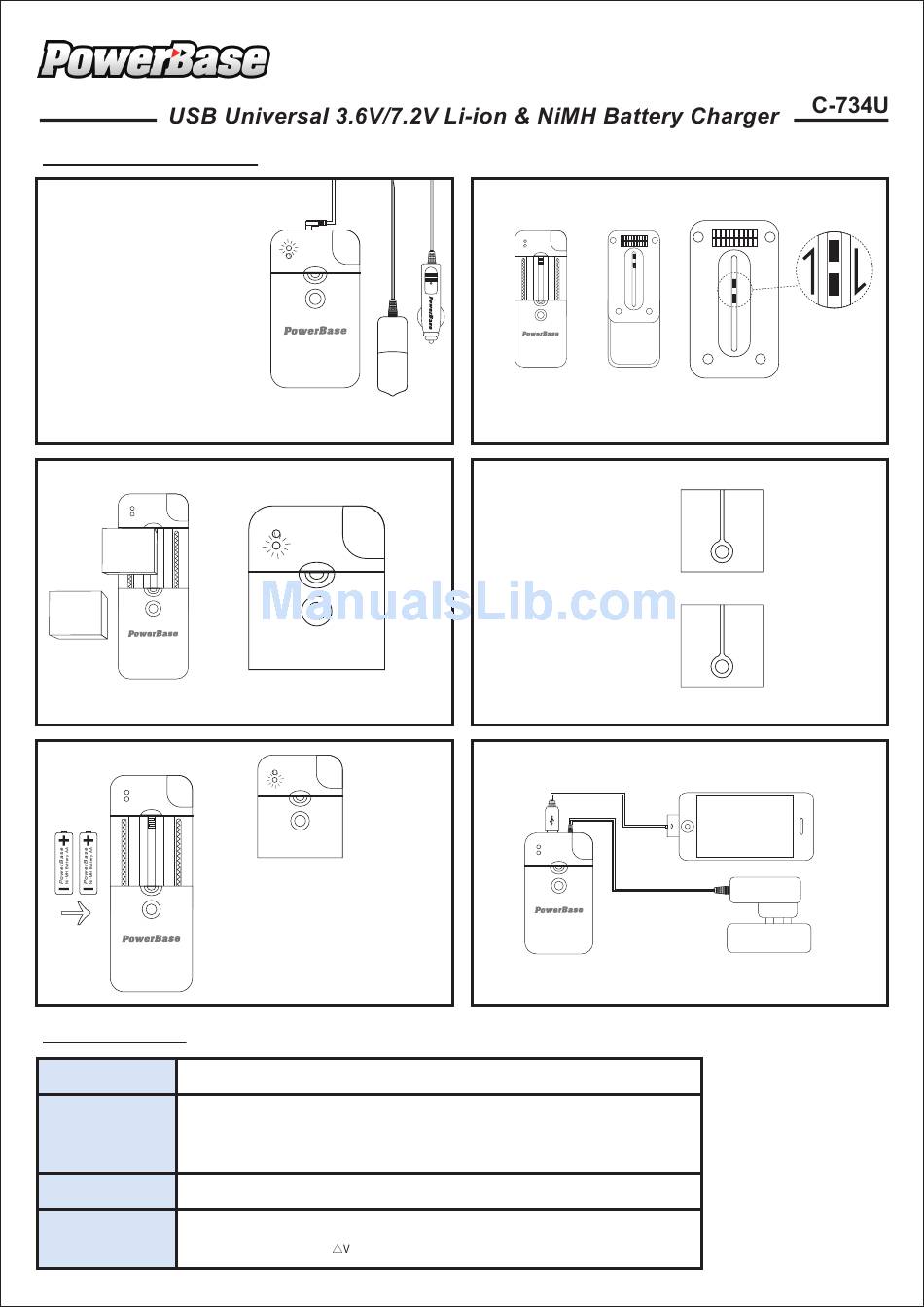

CHARGER OPERATION

1.) Connect the Charger with
AC adaptor or car adaptor.
"Power" LED will light on,
this indicates the charger is
in standby mode.
3.) 3.6V / 7.2V Li-ion battery
Power
Charge
Li- ion Battery
3.6V
Li- ion Battery
7.2V .
Adjust the shell of the charger to fit in the 3.6V / 7.2V
Li-ion battery.
5.) 1 / 2AA or AAA batteries
Power
Charge
When 1 or 2 batteries are inserted,
the "CHARGE" LED light will light
indicating if the batteries are being
charged or they are fully charged.
After finishing the charging process
the charger will switch to the trickle
mode.
SPECIFICATION
Input Voltage Switching Power Adaptor AC 100~240V, 1000mA, 50~60Hz (UL, VDE, BS, SAA plugs)
Li-ion Rechargeable Battery : 3.6V - 3.7V (DC 4.2V : 700mA)
Charge Capability
NiMH Battery : 1 / 2xAA 2.8V , 1 / 2xAAA 2.8V (DC 2.8V : 700mA)
USB output : DC 5V, 1000mA
12V / DC, 2A fuse
Car Adaptor
Li-ion Rechargeable Battery : Auto Voltage Monitor
Termination Method
NiMH Battery : Minus Delta
Power
Charge
Power
Charge
Power
Charge
7.2V - 7.4V (DC 8.4V : 700mA)
(- )
2.) Easy adjustable contact and automatic +/- detection
Power
Charge
Front Back
Adjust the 2 pins on the charger so that it matches the
connectors of the battery. Place the battery on the charger.
4.) Indications of RED and
GREEN LED Light.
Red LED light turns on
when the charging
process is taking place.
Green LED light turns on
when the battery is fully
charged.
6.) USB output power to iPhone, iPod series &
mobile phone etc with AC adaptor connection.
Power
Charge
Remark : C-734U can able to charge up one Li-ion battery
& one electronic device at the same time.
Easy
adjustable
contact
Battery charging
stage.
Red Light
Fully charged
stage
Green Light
AC Socket
