PLEASE NOTE:
*PowerBase Industrial (HK) Ltd. will not be responsible
for any personal loss and/or injury if the defect was
caused by misuse or mishandling by the user in any
way.
The dimensions of the Li-ion batteries have the
limitation as follows:
- The width of the Li-ion battery cannot be in excess of
4cm.
- The distance between 2 pins of the Li-ion battery must
be more than 3mm.

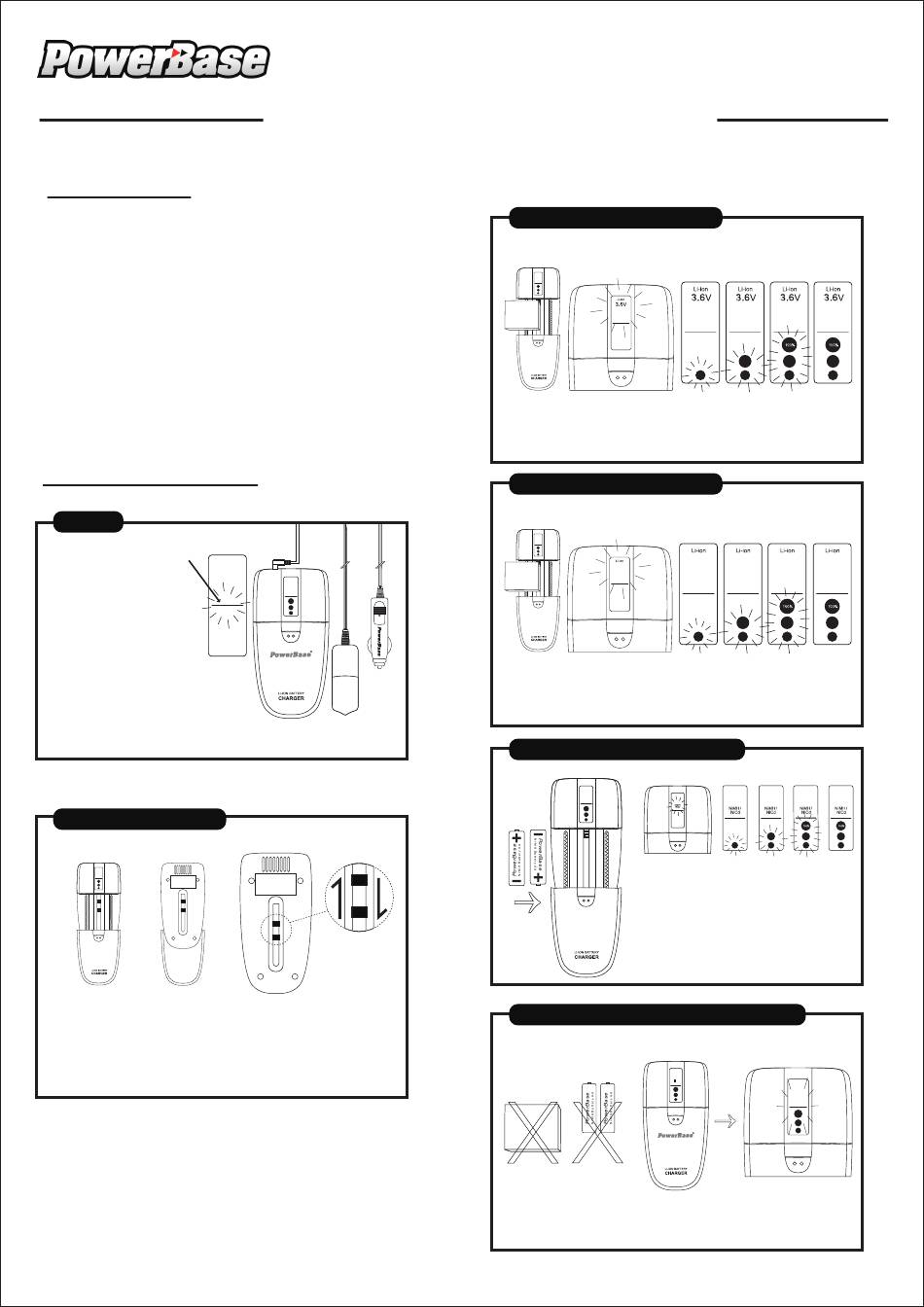

CHARGER OPERATION

Standby
Black line
1) Connect the charger
with switching power
adaptor or car adaptor.
Blue LCD backlight
turns on. Black line will
flash which indicates
the charger is in standby status.
Adjust (+) (-) contact
3.6V
7.2V
Front Back
2) Adjust the 2 pins of the charger to correct positions.
Make sure the +/- plates of Li-ion battery can be
contacted properly. To start charging, insert Li-ion or
NiMh AA/AAA batteries into the charger and adjust the
charger cover to fix the batteries.
Remark: In order to have the maximum charge performance
and stability, please do not charge the electronics devices
through the USB port and the batteries in the compartment
at the same time.
3.6/7.2V Li-ion & NiMH Battery Charger
i) Flash
Li-ion
3.6V
7.2V
Li-ion
3.6V
7.2V
NiMH /
NiMH /
NiCd NiCd
Easy
adjustable
contact
Charge 3.6V Li-ion battery
1)
Flash
3.6V
7.2V
Li- ion Battery
3.6V
3) When 3.6V Li-ion battery is inserted, the symbols inside the
LCD will flash one by one during charging. After charging,
all symbols stop flashing.
Charge 7.2V Li-ion battery
1)
Flash
3.6V
7.2V
7.2V
Li- ion Battery
7.2V
4) When 7.2V Li-ion battery is inserted, the symbols inside the
LCD will flash one by one during charging. After charging,
all symbols stop flashing.
Charge 2AA or AAA batteries
1)
Flash
Li-ion
3.6V
7.2V
NiMH /
NiCd
5) When 2 pcs AA/AAA NiMH are
inserted, the symbols inside the LCD will
flash one by one during charging. After
charging, all symbols stop flashing.
Then quick charge turns to trickle
charge.
Li-ion or NiMH battery does not work
Li-ion
3.6V
7.2V
NiMH /
NiCd
Li- ion Battery
3.6V
6) All symbols inside the LCD will flash at the same time if
defective battery is detected. Chrging is not allowed.
C-735U
) 2 F a l s h ) 3 F a l s h ) 4 F a l s h 5) Full
30% 60%~70% 100%
) 2 F a l s h ) 3 F a l s h ) 4 F a l s h 5) Full
7.2V 7.2V 7.2V 7.2V
30% 60%~70% 100%
) 2 F a l s h ) 3 F a l s h ) 4 F a l s h 5) Full
Li-ion
3.6V
7.2V
NiMH /
NiCd
100%
