PowerBase C-735U User Manual

USER MANUAL

Congratulations on your purchase of the outstanding
3.6V/7.2V Li-ion & NiMH Battery Charger C-735U. This
manual will help you understand how to operate this Charger
and Batteries properly.
FEATURES OF C-735U Li-ion & NiMH BATTERY CHARGER
• Compatible with most 3.6V - 3.7V or 7.2V - 7.4V Li-ion
Batteries, like digital camera, mobile phone etc
• Either 2AA/AAA size NiMH batteries can be charged
• USB port to charge iPhone, iPad, iPod series & mobile
phones etc with AC adapter connection
• Auto voltage switching 100-240V
• Automatically +/- polarity detection
• Easy adjustable slide contact
• Auto cut off device & Timer protection
• Auto identify 3.6V/7.2V Li-ion and NiMH Batteries
• LCD automatically displays battery type, voltage and charge
status
• Adopt non-continuum pulse charging current to avoid
memory effect. It enhances the charging efficiency and
reduce the temperature of the batteries. The batteries will
have better performance and longer cycle life
• Can be used in indoor by switching power adaptor or
outdoor by car adaptor DC 12V
• Trickle maintain functions for NiMH & NiCd rechargeable
batteries
International Voltage
100 ~ 240 V
USB
Switching power adaptor
Car adaptor DC 12V
SPECIFICATION
Input Voltage Switching Power Adaptor AC 100~240V, 50~60Hz
(UL, VDE, BS, SAA plugs)
Li-ion Rechargeable Battery :
3.6V - 3.7V (DC 4.2V : 700mA)
7.2V - 7.4V (DC 8.4V : 700mA)
Charge Capability
NiMH Battery : 2xAA 2.8V , 2xAAA 2.8V
(DC 2.8V : 700mA)
USB output : DC 5V, 1000mA
12V / DC, 2A fuse, (Optional Accessory)
Car Adaptor
Li-ion Rechargeable Battery : Auto Voltage Monitor
Termination Method
NiMH Battery : Minus Delta
3.6/7.2V Li-ion & NiMH Battery Charger
(-△V)
USB OUTPUT OPERATION

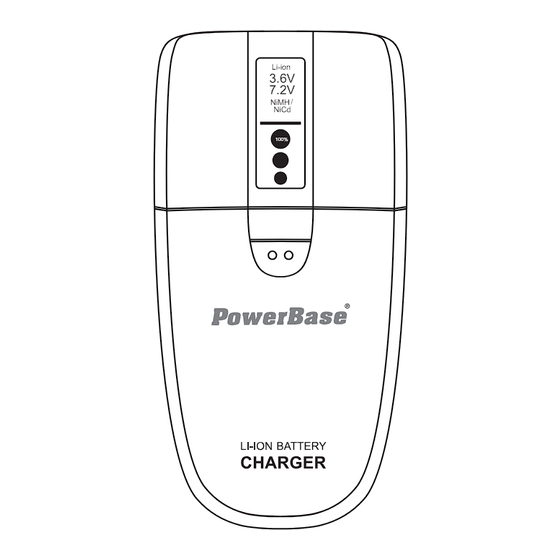

Li-ion
3.6V
7.2V
NiMH /
NiCd
100%
Socket
1. Connect the charger to the
- AC power adaptor, or
- Car adaptor
2. Connect the electronics
devices to the charger
through a USB cable by
plugging the cable into
"Output" outlet.
The charging will start
automatically.
CAUTION
Charging abnormal Li-ion battery will damage the
charger and even cause an un-safety problem of this
action.
1. Do not charge Ni-MH & Ni-Cd rechargeable batteries
at the same time.
2. This product is designed for Li-ion rechargeable
batteries and NiMH batteries only. To avoid personal
injury and damage, do not charge any primary
alkaline, zinc chloride, or zinc carbon type batteries.
3. Do not expose the charger to rain or moisture.
4. Do not operate the charger using an extension cord.
5. Do not use the charger if it has received a sharp blow,
been dropped, or damaged in anyhow.
6. To reduce risk of shock, disconnect the power adaptor
from outlet before attempting any cleaning of the
charger.
7. Do not charge a leaking, corroded or dead battery.
8. Do not attempt to repair charger by yourself. When
service or repair is required, contact qualified service
personnel.
9. Do not try to disassemble the charger.
10. Always disconnect the charger from the mains when
not in use.
11. Store the charger in a cool and dry place when not in
use. Keep away from children.
C-735U
3. After fully charged the
selected devices,
unplug the charger from
the adapter, and
disconnect the electron-
ics devices from the
charger.
