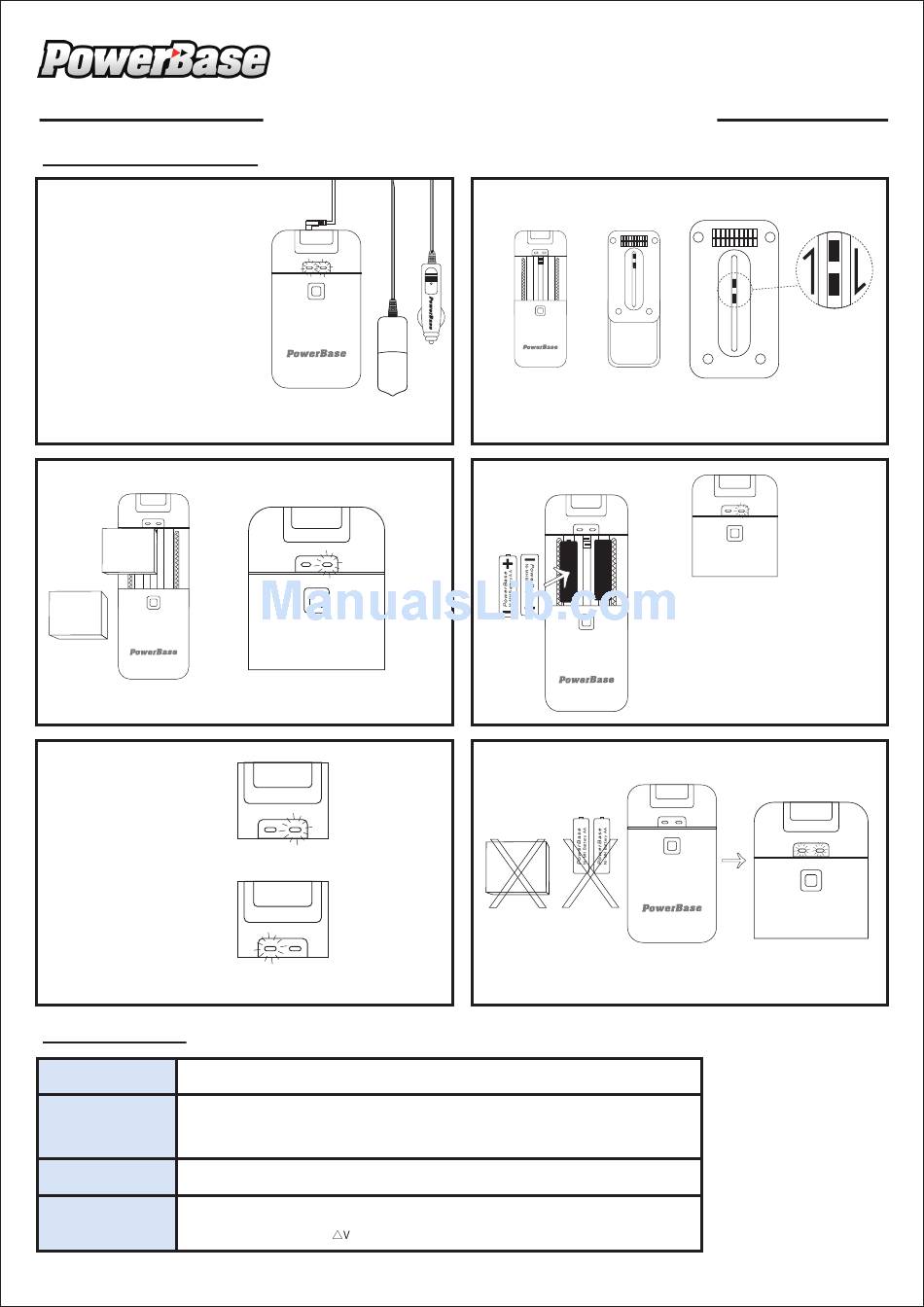

CHARGER OPERATION

1.) Connect the Charger with
AC adaptor or car adaptor.
Both "Green" and "Red" LED
will light on, this indicates the
charger is in standby mode.
3.) 3.6V / 7.2V Li-ion battery
Li- ion Battery
3.6V
Li- ion Battery
7.2V .
Adjust the shell of the charger to fit in the 3.6V / 7.2V
Li-ion battery.
5.) Indications of RED and
GREEN LED Light.
Red LED light flashing
when the charging
process is taking place.
Green LED light turns on
when the battery is fully
charged.
SPECIFICATION

Input Voltage

Switching Power Adaptor AC 100~240V, 50~60Hz
Li-ion Rechargeable Battery : 3.6V - 3.7V (DC 4.2V : 700mA)

Charge Capability

NiMH Battery : 1 / 2xAA 2.8V , 1 / 2xAAA 2.8V (DC 2.8V : 700mA)
12V / DC, 2A fuse
Car Adaptor
Li-ion Rechargeable Battery : Auto Voltage Monitor

Termination Method

NiMH Battery : Minus Delta
3.6/7.2V Li-ion & NiMH Battery Charger
Battery charging
stage.
Red Light
Flashing
Fully charged
stage
Green Light
7.2V - 7.4V (DC 8.4V : 700mA)
(- )
2.) Easy adjustable contact and automatic +/- detection
Front
Adjust the 2 pins on the charger so that it matches the
connectors of the battery. Place the battery on the charger.
4.) 2AA or AAA batteries
6.) If the Li-ion or NiMH battery does not work
Li- ion Battery
3.6V
Built in faulty battery detection for safety.
Flashing will occur on both "Red" and "Green" LED light.
(UL, VDE, BS, SAA plugs)
Back
When 2 batteries are inserted,
the "RED" LED light will flash
when the batteries are being
charged.
C-733
Easy
adjustable
contact
