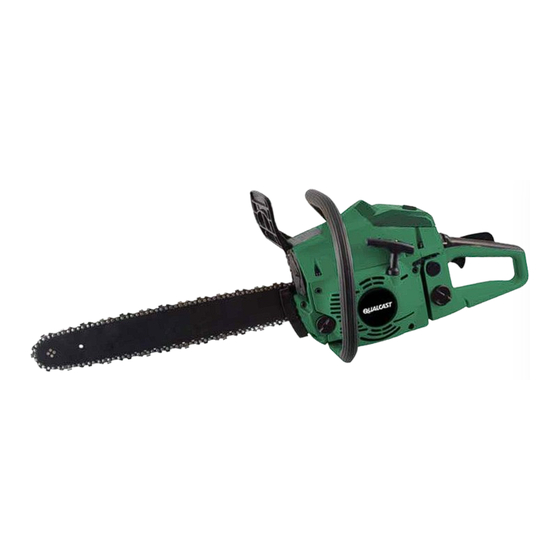

Qualcast QG-PC 4645 Original Operating Instructions
  1. Manuals
  2. Brands
  3. Qualcast Manuals
  4. Chainsaw
  5. QG-PC 4645
  6. Original operating instructions
Qualcast QG-PC 4645 Original Operating Instructions

Qualcast QG-PC 4645 Original Operating Instructions

46cc
Hide thumbs
Table of Contents

Advertisement

Quick Links

QG-PC 4645
Benzin-Kettensäge
Komponenten / Ersatzteile
Position
Artikel-Nr.
6
450139001006
10
450139001010
15
450139001015
16
450139001016
17
450139001017
18
450139001018
24
450139001024
27
450139001027
Artikel-Nr.:
Ident-Nr.:
Beschreibung
Zündkerze LDL7T
Auspuff
Kolbenring
Kolben
Sicherungsring
Kolbenbolzen D11x34
Zündspule
Öltankkappe
Position
Artikel-Nr.
55
450139001055
61
450139001061
78
450139001078
87
450139001087
97
450139001097
98
450139001098
99
450139001099
114
450139001114
Beschreibung
Vergaser
Luftfilter
Krallenanschlag
Ölpumpe
Befestigungsschraube für Luftfilter
Dichtring
Abdeckung für Luftfilter
Benzinfilter

Advertisement

Table of Contents
loading

Related Manuals for Qualcast QG-PC 4645

Summary of Contents for Qualcast QG-PC 4645

  • Page 1 QG-PC 4645 Artikel-Nr.: Benzin-Kettensäge Ident-Nr.: Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung Position Artikel-Nr. Beschreibung 450139001006 Zündkerze LDL7T 450139001055 Vergaser 450139001010 Auspuff 450139001061 Luftfilter 450139001015 Kolbenring 450139001078 Krallenanschlag 450139001016 Kolben 450139001087 Ölpumpe 450139001017 Sicherungsring 450139001097 Befestigungsschraube für Luftfilter 450139001018 Kolbenbolzen D11x34...
  • Page 2 Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung 450139001126 Schalthebel 450139001127 Abdeckung für Handgriff 450139001128 Hebel für Sicherheitsschalter 450139001133 Treibstofftankkappe 450139001134 Vorderer Griff 450139001166 Abdeckung der Leitschiene 450139001901 Seitenabdeckung komplett 450139001902 Seilzugstarter komplett 450139001903 Kupplung komplett 450139001904 Ölfilter komplett 450139001178 Mischbehälter 450139001186 Gummiventil 450139001187 Entlüftungsventil für Benzintank...
  • Page 3 SEMI AUTOMATIC OVERALL BAR CHOKE Aids start up LENGTH For speed and precision AFTER SALES SUPPORT UK / IRELAND HELPLINE NO 0151 6491500 REP . IRELAND HELPLINE NO 1890 946244 WEB SUPPORT www.einhell-uk.co.uk MODEL NUMBER: QG-PC 4645 MANUFACTURERS ARTICLE NO: 45.013.97...

  • Page 4: Table Of Contents

    Contents Page General safety instructions Layout Assembling the Chainsaw Getting Started Instructions Maintenance Ordering Spare Parts Check List Trouble Shooting Technical Data Storage Declaration Of Conformity Packaging The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.
  • Page 5 Read and follow the operating instructions and safety information before using for the first time. Always wear PPE (Personal Protective Clothing). Wear a safety helmet, eye and ear protection! Wear safety shoes! Wear safety gloves! Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
  • Page 6 When using the equipment, a few safety Explanation of the pictograms for handling on precautions must be observed to avoid the machine injuries and damage A safety sign is fitted to the chain saw’s fan filter 1. Read the operating instructions carefully and cover.

  • Page 7: General Safety Instructions

    PINCHING the saw chain along the BOTTOM of To prevent pulling reactions, place the wood you the guide bar may PULL the saw forward away wish to cut against the claw stop. Use the claw stop as a pivot point during cutting (Fig. 2). from the operator.
  • Page 8 may catch the saw chain and be whipped Kickback toward you or pull you off balance. Kickback may occur when the nose or tip of the 13. When cutting a limb that is under tension, be guide bar touches an object, or when the wood alert for springback so that you will not be closes in and pinches the saw chain in the cut.
  • Page 9 reduce the possibility of injury due to kickback trade or industrial businesses or for equivalent by stopping a moving saw chain in purposes. milliseconds. It is activated by the CHAIN BRAKE lever. Additional Risks: 10. STOP SWITCH immediately stops the engine Even if the chainsaw is used correctly, there are still risks of harm or injury associated with the tool’s when tripped.

  • Page 10: Layout

    2. Assembly and Parts List Please note that the Chain brake lever/front handle guard (Fig. 6.) is supplied separately Layout (Fig. 3B) in the box. 1. Chain bar 2. Saw chain 3. Chain tensioning screw Fit the chain bar 4. Stop claw To ensure that the bar and the chain are 5.
  • Page 11 To install saw chain 3. Guide the drive links into the groove (D) and 1. Spread the chain out in a loop with the around the end of the bar (Fig. 10). cutting edges (A) pointing CLOCKWISE around Note: The saw chain may droop slightly on the loop (Fig.
  • Page 12 5. Using a screwdriver, run the adjustment screw as well as during any cutting operation. Taking (Fig 11A/Item G and Fig. 11B/Item G) the time to make needed adjustments to the COUNTERCLOCKWISE until the TANG (Fig. 6/ saw chain will result in improved cutting Item E) (projecting prong) is to the end of its performance and prolonged chain life.

  • Page 13: Getting Started

    3. Getting started To test chain brake 1. The Chain brake is DISENGAGED (chain can move) when BRAKE LEVER IS PULLED BACK Before starting the machine AND LOCKED (Fig. 13). 2. The chain brake is ENGAGED (the chain is Chain break mechanical test locked) when the brake lever is pulled Your chain saw is equipped with a Chain brake forward and the mechanism (Fig.
  • Page 14 Fuel and lubrication Fuel Use regular grade unleaded fuel mixed with 40:1custom 2-cycle engine oil for best results. Mixing fuel Mix fuel with 2 cycle oil in an approved container. Shake gently and ensure thorough mix. Warning: Never use straight fuel in your unit. This will cause permanent engine damage and void the manufacturer’s warranty for that product.

  • Page 15: Instructions

    5. Instructions go to “idling”speed (Fig. 19). If engine failed to start, repeat these instructions. Operation Important: Always pull the starter cable slowly until you feel the initial resistance before you then Starting the engine pull it quickly to start the engine. Do not allow the 1.
  • Page 16 NOTES Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
  • Page 17 General cutting instructions General guidelines for felling trees (Fig. 21) Normally felling consists of 2 main cutting operations, notching (C) and making the felling Important: Felling trees is prohibited cut (D). Start making the upper notch cut (C) on without the necessary training! the side of the tree facing the felling direction (E).
  • Page 18 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
  • Page 19 Felling cut 3. Log supported on both ends: First, overbuck 1. Use wooden or plastic wedges (A) to prevent 1/3 diameter of log to avoid splintering. binding the bar or chain (B) in the cut. Second, underbuck to meet first cut and Wedges also control felling (Fig.

  • Page 20: Maintenance

    Maintenance Air filter Warning: Never operate saw without the air filter. Dust and dirt will be drawn into engine and Warning: All maintenance work on the damage it. Keep the air filter clean! The air filter chainsaw apart from the work described in this must be cleaned or replaced after every 20 manual may only be carried out by authorised hours of service.
  • Page 21 4. Insert the air filter. Fit the cover for the engine/ 4. Lift filter (A) out of tank (Fig. 33). air filter. Make sure that the cover fits perfectly 5. Pull off the filter with a twist and clean it; if the when you do so.
  • Page 22 Chain bar maintenance To lubricate sprocket tip Regular lubrication of the chain bar (guide rail for Lubrication of the sprocket tip is recommended the chain and teeth) is essential. The chain bar after 10 hours of use or once a week, which ever needs the maintenance described in the occurs first.
  • Page 23 Most guide bar problems can be prevented merely by keeping the chain saw well maintained. Insufficient guide bar lubrication and operating the saw with chain that is TOO TIGHT will contribute to rapid bar wear. To help minimise bar wear, the following guide bar maintenance procedures are recommended.
  • Page 24 A setting screw for adjusting the chain lubrication Chain sharpening (Fig. 38) (Fig. 37/ Item A) is located on the underside of Always sharpen the cutters only with outward the chain saw. Turning the screw counter- strokes (Fig. 38) observing the values given in Fig. clockwise increases the chain lubrication, turning 39.

  • Page 25: Ordering Spare Parts

    Ordering replacement parts Please quote the following data when ordering replacement parts: n Type of machine QG-PC 4645 n Article number of the machine 4501397 n Identification number of the machine 11010 n Replacement part number of the part required...

  • Page 26: Check List

    Petrol Engine Starting Procedure/Check List If Yes Check Check Ignition Pull Start Cord Sufficient Fuel in Switch is on Min. 5 Times Tank If No Then Fill If No Then Tank With Switch on Correct Fuel/Oil Continue With Continue With Starting Starting Procedure...

  • Page 27: Troubleshooting

    6. Other Useful Information FAULT POSSIBLE CAUSES TROUBLESHOOTING Unit won’t start Incorrect starting procedures Follow instructions in the or starts but will User Guide or refer to starting not run procedure check list on page 24 Incorrect carburetor mixture Have carburetor adjusted by adjustment setting an Authorised Service Centre Fouled spark plug...

  • Page 28: Technical Data

    Technical data Engine displacement 46 cm 3 Maximum engine capacity 2 kW Bar length 43 cm Cutter rail length (18˝) 45 cm Chain pitch (0.325 ˝), 8.255 mm Chain thickness (0.058 4˝), 1.47 mm Idling speed 3600 rpm Maximum speed with cutting equipment 11000 rpm Tank capacity 550 ml...

  • Page 29: Storage

    2. Start the engine and let it run until the unit stops to remove fuel from carburettor. 3. Allow the engine to cool (approx. 5 minutes). 4. Remove the spark plug. 5. Pour 1 teaspoon of clean 2-cycle oil into the combustion chamber.
  • Page 30 Home Retail Group Einhell UK Ltd 489-499 Avebury Boulevard, Unit 5 Morpeth Wharf, Saxon Gate West, Twelve Quays Birkenhead, Central Milton Keynes Wirral MK9 2NW CH41 1LF Helpline Numbers: Contact Numbers: UK 0151 649 1500 TEL 0151 649 1500 IRE 1890 946 244 FAX 0151 649 1501 The reprinting or reproduction by any other means, in Technical changes subject to change.
  • Page 31 Please adhere to the following maintenance periods in order to ensure a failure-free operation. Important! Fill in engine oil and fuel before starting up the engine for the first time. After an After an After an After an Before operating operating operating operating...
  • Page 32 GUARANTEE CERTIFICATE Dear Customer, In the unlikely event that your device develops a fault, please contact our Customer service department on the telephone number shown below. 1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. Claims must be accompanied by Proof of Purchase.

  • Page 33: Declaration Of Conformity

    Declaration of conformity Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
  • Page 34 AFTER SALES SUPPORT UK / IRELAND HELPLINE NO 0151 6491500 REP . IRELAND HELPLINE NO 1890 946244 WEB SUPPORT www.einhell-uk.co.uk MODEL NUMBER: QG-PC 4645 MANUFACTURERS ARTICLE NO: 45.013.97...
