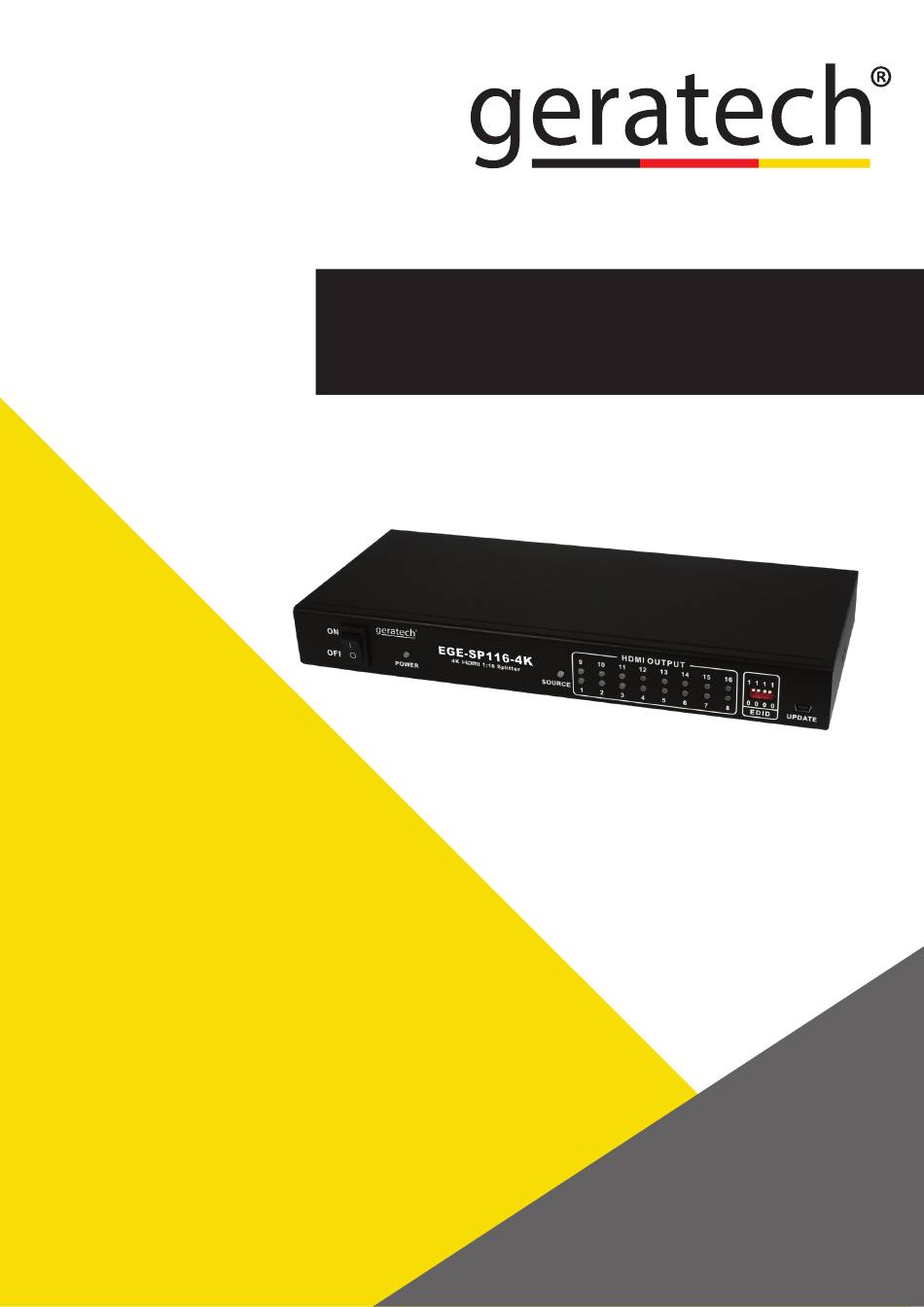

- Page 1 EGE-SP116-4K 4K HDMI 1:16 Splitter...
- Page 3 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 4: Table Of Contents
Table of Contents ............... 1. Introduction ..............2. Features 3. Package Contents ........................ 4. Specifications ......5. Operation Controls and Functions 6. Connection Diagram .......... -
Page 5: Introduction
1. Introduction This product is a high performance 1X16 splitter, It supports 4Kx2K signal input and split to 16 HDMI ports. The splitter support EDID control, so that can force the source output definitions you want. 2. Features Split 1 HDMI input signal to 16 HDMI sink devices. Definition resolution supports up to 4K*2K@30Hz@8bit(YCbCr4:4:4) ;... -
Page 6: Specifications
4. Specifications Technical HDMI Compliance HDMI 1.4a HDCP Compliance HDCP 1.4 Video Bandwidth 297MHz[10.2Gbps] Video Resolutions 480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz 720p@50/60Hz.1080i@50/60Hz, 1080p@24/30/50/60Hz, 4K@30Hz@8bit(YCbCr4:4:4),4K@60Hz@8bit(YCbCr4:2:0); Color Space RGB. YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 10-bit. 12-bit HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital +, Dolby True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X (Pasa-through) ESD Protection... -
Page 7: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel ON/OFF: Power on/off switch. POWER LED: This LED illuminates when the device is connected with power supply INPUT LED: This LED illuminates when the source plugs in corresponding HDMI input Port, OUTPUT LED: These LEDs illuminates when the TV plugs in corresponding HDMI output Port. EDID Selector: Select HDMI output signal format via EDID Selector Position EDID Description... -
Page 8: Connection Diagram
5.2 Rear Panel HDMI OUTPUT: These slots are where you connect the HDTV or monitor with HDMI cable. HDMI IN: This slot is where you connect the HDMI source output from DVD, PS3. DC 12V: Plug the 12V DC power supply into the unit and connect the adapter to AC wall outlet. 6. - Page 10 www.egerate-store.com...
