OPM1 and OLS1 Series Quick Reference Guide
It is important to keep all optical connections and surfaces clean to ensure accurate
measurements and operation. Always clean all test jumpers before conducting
test procedures outlined in this guide. Follow your company's approved cleaning
procedures.

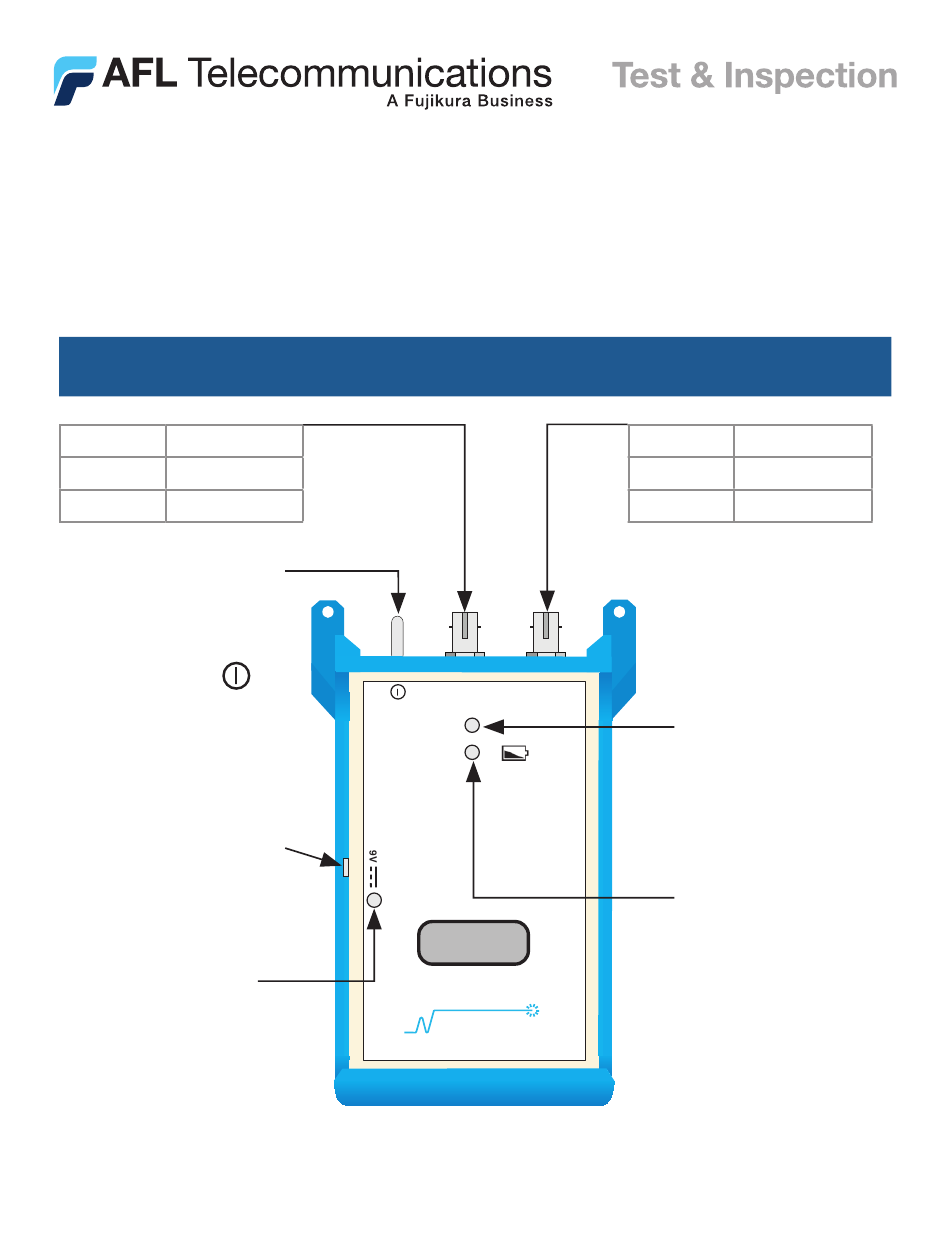

OLS1 LED Light Source
Model
Output port
OLS1-1C
660 nm
OLS1-2C
850 nm
Wavelength/Power
Off switch - selects
optical wavelength
or disables unit (
position).
Power port - interface
for an AC power
adapter.
Power indicator -
lights up when the
correct AC power
adapter is connected.
www.AFLtele.com /1.800.321.5298 /1.603.528.7780
850
1300
850nm
1300nm
OLS1
LED Source
NOYES
AFL Telecommunications
1
Model
Output port
OLS1-1C
850 nm
OLS1-2C
1300 nm
Active Output
indicator - lights
up when one of the
output ports is ON.
Low battery
indicator - when
ON, indicates a low
battery condition.
Battery replacement
is required.
Advertisement
Related Manuals for AFL OPM1 Series
Summary of Contents for AFL OPM1 Series
- Page 1 AC power Low battery adapter. indicator - when LED Source ON, indicates a low Power indicator - battery condition. lights up when the NOYES Battery replacement correct AC power AFL Telecommunications is required. adapter is connected. www.AFLtele.com /1.800.321.5298 /1.603.528.7780...
- Page 2 OPM1 Optical Power Meter Adapter cap - OPM1 Optical input must be equipped with (adapter cap mount)- an adapter cap. accepts AFL-Noyes thread-on adapter Display - shows caps. Adapter caps measured power and for different connector calibrated wavelength. NOYES styles are available...
-
Page 3: Measuring Optical Power
λ key to select the calibrated wavelength that matches the nominal Press the wavelength of the source being measured. Read the displayed power measurement (dBm). Test jumper Adapter cap Output Input Fiber optic equipment NOYES AFL Telecommunications OPTICAL POWER METER 1300 AUTO OFF -20.0 OPM 1 Power... -
Page 4: Testing Multimode Links
Testing Multimode Links Step I - Set the Reference (One Jumper Method) Turn on the OPM1 optical power meter and OLS1 optical light source. Allow the light source to stabilize (minimum of 2 minutes). Set both instruments to the desired test wavelength. Select the appropriate fiber optic transmit and receive test jumpers. - Page 5 Testing Multimode Links Repeat steps 4 to 7. If the displayed power level is acceptable, record it. This is the reference power level at the current wavelength. Step II - Verify Test Jumpers Disconnect the transmit jumper from the OPM1. Note: Do not disturb the transmit jumper at the OLS1 end.
- Page 6 Testing Multimode Links - If the insertion loss is not acceptable, disconnect the transmit and receive jumpers at the adapter, clean the free ends of both test jumpers and repeat steps 13 and 14. If the insertion loss is acceptable, disconnect the transmit and receive jumpers at the adapter.
-
Page 7: Cleaning Tips
(cracked, pitted, etc.). CAUTION! Never view a live fiber. Laser radiation is harmful to eyes. AFL recommends cleaning test cables using a Cletop cassette cleaner or a One-Click Cleaner. Visit our web at www.AFLtele.com/go/Clean for more information. - Page 8 Gastech instruments S.r.l. 20090 TREZZANO sul NAVIGLIO (MI) – Via Carpaccio 2/A - Tel.02.48.46.34.05 P . I V A / C . F . 1 2 5 5 2 3 4 0 1 5 5 - C a p . S o c i a l e € . 1 0 . 2 0 0 , 0 0 R e g . I m p r e s e d i M i l a n o n ° 1 8 8 2 1 4 / 9 8 - R E A n ° 1 5 6 5 3 6 6...
