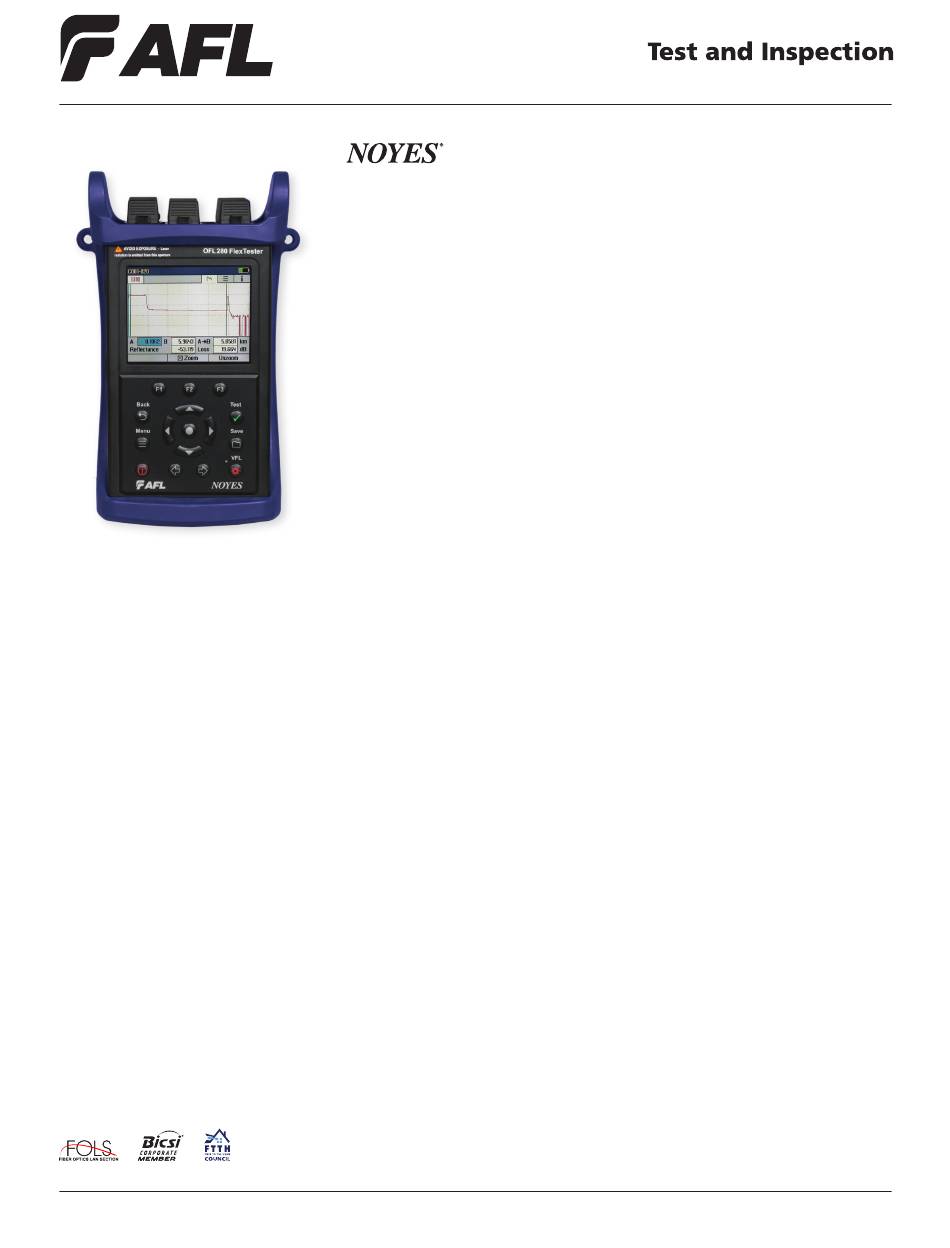

The AFL/NOYES OFL280-10x FlexTester family offers an unmatched combination of optical fiber test functions, ease-of-use, portability,
and value. All OFL280 FlexTester models include an integrated single-mode 1310/1550 nm OTDR with PON-optimized and standard
test modes, optical power meter, 1310/1550 nm laser source, and visual fault locator.
The OFL280 FlexTester family offers four models to best suit your application needs:
OFL280-103: Verify both in-service and out-of-service FTTx networks from a single port. Includes 1310/1550/1625 nm live PON OTDR
with integrated PON Power Meter.
OFL280-102: Most complete out-of-service FTTx PON testing at all PON wavelengths (1310/1490/1550 nm).
OFL280-101: 1310/1550/1625 nm out-of-service testing.
OFL280-100: Cost-effective 1310/1550 nm OTDR for out-of-service installation testing or troubleshooting both FTTx PON and point-
to-point fiber optic networks.
Over 1000 OTDR test results (Telcordia SR-4731 .SOR file format) may be saved in the OFL280's internal memory. Stored OTDR and
OPM results may be transferred to PC via wireless Bluetooth
Manager software is included for OTDR and OPM results viewing, analysis, and professional report generation.
www.AFLglobal.com or (800) 321-5298, (603) 528-7780

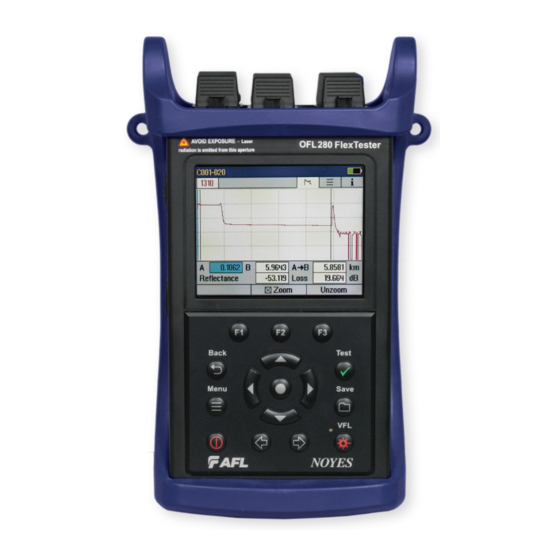

OFL280-10x FlexTester OTDR
Hand-held Multifunction OTDR and Loss Test Set
Features
Patented in- or out-of-service OTDR testing from a single port
ServiceSafe
live PON detection and OTDR test without service disruption
Wave ID reduces insertion loss test time and eliminates setup errors
34/32 dB dynamic range at 1310/1550 nm
Best-in-class 0.8/3.5 m event/attenuation dead zones
Rugged, hand-held, lightweight (<1 kg)
High-contrast, backlit display: Easily viewed, even in direct sunlight
Industry-leading battery life: >12 hours continuous operation
Instant On: Ready to test in <5 seconds

Applications

Cost-effective point-to-point and FTTH PON testing
Troubleshoot in-service FTTH networks, including live PON power measurements plus
PON OTDR testing at 1625 nm.
Complete multi-wavelength insertion loss tests faster and eliminate setup errors using
Wave ID source and power meter.
Generate fiber-identifying tones and stable CW signals using integrated optical source.
Trace fibers or locate faults using the Visual Fault Locator (VFL).
or USB cable. Windows
®
1
compatible TRM 2.0
Basic Test Results
®
®
© 2014, AFL, all rights reserved. OFL2-28-2000 Revision 1P, 2014-01-22
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOYES OFL280-10x and is the answer not in the manual?

Questions and answers

Summary of Contents for AFL NOYES OFL280-10x

  • Page 1 Trace fibers or locate faults using the Visual Fault Locator (VFL). The AFL/NOYES OFL280-10x FlexTester family offers an unmatched combination of optical fiber test functions, ease-of-use, portability, and value. All OFL280 FlexTester models include an integrated single-mode 1310/1550 nm OTDR with PON-optimized and standard test modes, optical power meter, 1310/1550 nm laser source, and visual fault locator.
  • Page 2 OLT remain in service. Troubleshooting a faulty optical connection from the out-of-service subscriber’s location using a 1310 or 1550 nm OTDR would disrupt service to remaining users. AFL’s ServiceSafe feature alerts the OTDR user to the presence of live traffic and prevents the initiation of service-disrupting 1310/1550 nm OTDR tests.
  • Page 3 Optical Power Meter Dark Fiber OTDR Dark Fiber OTDR Laser Source Laser Source Live Fiber OTDR PON Power Meter www.AFLglobal.com or (800) 321-5298, (603) 528-7780 © 2014, AFL, all rights reserved. OFL2-28-2000 Revision 1P, 2014-01-22 Specifications are subject to change without notice.
  • Page 4 UPC or APC inspection adapter tips. It enables inspection of both ferrule ends of male connectors and end-face of connectors mounted inside bulkhead adapters. FOCIS PRO includes image capture, save, AFL’s unique image-pairing capability, plus IEC and user-adjustable pass/fail analysis. With FOCIS PRO’s dedicated Touchscreen Tablet, the OFL280 is always available for OTDR and optical loss testing.
  • Page 5 At calibration wavelengths and power levels of approximately -5 dBm for 1550 nm and -10 dBm for 1490 nm. e. At 1310/1550 nm wavelengths with CW power level of approximately -10 dBm. www.AFLglobal.com or (800) 321-5298, (603) 528-7780 © 2014, AFL, all rights reserved. OFL2-28-2000 Revision 1P, 2014-01-22 Specifications are subject to change without notice.
  • Page 6 Specify connector types (y1,y2); 500 and 1000 m lengths also available. NOYES International Sales and Service Contact Information I S O 90 0 1 Available at www.AFLglobal.com/NOYES/Contacts www.AFLglobal.com or (800) 321-5298, (603) 528-7780 © 2014, AFL, all rights reserved. OFL2-28-2000 Revision 1P, 2014-01-22 Specifications are subject to change without notice.
