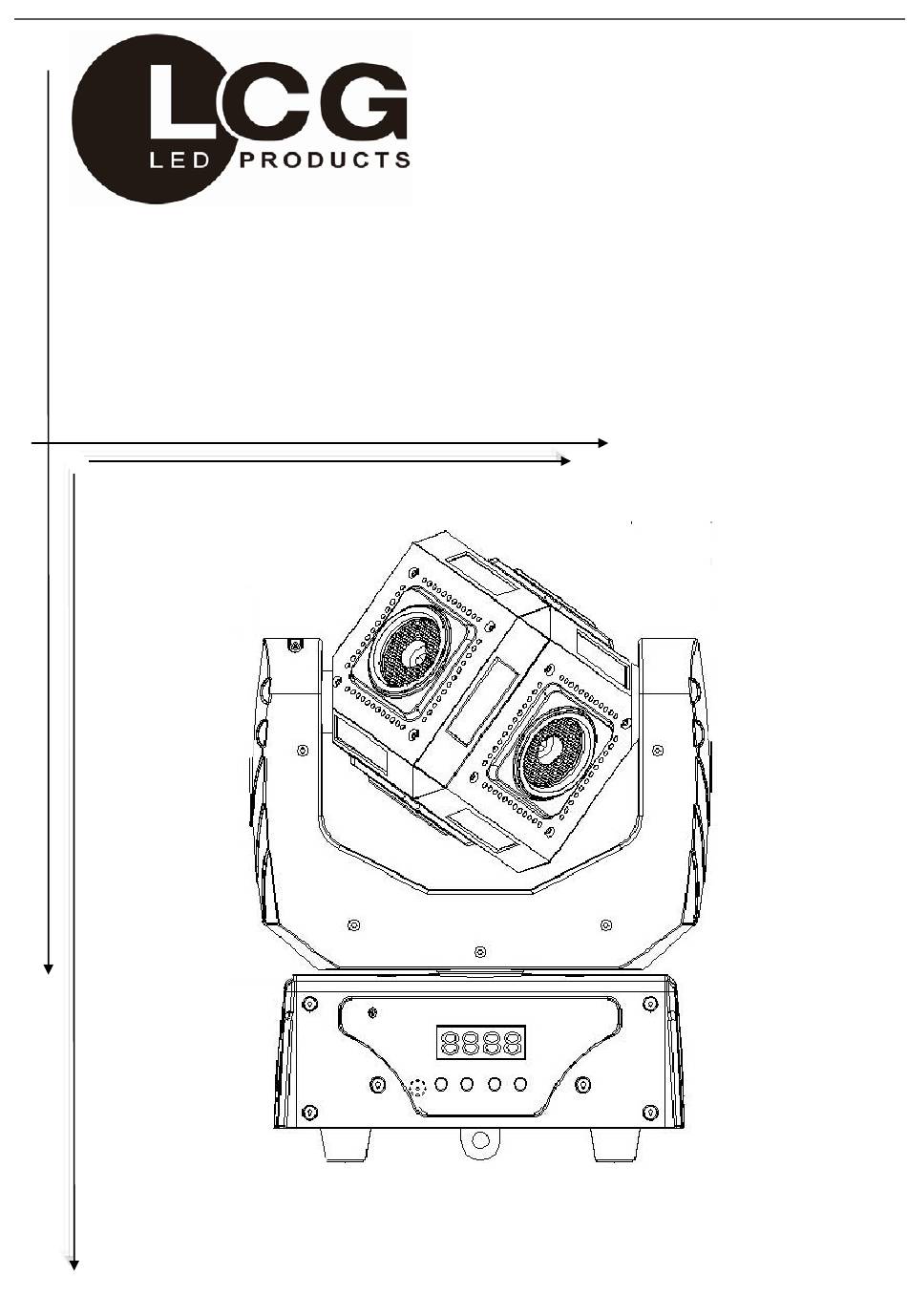

- Page 1 Mini Rubik LED LCG-623A LED Moving Head Light User manual Please keep the manual carefully for future reference...
-
Page 2: Table Of Contents
Moving head light user manual Contents Introduction & Symbol Instruction ------------------------------------------------------P2 Safety instructions-----------------------------------------------------------------------------P3 Installation instruction------------------------------------------------------------------------P4 Ringing & Product specification----------------------------------------------------------P5 LCD display & MENU operation & Function setting --------------------------P6-10 Channel Instruction-----------------------------------------------------------------------P10-12 DMX-connection and setting -----------------------------------------------------------P13 Warranty card----------------------------------------------------------------------------------P14 - 1 -... - Page 3 Moving head light user manual Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.
-
Page 4: Safety Instructions
Moving head light user manual Safety Instructions This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. Warning! Damages caused by the disregard of this user manual are not subject to warranty. -
Page 5: Installation Instruction
Moving head light user manual ►Handle with care, do not make the device by strong shocks. While choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. Please don't project the beam onto combustible substances.The minimum distance between light-output from the projector and the illuminated surface must be more than 1 meter. - Page 6 Moving head light user manual Ringing Mounting Bracket Handing Bracket Safety Rope Rapid locking hook Insert the quick-lock fasteners of the first holder into the respective holes on the bottom of the device.Tighten the quick-lock fasteners fully clockwise. Make the finished installed mounting bracket tighten on the fixed bracket. Pull the safety rope through the holes on the bottom of the base and over the trussing system or other safe fixation spot.
-
Page 7: Lcd Display
Moving head light user manual LCD display 1.DMX in 1：（MENU） 2.DMX Out 2：（DOWN） 3.Switch 3：（UP） 4.Fuse 4： （ENTER） 5.AC power 5：Display socket LED operation Main menu Sub-menu Function Dmx address Address 001~512 14 Channel Channel 16 Channel Sh1 (Scene 1) Sound Mode choose Sh2 ( Scene 2) Sh3 (Scene 3) - Page 8 Moving head light user manual 000~255 Green 000~255 Blue 000-255 Whit 000-255 Stro 000-255 000-255 000-255 disp Test Whole Function Test Fhrs Operate Time Software Version Rest Whole Reset defa Default MENU operation This fixture has 4 keys on front panel for operation, press these to set address, reset, edit and run programs and so on.
- Page 9 Moving head light user manual 2）Channel Setting 1. Press <MENU> to enter EDIT interface 2. Press <UP/DOWN> to choose, then pres ENTER to enter 【channel】 3. Press UP/DOWN to choose each channel.‘14CH’/‘16CH’ 4. Press ENTER to confirm, or press "MENU" to exit 3) Sound scene Setting 1.
- Page 10 Moving head light user manual (2) Press<Up/Down> to choose ‘T000~T255’ (3) Press <Enter> to confirm, save and exit. 【Red】：(1)Press <Enter> into【Red】 (2) Press <Up/Down> to choose ‘R000~R255’ (3) Press <Enter> to confirm, save and exit. 【Gren】:(1)Press<Enter> into【Green】 (2) Press <Up/Down>, Choose ‘G000~G255’ (3) Press <Enter>...
-
Page 11: Channel Instruction
Moving head light user manual 2. Press UP/DOWN to choose, then press ENTER to enter 【Default setting】 3. Press<Enter> to confirm,save and exit Channel Instruction 14 Channel Channel Value Function 000-255 Pan 0-630° Tilt 000-255 Tilt 0-196° 000-030 Stop 031-140 Anticlockwise,from fast to slow Infinite tilt 141-145... - Page 12 Moving head light user manual 247-255 R&G&B-Chase CH12 LED Strip Speed 000-015 Speed from slow to fast 000-045 No Function 046-065 066-085 Green 086-105 Blue 106-125 White CH13 Color Macro 126-145 R&G 146-165 R&B 166-185 G&B 186-205 R&G&B&W 206-255 RGB Change Fast-Slow 000-249 No Function CH14...
- Page 13 Moving head light user manual 078-098 Blue 099-119 R&G 120-140 R&B 141-161 G&B 162-176 R&G&B 177-186 RGB Change 187-196 Red-Chase 197-206 Green-Chase 207-216 Blue-Chase 217-226 R&G-Chase 227-236 R&B-Chase 237-246 G&B-Chase 247-255 R&G&B-Chase CH14 LED Strip Speed 000-255 Speed from slow to fast 000-045 No Function 046-065...
- Page 14 Moving head light user manual DMX address setting Each fixture must set a specific starting address. When receiving signal transmission, fixture will receive channels control signals which from the starting address. According to different requirements or easy to use, the user can set many fixtures to the same address, also can set up a separately address for every device.
-
Page 15: Warranty Card
Moving head light user manual Attention Do not see directly light source when open the light, and make sure power off before do any installation or maintenance. CAUTION Wires connection must be done professional person! Warranty Card This product is made of high-brightness transistor. We will provide 1 year warranty under the condition that user has operated the light normally and lifetime service.
