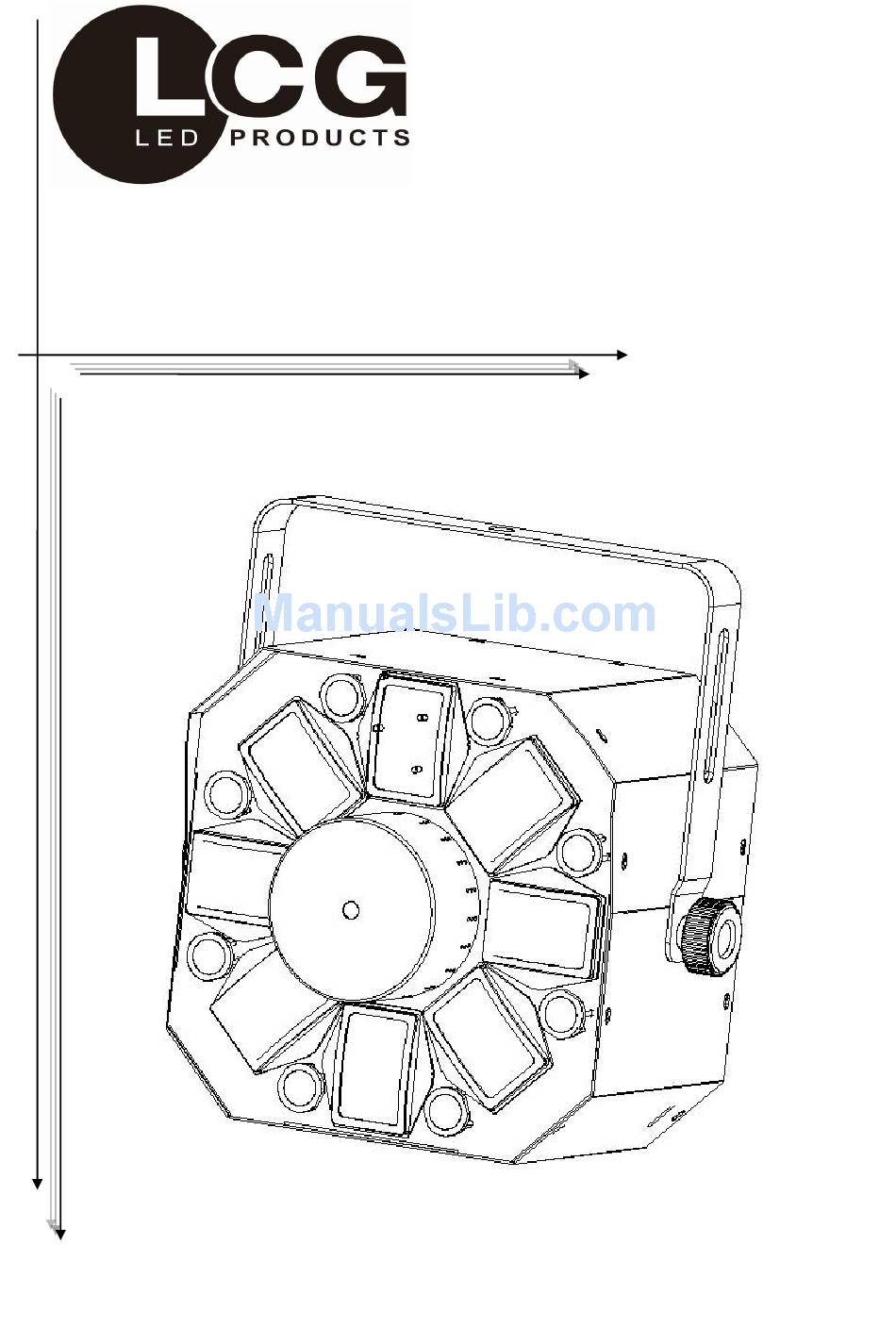

- Page 1 Mixlaser RB LCG-301C User Manual Please read this manual carefully before use!
- Page 2 Mixlaser RB User Manuel Contents Introduction----------------------------------------------------------------------------P2 Silkscreen on light ----------------------------------------------------------------P3 Safety instruction and product specification-------------------------------P4 Menu operation, function ---------------------------------------------------------P5 Channel instruction ------------------------------------------------------------------P6 Remote control ----------------------------------------------------------------------- P7 DMX-512 connection and Address setting-------------------------------------P8 Installation and Size --------------------------------------------------------------- P9 Warning and w arranty card------------------------------------------------------- P10 - - 1 - -...
-
Page 3: Introduction
Mixlaser RB User Manuel Introduction Thank you for purchasing this product. To optimize the performance of this product,prior to use,please read these operating instructions carefully to familiarize yourself with the basic operation of this unit.Please keep the manual in safe price for future reference. This unit has been tested at our factory before being shipped to you, there is no assembly required. -
Page 4: Silkscreen On Light
Mixlaser RB User Manuel Silkscreen on light ------------------------------------------------------------------------------- CE compliant ----------------------------------------------------------------------------- Only indoor use -------------------------------------------------------------------------- RoHS Certificate ---------------------------T he minimum distance from lighted objects(meter) ---------------------------------------------------------------- Max. Ambient Temp ------------------------------------------------------- Max. Housing Temp -------------------------------------------------------------------------- Safety caution ------------------------------------------------------------------------- Careful burns ----------------------------------------------------------------- Careful electric shock ---- Not suitable for directly installed on the surface of ordinary combustible materials... - Page 5 Mixlaser RB User Manuel 1.Safety Instructions 1)Please open and check whether break or not for transport once receive this fixture, if yes, not use it and contact dealer or manufacture as soon as possible. 2)The Max applicable temperature for the light is 40°C. Do not use the light under or above the temperature.
- Page 6 Mixlaser RB User Manuel LED Digital Display 、 A．（MENU） B．（UP） C．（DOWN） D．（ENTER） E．LED Display Operating Instruction: press button marked as “A” to select a function, For details, please see the “OPERATION MENU” section. Press button marked as “B” or button marked as “C” to modify values .
- Page 7 Mixlaser RB User Manuel 5、Channel Channel Value 0-255 Details Black- out Show 1，Led 10-39 40-69 Show 2, Strobe 70-99 Show 3, Laser CH1 Control Mode 100-129 Show 4, Led + Laser 130-159 Show 5, Led + Strobe 160-189 Show 6, Laser + Strobe 190-219 Show 7, Led + Strobe + Laser 220-255...
-
Page 8: Remote Control
Mixlaser RB User Manuel 6.Remote control menu: Button Function StandBy Stand By Inter DMX control mode Show 1，Led Show 1 Show 2, Strobe Show 2 Show 3, Laser Show 3 Show 4, Led + Laser Show 4 Show 5, Led + Strobe Show 5 Show 6, Laser + Strobe Show 6... -
Page 9: Dmx-512 Connection And Address Setting
Mixlaser RB User Manuel 7. DMX-512 connection 3-Pins DMX Out 3-Pins DMX In (Female) (Male) 1 Earth 2 DMX- 3 DMX+ 10CH for example （address 001） （address 011） First Second Third （address021） DMX in DMX out to next light 8、DMX address setting Each fixture must set a specific starting address. - Page 10 Mixlaser RB User Manuel 、Installation 1 Clamp 2 Handle When install this equipment please make sure there's no flammable surfaces (decorated things, etc) within at least 2.5M and maintain minimum distance of 0.5M from the equipment to the walls. Please make sure that there's no other equipment or decorating materials obstructed the exhaust fan and the vent-pipe.
- Page 11 Mixlaser RB User Manuel Declaration Cleaning and maintenance Cleaning should be performed every 15-day period, by using a sponge which is dipped with alcohol, rather than wet cloth or other chemical liquid, to clean the mirror. CAUTION Cut off power before cleaning and maintenance! Attention Do not see directly light source when open the light, and make sure power off before do any installation or maintenance.
