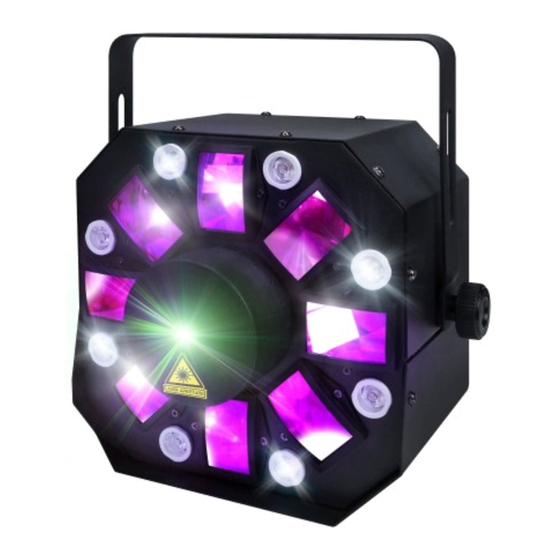

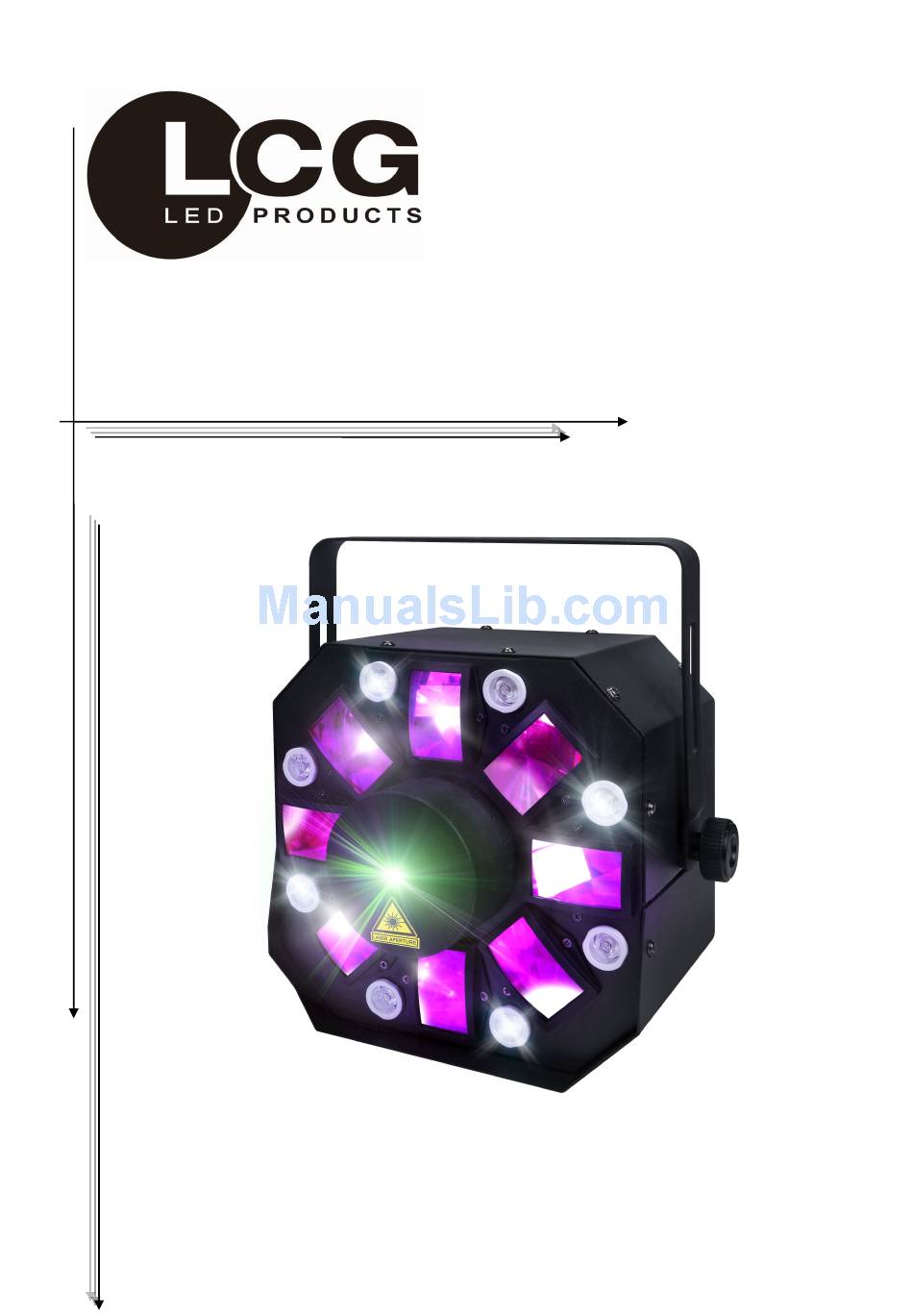

- Page 1 Mixlaser II LCG-301B User Manual Please read this manual carefully before use!
-
Page 2: Table Of Contents
Mixlaser II User Manual Contents Introduction----------------------------------------------------------------------------P2 Laser warning labels----------------------------------------------------------------P3 Safety instruction -------------------------------------------------------------------P4 Product specification---------------------------------------------------------------P5 Menu operation, function ---------------------------------------------------------P6 Channel instruction ----------------------------------------------------------------P7 DMX Connection -------------------------------------------------------------------- P8 Address setting ----------------------------------------------------------------- P8/P9 Structure and material -------------------------------------------------------P10/P11 Installation and Size --------------------------------------------------------------- P12 Maintenance and warning ----------------------------------------------------- P13 - - 1 - -... -
Page 3: Introduction
Mixlaser II User Manual Introduction Thank you for purchasing this product. To optimize the performance of this product, prior to use, please read these operating instructions carefully to familiarize yourself with the basic operation of this unit .Please keep the manual in safe price for future reference. This unit has been tested at our factory before being shipped to you, there is no assembly required. -
Page 4: Laser Warning Labels
Mixlaser II User Manual Laser warning labels Mixlaser II NON-INTERLOCKED HOUSING WARNING The Royal Sky contains high power laser devices internally. Do not open the laser housing, due to the potential exposure to unsafe levels of laser radiation. The laser power levels, if the unit is opened, can cause instant blindness, skin burns and fires. -
Page 5: Safety Instruction
Mixlaser II User Manual very small amounts of laser beam light are potentially hazardous even at long distances. Laser eye injuries can be sustained faster than you can blink. Do not think that because this laser splits the laser beam into hundreds of beams and that the laser beam is scanned out in high speed, that an individual laser beam is safe for eye exposure. -
Page 6: Lcg-301B
Mixlaser II User Manual temperature. ta=40℃ The fixture is applicable for many occasions, it should keep clean, and avoid long use in overheating or dusty environment. To prevent the fixture from the chemical liquid . User must be careful of fire, heat, electric and fall-off that make heavy or fatal injury. Please read this user manual carefully before power on and installation, following safety and operation instruction in it. -
Page 7: Menu Operation, Function
Mixlaser II User Manual LED Digital Display A．（MENU） B．（UP） C．（DOWN） D．（ENTER） E．LED Display Operating Instruction: press button marked as “A” to select a function, For details, please see the “OPERATION MENU” section. Press button marked as “B” or button marked as “C” to modify values . -
Page 8: Lcg-301B
Mixlaser II User Manual 2. Addr, Address setting，DOWN/UP to select 1-512 3. SLNd, Master/Slave setting 4. Auto，Auto mode 5. Soun，Sound mode 6. Vers，version Channel DMX-512Value 0-255 Details CH1 Control Mode Black- out 10-39 Auto Play1(Six colors LED auto） 40-69 Auto Play2（White LED auto） 70-99 Auto Play3（Laser auto）... -
Page 9: Dmx Connection
Mixlaser II User Manual 90-129 Red and Green 130-169 Red and Green flicker 170-209 Green and Red flicker Red, green synchronous flicker 210-249 Red, green alternative flicker 250-255 Laser Strobe Strobe Off Control 10-244 Strobe Speed（from slow to fast） 245-255 Laser strobe by sound LED Step Motor Step motor Off... -
Page 10: Lcg-301B
Mixlaser II User Manual and begin accepting DMX512 control signal, so that more convenient separate control one device. Using this method must be based on channel quantity of device to determine a starting address. This light has 10 channels. When you use 10CH, you should set the starting address of the first unit to 1, the second unit to 11(10+1), the third unit to 21 (11+10), and so on. -
Page 11: Structure And Material
Mixlaser II User Manual Structure and material - - 10 - -... - Page 12 Mixlaser II User Manual quantit Material No Model No. Name LCG-301B-04 Base plate 311003111 LCG-301B-05 Top cover 311006073 LCG-301B-03 Back plate 311002074 LCG-301B-02 Front plate 311001100 LCG-301B-06 Clapboard 311020001 LCG-301B-07 Handle 316001088 LCG-301B-09 Head cover 311012014 LCG-301B-08 Motor stand 1...
-
Page 13: Handle
Mixlaser II User Manual Installation 1 Clamp 2 Handle When install this equipment please make sure there's no flammable surfaces (decorated things, etc) within at least 2.5M and maintain minimum distance of 0.5M from the equipment to the walls. Please make sure that there's no other equipment or decorating materials obstructed the exhaust fan and the vent-pipe. -
Page 14: Power
Mixlaser II User Manual Declaration Cleaning and maintenance Cleaning should be performed every 15-day period, by using a sponge which is dipped with alcohol, rather than wet cloth or other chemical liquid, to clean the mirror. CAUTION Cut off power before cleaning and maintenance! Attention Do not see directly light source when open the light, and make sure power off before do any installation or maintenance.
