- Page 1 UV BAR18 LCG-UVB18 User Manual Please keep this manual for further use...
- Page 2 UV BAR18 www.lc-group.ca Contents Introduction-----------------------------------------------------------------------------P2 Silkscreen on product----------------------------------------------------------------P3 Safety instruction and product specification---------------------------------P4 LED display instruction and LED display operation ---------------------------------------------------------------P5 DMX512 channel chart ---------------------------------------------------------------P6 DMX512 connection and DMX address setting ------------------------------------------------------------------------------------P7 and installation Rigging -----------------------------------------------------------P8 Light outline / -------------------------------------------------P9 Cleaning /Attention Warranty-------------------------------------------------------------------------------P10 - - 1 - -...
-
Page 3: Product Introduction
UV BAR18 www.lc-group.ca Product Introduction Thank you using our LED series products. This fixture is the latest new LED product. It has aluminum die-cast housing with nice design, international advanced electronic control technology and excellent industrial design. Product effect more rich, colorful, and color is gorgeous because of installed high output light source. - Page 4 UV BAR18 www.lc-group.ca Silkscreen on light ------------------------------------------------------------------------ CE compliant --------------------------------------------------------------------- Only indoor use --------------------------------------------------------------------RoHS Certificate ---------------------- The minimum distance from lighted objects(meter) ----------------------------------------------------Max. Ambient Temp --------------------------------------------------Max. Housing Temp ---------------------------------------------------------------------- Safety caution ---------------------------------------------------------------------Careful burns -------------------------------------------------------electric shock caution ----Not suitable for directly installed on the surface of ordinary combustible materials - - 3 - -...
-
Page 5: Safety Instructions
UV BAR18 www.lc-group.ca 1.Safety Instructions Please open and check whether break or not for transport once receipt this fixture, if yes, not use it and contact dealer or manufacture as soon as possible. The Max Ambient temperature for the light is 40°C. Do not use the light when the ambient temperature is over 40℃... - Page 6 UV BAR18 www.lc-group.ca 4. LED display instruction A．Function button （MENU） B．UP button（UP） C．DOWN button（DOWN） D. Enter button（ENTER） E．LED display 5. LED display instruction chart UP/DOWN Default data Function MENU 1-512 Address setting Addr 20CH 20CH 20CH Chnd 2CH 1 2CH Mode 1 2CH 2 2CH Mode 2 Sh 0...
- Page 7 UV BAR18 www.lc-group.ca 6. DMX512 chart 2CH Mode 1 Value Function 0-255 All led dimmer 0-100% Dimmer No function Strobe 10-255 Strobe from slow to fast 2CH Mode 2 Value Function No function Mode option 10-255 Show mode option 0-249 Auto from slow to fast CH2 Auto speed/Sound 250-255...
-
Page 8: Dmx Address Setting
UV BAR18 www.lc-group.ca 7. DMX-512 controller connection 3pins XLR signal output connector 3pins XLR signal input connector (female) (male) 1: earth 2 : signal - 3 : signal + 8. DMX address setting Set an address for each light, and accept the DMX signal from DMX controller, as per the demand, user can set the same address for all lights, or different address for different light. - Page 9 UV BAR18 www.lc-group.ca 9. Rigging and installation 1. Hook clamp 2. Handle 1. The light can work properly when the ambient temperature is -25~40℃, do not use the light when the ambient temperature is over 40℃ or under -25℃. 2. The installation has to be built and constructed in a proper way that the rigging can hold 10 times of the light weight .
-
Page 10: Cleaning And Maintenance

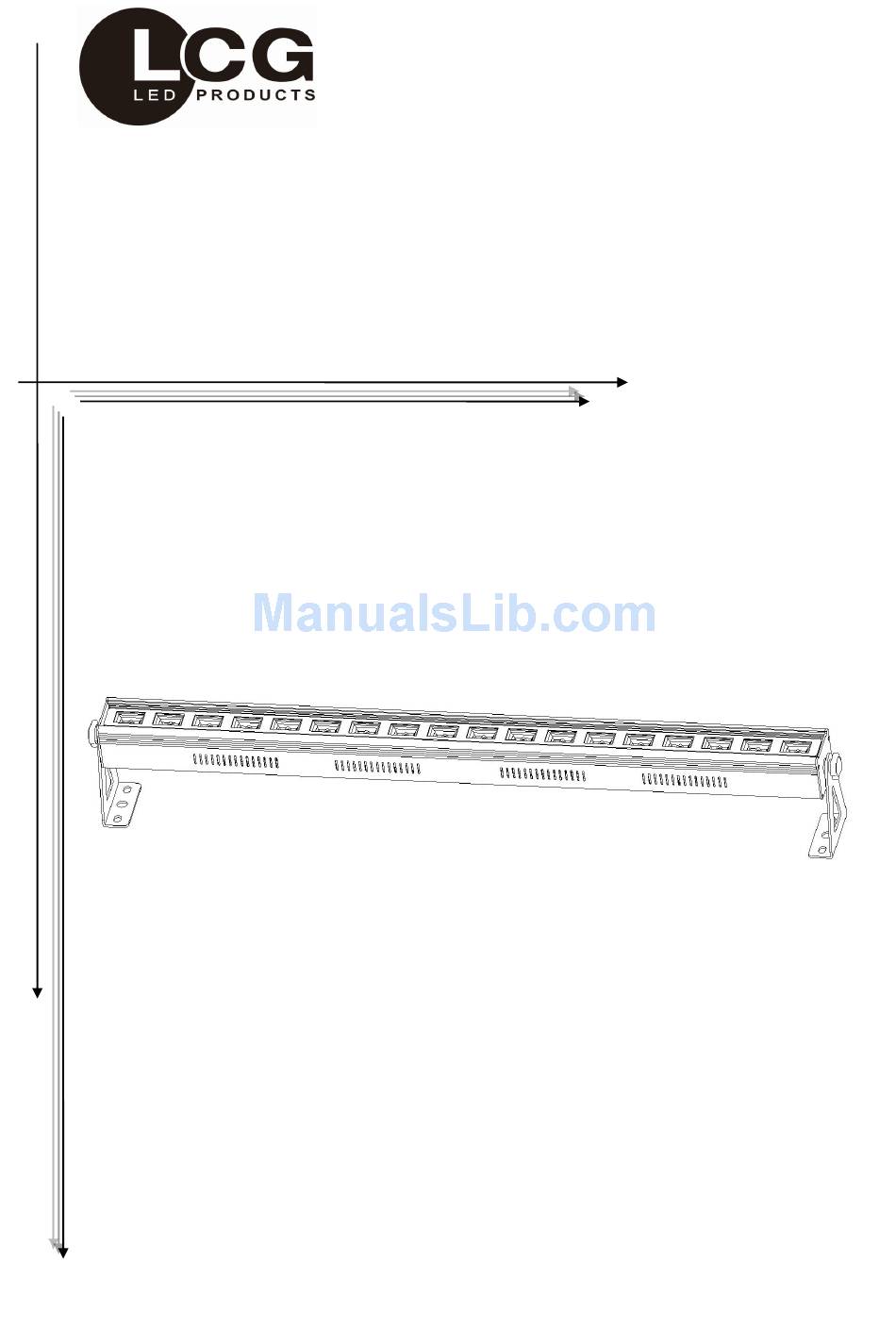

UV BAR18 www.lc-group.ca Light outline and dimension 10.Cleaning and maintenance Maintenance should be performed every 15-day period, by using a sponge which is dipped with alcohol, rather than wet cloth or other chemical liquid, to clean the mirror. Always disconnect from the mains when the device is not in use or before cleaning it. Caution Make sure power off before cleaning and maintenance! 11.Attention... - Page 11 UV BAR18 www.lc-group.ca Warranty Card We provide 2 year warranty under the condition that user has operated the light normally and lifetime service. We won't provide warranty if the damage is caused by artificial or force majeure event. Cost of fittings should be charged by user if product need maintenance after 1 year .Please cut this warranty card and shipped it along with the product to our factory when applying for warranty.
