Summary of Contents for LXE VX8

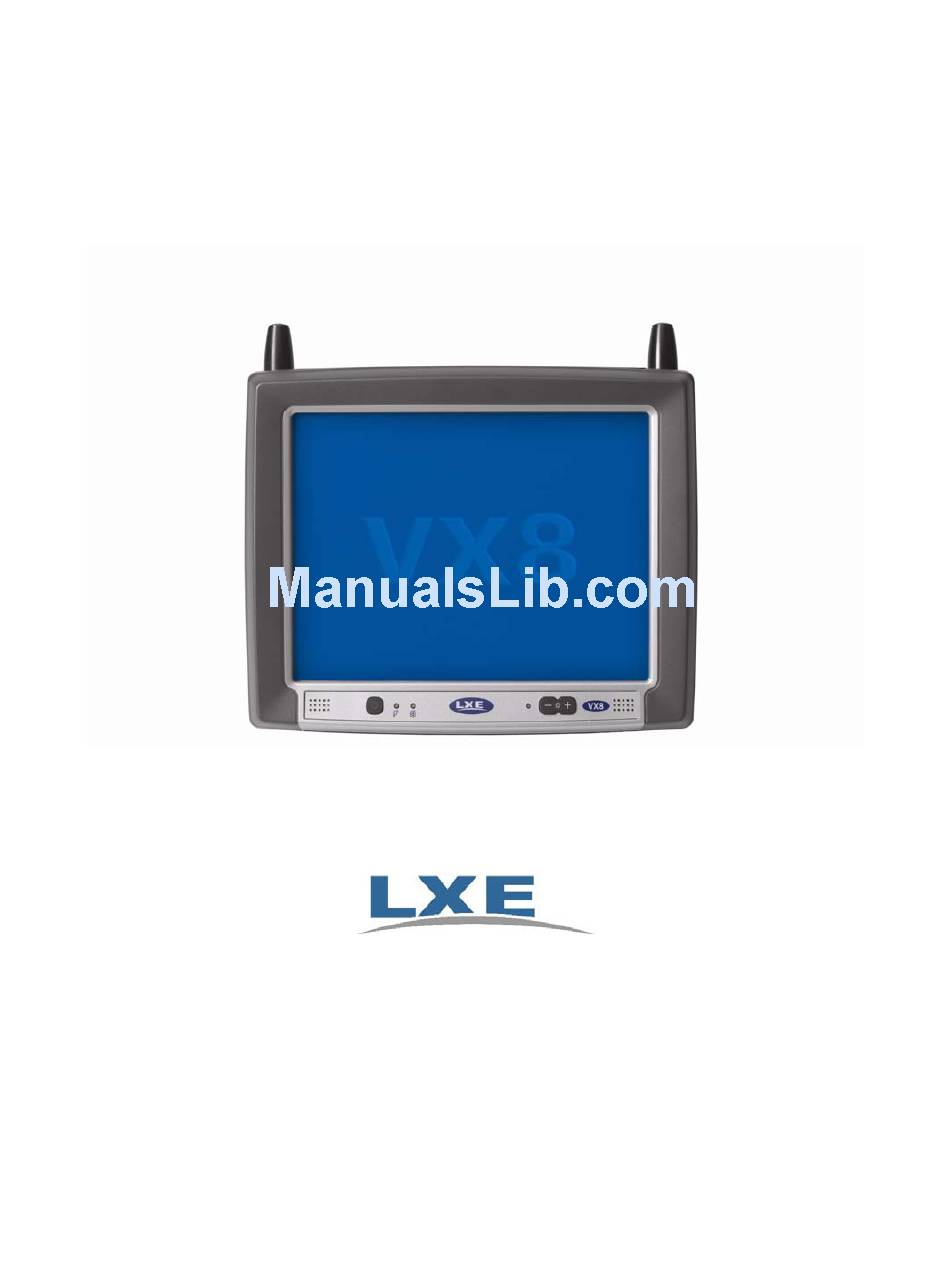

- Page 1 VX8 User’s Guide Copyright © March 2009 by LXE Inc. All Rights Reserved E-EQ-VX8OGWW-A...
- Page 2 WLinq is a trademark of FreeFloat, AB. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LXE, Inc. is under license. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.
-
Page 3: Table Of Contents
The Keyboards ......................7 LXE 95-key QWERTY Keyboard with Pointing Device............8 Key Maps ..........................8 NumLock and the VX8........................8 CapsLock, Scroll Lock and the VX8 ....................8 Keyboard Backlight........................9 LXE 60-key QWERTY Keyboard..................10 Key Maps ..........................10 Unused Key Functions ......................11 NumLock and the VX8 ......................11... - Page 4 Step 1 – Mount Vehicle RAM Ball(s)..................21 Step 2 – Prepare VX8......................22 Step 3 – Attach Keyboard to Bracket...................24 Step 4 – Attach VX8 and Keyboard Assembly to RAM Base..........25 Completed Assembly......................26 Removing the Port Lid.................... 27 Connect Keyboard ....................28 LXE VMT Keyboard......................28...
- Page 5 Figure 19 Connect Serial Scanner Cable ......................29 Figure 20 Generic Barcode Scanner ........................29 Figure 21 External USB Ports..........................30 Figure 22 Connect Ethernet Cable ........................31 Figure 23 Connect External Headset .........................31 Figure 24 Connect Power Cable to VX8 ......................32 E-EQ-VX8OGWW-A VX8 User’s Guide...
- Page 6 Figure 30 Strain Relief Brackets........................37 Figure 31 Applying Cable Protection Tube .......................37 Figure 32 Mounting the Port Lid ........................38 Figure 33 The VX8 Power Switch........................39 Figure 34 Screen Brightness Controls .......................42 Figure 35 Caution Labels Class II Scanner......................44 Figure 36 Caution Labels Class IIIA Scanner ....................44 Figure 37 Scan Beam ............................46...
-
Page 7: The Vx8 Vehicle Mount Computer
Microsoft Windows icons that the Windows XP operating system supports. An illuminated keyboard is available to facilitate use in dimly lit areas. The VX8 provides the power and functionality of a desktop computer in a vehicle mounted unit, with a wide range of options: •... -
Page 8: Document Conventions
-22°F to 122°F (-30°C to 50°C) [non-condensing] Water, Sand Dust IP65 per IEC60529 According to: IEC 60068-2-64, Test Fh Vibration Vibration tested According to: IEC 60068-2-29, Test Eb Bump Shock tested Moisture tested According to: IEC 60068-2-30, Test Db VX8 User’s Guide E-EQ-VX8OGWW-A... -
Page 9: Quick Start
(e.g. antenna, external keyboard and/or barcode scanner) and a power source. Use this guide as you would any other source book -- reading portions to learn about the VX8, and then referring to it when you need more information about a particular subject. This guide takes you through installation and operation of the LXE VX8. -
Page 10: Components
Components Components 10 11 12 Figure 1 VX8 Components, Bottom Position Function Power supply (12V DC 50W) Mic. in Audio out COM2 RS232 +12V COM1 RS232 +5V VGA (external monitor) Multipurpose connector (USB 2.0, RS232, +12 V) RJ-45 Ethernet 10/100 (LAN) 2x USB 2.0... -
Page 11: Figure 3 Vx8 Components, Front
Screen Brightness 1. Power 2. UPS Mode 3. Hard Drive 4. Light Sensor Figure 3 VX8 Components, Front Function Power LED Off and not powered Off (no light) Off but powered Green flash very slow Operating normally Green on Suspend... -
Page 12: The Full-Screen Display
The Full-Screen Display The Full-Screen Display The VX8 Display is a TFT color unit capable of supporting SVGA graphics modes. The maximum resolution is 800 x 600 pixels. Microsoft Windows Control Panel The Microsoft Windows Control Panel and System Tray icons panel provide standard Windows options for configuring the VX8, such as: •... -
Page 13: The Keyboards
The following keyboard options are available for the VX8: • LXE VMT 95-key QWERTY keyboard with integrated pointing device – a customized rugged keyboard connected to the VX8 via an adapter cable. • LXE VMT 60-key QWERTY keyboard – a customized rugged keyboard connected to the VX8 via an adapter cable. -
Page 14: Lxe 95-Key Qwerty Keyboard With Pointing Device
Designed for ease of use with Windows operating systems, the 95-key keyboard with pointing device connects via a cable to the PS/2 ports on the VX8. Additional Windows keys (the Windows logo key and the Application key) and an integrated pointing device are provided for ease of use with Windows operating systems. -
Page 15: Keyboard Backlight
Pressing the backlight key cycles the keyboard backlight through the levels of backlight intensity: • • Maximum intensity • Medium intensity • Low intensity. Note: The 2 key function is available on the 60-key keyboard only. E-EQ-VX8OGWW-A VX8 User’s Guide... -
Page 16: Lxe 60-Key Qwerty Keyboard
The 60-key keyboard supports all 101 keyboard functions. However, because the keyboard only has 60 keys, all functions are not visible (or printed on the keyboard). Therefore the VX8 keyboard supports what is called hidden keys -- keys that are accessible but not visible on the keyboard. -
Page 17: Unused Key Functions
The Keyboards Unused Key Functions There are several key functions on the 60-key keyboard that are not used on the VX8. These include: • <2nd> <F3> – The Resume/Suspend function is not used as Microsoft Windows controls all power management modes. -
Page 18: Caps Led
> and <F1> to turn CapsLock on and off. Press <2 > and <↑> to initiate the PgUp command. Press <2 > and <Q> to type the “!” key. Press <2 > and <BkSp> to enter the Insert (Ins) mode. VX8 User’s Guide E-EQ-VX8OGWW-A... -
Page 19: Control Keys
The Keyboards Control Keys The VMT keyboard has several control keys. Because of the construction of the VX8 and the Microsoft Windows operating system, many of the Control Keys are not used on the VX8. Note: The 2 functions of the <F4> and <F5>keys are not used as the display brightness is adjusted via the buttons on the VX8. -
Page 20: General Windows Keyboard Shortcuts
The Keyboards General Windows Keyboard Shortcuts Use the keyboard shortcuts in the chart below to navigate with any VX8 keyboard. These are standard keyboard shortcuts for Windows applications. Press these keys … To … CTRL + C Copy CTRL + X... -
Page 21: Non-Lxe Keyboard/Mouse
The Keyboards Non-LXE Keyboard/Mouse The VX8 accepts a PS/2 keyboard and/or mouse attached to the VX8 using the PS/2 ports. Please refer to documentation provided with the PS/2 keyboard and mouse for more information on their operation. Software Keyboard The optional software keyboard provides a virtual keyboard on the touchscreen. -
Page 22: Power Supply
An Uninterruptible Power Supply (UPS) is built into the VX8 to provide power for short periods of time when vehicle power is unavailable (such as when vehicle batteries are swapped). The UPS, when enabled, can be used to power the VX8 for a specified period of time before shutdown. -
Page 23: Getting Help
LXE website. Contact your LXE representative to obtain the LXE Manuals CD. You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals CD, in the file titled “Contacting LXE”. This information is also available on the LXE website www.lxe.com. - Page 24 Manuals and Accessories VX8 User’s Guide E-EQ-VX8OGWW-A...
-
Page 25: Installation
This device is not to be co-located with other transmitters. Several types of mounts are provided for the VX8. For a complete listing of mounting kits and the contents of each kit, please refer to the VX8 & VX9 accessory catalog. This catalog is available at www.lxe.com... -
Page 26: Ram Mount System
C-sized (1.5”) balls and arms Used to mount the VX8 when dual RAM balls are ordered on the back of the VX8. A pair of C- sized balls is also used on the truck. -
Page 27: Mounting Procedure
Determine the position for mounting the RAM ball(s). Be sure to position the RAM ball(s) to allow access to the switches and ports on the bottom of the VX8. Depending on the options ordered with the VX8, the RAM ball may be: •... -
Page 28: Step 2 - Prepare Vx8
The VX8 is delivered with one or two RAM balls installed depending on the configuration ordered. If an integrated keyboard bracket is to be mounted to the rear of the VX8, follow the procedure below. Otherwise, skip to the next step. - Page 29 Install the 1.5” (C-size) RAM ball on the keyboard bracket using four M5 locking nuts. Install the keyboard bracket and the 2.25” (D-Size) RAM ball (removed previously) onto the back of the VX8. Use three M5x20 screws with three tapered washers. 1. 1.5” RAM ball 2.
-
Page 30: Step 3 - Attach Keyboard To Bracket
Excess keyboard cable length can be looped around the hooks on the bottom of the keyboard mounting plate. Other Keyboards A generic keyboard plate is provided for non-LXE keyboards. 1. Attach the RAM ball to the keyboard mounting plate. 2. Attach the keyboard to the keyboard mounting plate. The mounting kit DOES NOT include hardware to attach the keyboard to the plate. -
Page 31: Step 4 - Attach Vx8 And Keyboard Assembly To Ram Base
Single RAM ball 1. Use a single D-sized RAM arm to attach the VX8 assembly to the RAM ball on the vehicle. 2. Use a single C-sized RAM arm to attach the keyboard assembly to the C-sized ball on either the VX8 keyboard bracket or a C-sized ball on the vehicle. -
Page 32: Completed Assembly
Install Mounting Brackets Completed Assembly Samples of completed VX8 bracket assemblies are shown below VX89A021KIT21 including VX89A025KIT25 including RAM ball base and RAM ball base and LXE generic keyboard bracket keyboard bracket Figure 15 Completed RAM Mount Assembly VX8 User’s Guide... -
Page 33: Removing The Port Lid
Removing the Port Lid Before any cables can be attached to the VX8, the port lid must be removed. The port lid is held in place with eight (8) Torx 20 screws. Remove the screws and the port lid and set aside for reinstallation once all accessories are attached. -
Page 34: Connect Keyboard
5. Turn the VX8 on. Non-LXE Keyboard or Mouse A PS/2 keyboard and mouse can be connected directly to the VX8. The green PS/2 connector on the VX8 is for the keyboard, the purple PS/2 connector is for a mouse. -
Page 35: Connect Serial Barcode Scanner
Seat the connector firmly over the pins and turn the thumbscrews in a clockwise direction. Do not overtighten. When you have finished using the scanner, remove it from the VX8 and store the scanner in a closed container or bag. -
Page 36: Connect Usb Devices
The VX8 provides an internal USB port and an external USB. Internal USB Port An internal USB port is provided behind the user access panel on the top of the VX8. Loosen the screws securing the access panel cover so the cover can be removed. -
Page 37: Connect Ethernet Cable
To remove the Ethernet cable, press the release tab on the cable end. Connect External Headset The VX8 provides an external headset connection via an audio jack connector and a microphone to a separate microphone jack connector. The connectors are color keyed and marked with the headset and microphone symbols. -
Page 38: Connect Power Cable
Connect the appropriate detachable cordset to the external power supply. Plug cordset into appropriate, grounded, electrical supply receptacle (AC mains). Connect the watertight connector end to the VX8’s Power Connector by aligning the connector pins to the power connector; push down on the watertight connector and twist it to fasten securely. -
Page 39: Vehicle 12-80Vdc Power Connection
Connect Power Cable Vehicle 12-80VDC Power Connection Connecting Cables to Power Sources The DC to DC converter is used to power the VX8. The converter must be used with the VX8 regardless of vehicle voltage. Specifications for electrical supply Input... -
Page 40: Figure 26 Dc To Dc Converter
The computer must be powered off. Begin by connecting the power cable to the VX8. Work from this connection with the last connection being to the vehicle’s power source. Route the cable from the VX8 to the DC to DC converter and, optionally, the blackout screen box. -
Page 41: Wiring Schematic Without Blackout Screen Box
Connect Power Cable If the blackout screen box is used for the VX8 installation, attach the stripped wire ends to the box. Refer to the applicable following diagram and the label on the blackout screen box for proper wiring connection. -
Page 42: Wiring Schematic With Blackout Screen Box
Connect Power Cable Wiring Schematic with Blackout Screen Box Figure 29 Power Cable Routing with Blackout Screen Box VX8 User’s Guide E-EQ-VX8OGWW-A... -
Page 43: Strain Relief Cable Clamps
Figure 31 Applying Cable Protection Tube Before mounting the port lid, fit the cable tube in the sockets of the chassis and lid. Then secure the port lid as detailed below. E-EQ-VX8OGWW-A VX8 User’s Guide... -
Page 44: Securing Port Lid
(IP65 requirement). There are eight (8) Torx 20 screws securing the port lid. Figure 32 Mounting the Port Lid Fasten the cable tube in the vehicle, without putting strain on the tube. Now the VX8 is ready to be mounted in the vehicle. -
Page 45: Operation
Connect the VX8 to a power source, either AC or Vehicle. The power (on/off) switch is located on the front of the VX8. The switch is sealed by a rubber membrane. The Status LED on the VX8 is illuminated when the power is on: Press the power switch to start the VX8. -
Page 46: Reset Key Sequence (Reboot)
Windows application or reboot the computer. The keypress brings up the “Task Manager” window. To reboot the VX8 without turning the computer off, press <CTRL> + <ALT> + <DEL> and select Shut Down from the Task Manager window. When the system is rebooted, Windows performs a controlled shutdown, closing any open programs, before shutting down the Windows operating system. -
Page 47: Keyboard Backlight
Keyboard Backlight Keyboard Backlight LXE VMT keyboards feature LEDs that illuminate the individual keys. 95 Key Keyboard The backlight is manually controlled using the “backlight” key in the upper right hand corner of the keyboard. Pressing the backlight key cycles the backlight through the levels of backlight intensity: •... -
Page 48: Display And Touchscreen
An extra or replacement stylus may be ordered from LXE. See the “Accessories” section for the stylus part number. Adjusting Screen Display The color TFT display is an active source of light. The VX8 display brightness can be adjusted via the brightness control buttons located on the VX8. Figure 34 Screen Brightness Controls Screen brightness is adjusted using the buttons (+) or (-) on the front of the VX8. -
Page 49: Calibrating The Touchscreen
All Power Management is handled through the Microsoft Windows Control Panel. System standby and turning the monitor and hard disk off are accessed from the Power Management icon. For more information consult the VX8 Reference Guide or the system administrator responsible for the configuration of the VX8. -
Page 50: Laser Barcode Scanner Warnings
Do not pour, spray, or spill any liquid on the scanner. The Barcode Scanner contains the circuitry, scanning motor and laser. Handle with appropriate care. Enter Data You can enter data into the VX8 through several different methods: • The tethered scanner connected to the COM1 serial port provides barcode data entry •... -
Page 51: Keyboard Entry
The keyboard is used to manually input data that is not collected otherwise. Almost any function that a full sized computer keyboard can provide is duplicated on the LXE VMT keyboard but it may take a few more keystrokes to accomplish a keyed task. -
Page 52: Scanner Entry
Scanner Entry The following section is directed toward a generic tethered scanner connected to the COM1 serial port on the VX8. Aiming the Barcode Scanner Aim the scanner away from you, direct it at the barcode and press the trigger to scan. -
Page 53: Appendixa Key Maps
Ctrl Enter Figure 38 95-Key VMT QWERTY Keyboard The key map table that follows lists the commands used for the VX8. When running LXE’s RFTerm™ program, please refer to the RFTerm™ Reference Guide for equivalent keys and keypress sequences: Key Map 101-Key Equivalencies There are ten hidden keys on the 95-key keyboard. -
Page 54: 60-Key Standard Keypad
PgDn Home Figure 39 60-Key VMT QWERTY Keyboard The key map table that follows lists the commands used for the VX8. When running LXE’s RFTerm™ program, please refer to the RFTerm™ Reference Guide for equivalent keys and keypress sequences: Key Map 101-Key Equivalencies When using a sequence of keys that includes the <2... - Page 55 Left Arrow Insert Ins/BkSp Delete (numeric) Home Left Arrow Right Arrow Page Up Up Arrow Page Down Down Arrow Right Shift Right Alt Right Ctrl ScrollLock NumLock Press <Ctrl> then <2 > then <F2> to produce Ctrl-Break. E-EQ-VX8OGWW-A VX8 User’s Guide...
- Page 56 60-key Standard Keypad Press These Keys and Then To get this key Press this key Shift Ctrl CapsLock VX8 User’s Guide E-EQ-VX8OGWW-A...
- Page 57 2 (numeric) 3 (numeric) 4 (numeric) 5 (numeric) 6 (numeric) 7 (numeric) 8 (numeric) 9 (numeric) 0 (numeric) DOT (numeric) < > / (numeric) / (alpha) - (numeric) - (alpha) + (numeric) + (alpha) * (numeric) E-EQ-VX8OGWW-A VX8 User’s Guide...
- Page 58 60-key Standard Keypad Press These Keys and Then To get this key Press this key Shift Ctrl CapsLock * (alpha) : (colon) ; (semicolon) _ (underscore) , (comma) ‘ (apostrophe) ~ (tilde) “ & VX8 User’s Guide E-EQ-VX8OGWW-A...
-
Page 59: Appendixb Regulatory Notices And Safety Information
