Visonic POWERMAX+ Installation Instructions Manual page 4

1
Open
keypad
cover
BATTERY
AREA
COVER
SLOT
Push the bracket as shown
4
2
Release battery
area cover
5
and then remove it
Locate the panel on the bracket
projections, pull down and lock the
bracket with locking screw (see step 4).
3
Remove battery
area cover
Special
plastic
washer
Mounting
surface
7

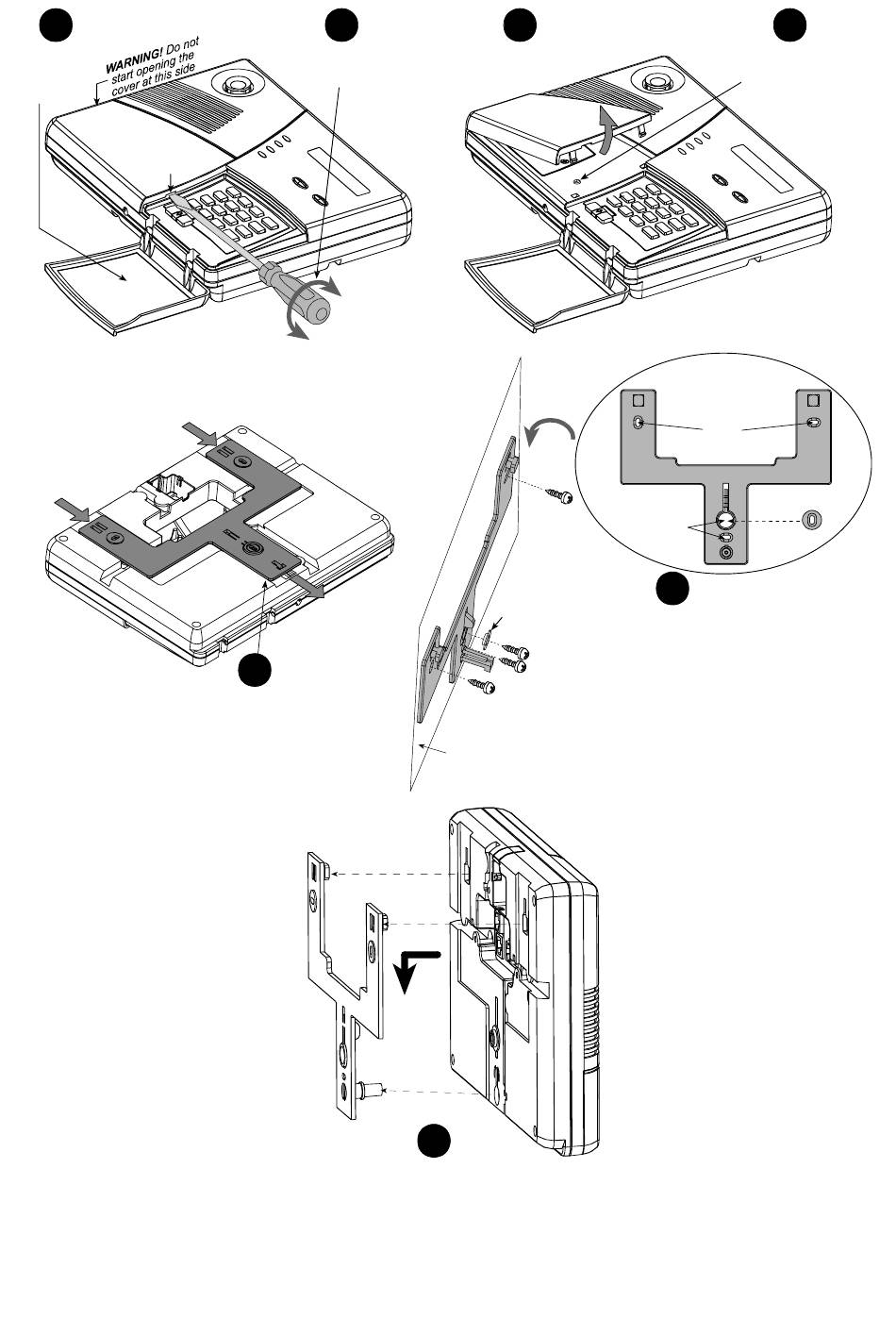

Figure 2 - Mounting
Remove bracket
locking screw
Screw
holes
Screw
holes
6
Mark and drill 4 holes in
mounting surface. Insert
wall anchors and fasten the
bracket to the mounting
surface with 4 screws
NOTE
Verify that there is 3 cm (1.25 in.)
free space around the bracket
4
Special plastic
washer
