7. For application hookup to Altronix eBridge IP/PoE over coax products:
a. eBridge4PCRX - Connect either one (1) or two (2) eBridge4PCRX to VertiLine563.
Connect first eBridge4PCRX Input to VertiLine563 terminals marked [--- OUT1 +]. If applicable,
connect second eBridge4PCRX Input to VertiLine563 terminals marked [--- OUT2 +] (Fig. 1, pg. 1, Fig. 4, pg. 3),
carefully observing polarity.
b. eBridge16PCRX - Connect eBridge16PCRX Input 1 to VertiLine563 terminals marked [--- OUT1 + ], connect
eBridge16PCRX Input 2 to VertiLine563 terminals marked [--- OUT2 +] (Fig. 1, pg. 1, Fig. 5, pg. 3),
carefully observing polarity.
7. When batteries are not used, a loss of AC will result in the loss of output voltage. When the use of stand-by batteries
is desired, they must be lead acid or gel type. Connect four (4) 12VDC batteries wired in series to terminals marked
[+ BAT --- ] (Fig. 1, pg. 1), carefully observing polarity.
8. Plug power cord into grounded 115VAC 60 Hz receptacle to energize unit (Fig. 2a, pg. 2).
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or
moisture. This installation should be made by qualified service personnel and should conform to
all local codes and in accordance with the National Electrical Code.
The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the
presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that may be of sufficient
magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Parameter
No. of outputs
Input power requirements 115VAC 60Hz, 4.9 amp.
Indicators
Battery Backup
Environmental Conditions
Regulatory Compliance

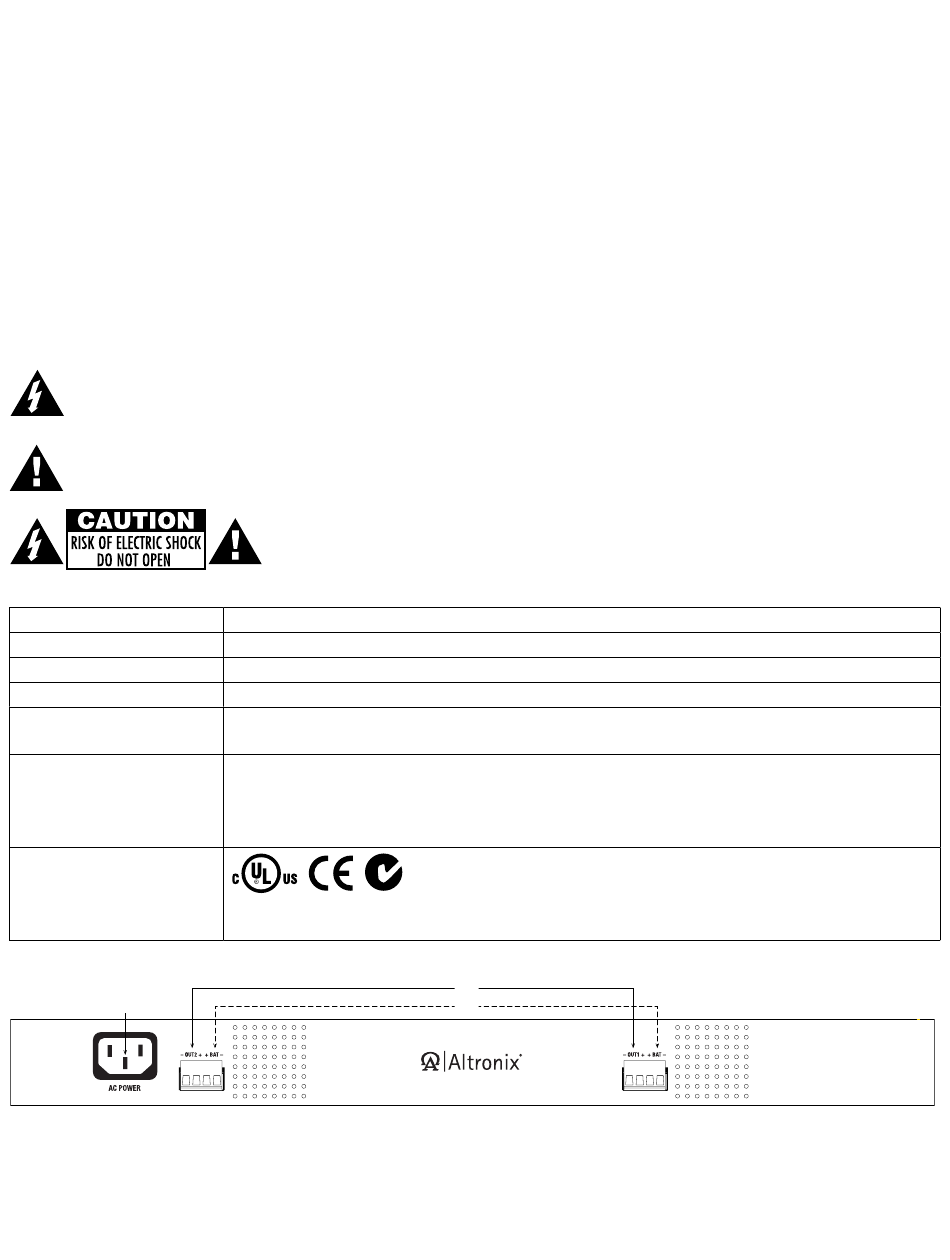

Fig. 2 - VertiLine563 rear callout
2a
2a. IEC 320 - 3-wire grounded line cord (detachable).
2b. 56VDC @ 3 amp per output.
2c. Stand-by battery connections. Maximum charge current 0.3 amp.
- 2 -
CAUTION: To reduce the risk of electric shock do not open enclosure. There are
no user serviceable parts inside. Refer servicing to qualified service personnel.

Technical Specifications:

Description
Two (2) outputs. Each output rated @ 150W each. Current per output = 2.7 amp.
AC LEDs one (1) per power supply.
Battery stack is 4x 12VDC lead acid gel cells connected in series.
Battery backup one (1) per power supply.
Operating Ambient Temperature - UL60950-1: 32ºF to 104ºF (0ºC to 40ºC).
Relative humidity: 85%, +/ --- 5%
Storage Temperature: --- 4º to 158ºF (--- 20º to 70ºC) Storage
Operating Altitude: --- 1000 to 10,000 ft. (--- 304.8 to 3048m).
UL/CUL Listed for Information Technology Equipment (UL 60950-1).
CE approved, C-Tick compliant.
Z1409
2b
2c
VertiLine563
