Altronix VertiLine563 Installation Manual page 4

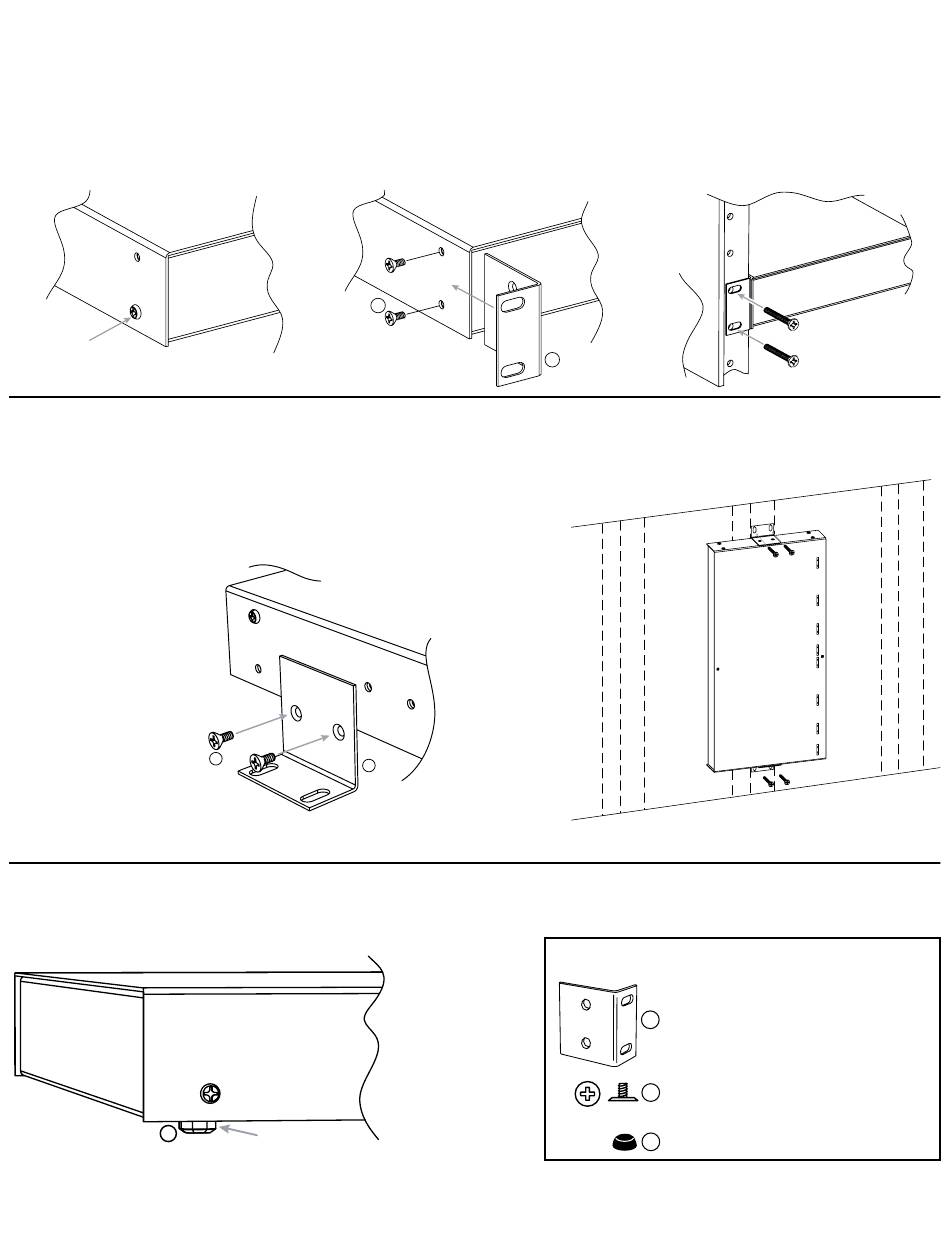

Rack Mount Installation
1- Remove and discard factory installed screws from both sides of rack chassis (Fig. 6a).
2- Install mounting brackets (A) on the left and right side of rack chassis using the
four (4) flat head screws (B) (included) (Fig. 6b).
3- Place unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 6c).
(Space unit at least 3" from any video monitors). Do not obstruct side air vents.
Fig. 6
Fig. 6a
Top
Front
Left
Remove
Wall Mount Installation
1- Install mounting brackets (A) on the left and right side of rack chassis using four (4) flat head
screws (B) (included) (Fig. 7a).
2- Place unit at desired location and secure with mounting screws (not included) (Fig. 7b).
Caution: It is necessary to make sure mounting screws are securely
fastened to a beam when installing the unit vertically.
Fig. 7
Shelf Installation
1- Position and affix rubber pads (C) (included) at each corner on the bottom of the unit (Fig. 8).
2- Place unit in desired location.
Fig. 8
C
- 4 -
Mounting Options:
Fig. 6b
B
Fig. 7a
B
A
Left Side
Rubber Feet
Fig. 6c
Top
Front
Left
A
Fig. 7b
Mounting Hardware
Top
Front Left
Dotted lines indicate studs
behind sheetrock.
(Included):
Two (2) mounting brackets
A
Six (6) flat head screws
B
for mounting brackets.
Four (4) rubber pads.
C
VertiLine563
