■PV compensation gain setting /Zero Setting of PV Correction

Character
1 Setting Mode Selection
SET1
Screen
INP
Input Parameter Mode
3 PV compensation gain
PVG
setting
4 PV compensation zero
PVS
setting
●PV compensation gain setting
[Function]
Multiplies PV (measurement value) of input with the correction value.
[Sample Setting]

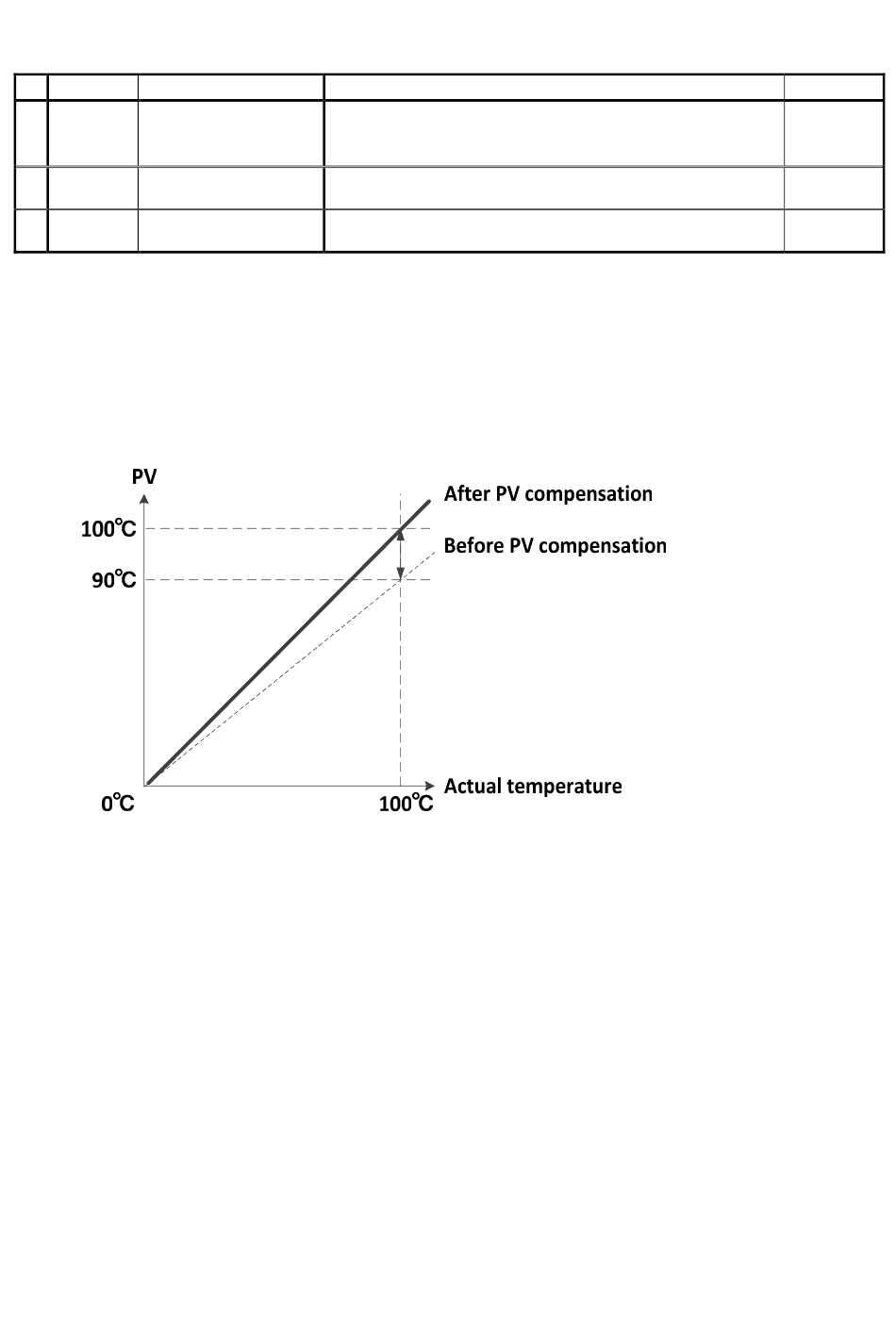

In case PV is displayed as 90°C in an environment where the actual temperature is 100°C, PV can still be adjusted to
100°Cby setting the gain of PV correction to 1.11 (times). [Computation formula = 90°C(before PV correction) x 1.11
times = approximately 100°C]
Name
Settings about Input
Setting Range: 0.50–2.00
Setting Unit: Times
Setting Range: -199–999 or -199.9–999.9
Setting Unit: °C or °F
Description
24
Initial Value
100
0
