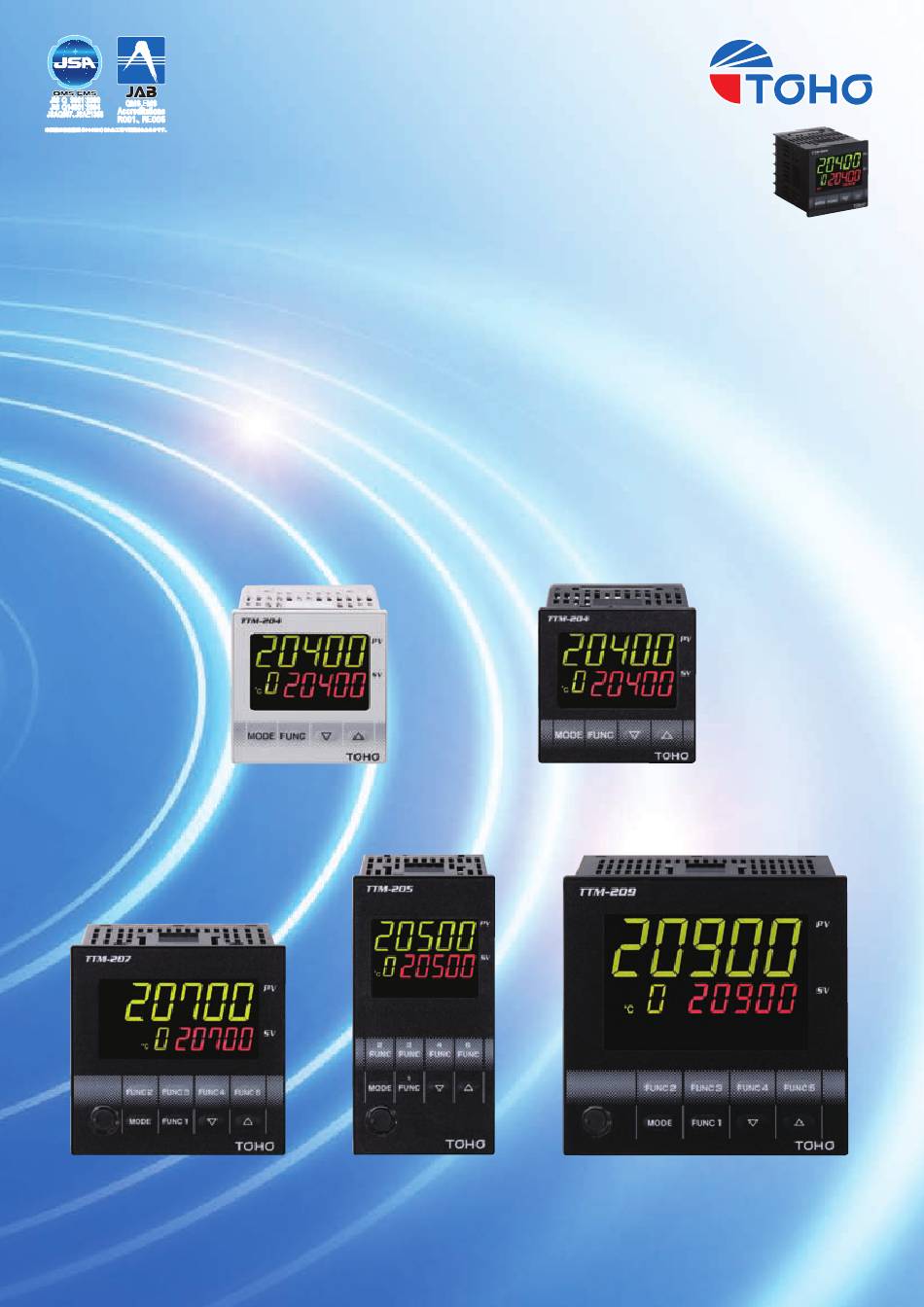

TTM - 200
DIGITAL CONTROLLER
TTM-204 （ Gray）
TTM-207
TOHO ELECTRONICS INC.
TTM-204 （ Black）
TTM-205
TTM-204
TTM-209
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TOHO TTM-200 Series
Summary of Contents for TOHO TTM-200 Series
- Page 1 JIS Q 9001 ： 2000 QMS,EMS QMS,EMS JIS Q14001 ： 2004 Accreditations Accreditations JSAQ097、 JSAE1356 R001、 RE005 R001、 RE005 本製品は審査登録 （ISO9001） された工場で製造されたものです。 本製品は審査登録 （ISO9001） された工場で製造されたものです。 TTM - 200 TTM-204 DIGITAL CONTROLLER TTM-204 （ Gray） TTM-204 （ Black） TTM-207 TTM-205 TTM-209 TOHO ELECTRONICS INC.
- Page 2 TTM - 200 DIGITAL CONTROLLER ■Features ●Improvement of the controllability with new PID ●Valve position proportionality control algorithm The function carries out valve position proportionality control without feedback resistance. ①Time until it is stabilized from a control start is shortened ●Two choices of case colors (Available only for TTM-204) ②Loading the jump less control which controls the overshoot after the disturbance...
-
Page 3: Standard Specifications
■Standard specifications Input type Thermocouple K, J, T, E, R, S, B, N, U, L, WRe5-26, PR40-20, PLII (Input resistance 1MΩ) Pt100, JPt100 Electric current / voltage 4 to 20mADC (Input resistance 250Ω), 0 to 1VDC, 0 to 5VDC, 1 to 5VDC, 0 to 10VDC, 0 to 10mVDC (Input resistance 1MΩ or more) Indication PV/Character indication LCD indication (with LED back light, luminous colors are Red, Orange and Green) - Page 4 Loader communication Communication standard RS-485 (1:31) TTL (1:1) Communication terminal Terminal stand Loader communication private terminal Protocol TOHO exclusive protocol/MODBUS (RTU)/MODBUS (ASCII) TOHO exclusive protocol/MODBUS (RTU)/MODBUS (ASCII) Direction of information Half duplex Half duplex Synchronous system Asynchronous Asynchronous Transmission code...
- Page 5 ■Option Specifications (Continued) Remote SV Input Input Type (Current/Voltage Multi-Input) 0 to 1VDC, 0 to 5VDC, 1〜5VDC, 0 to 10VDC, 4 to 20mADC Measurement/Range of Setting －19999 to＋29999 (decimal point can be set at any location) Range of Display (Full Scale: Range 0 to 1VDC, 0 to 5VDC, High Limit: ＋12% of full scale of FSL2 to FSH2)
- Page 6 ■Timer drive mode ■Point of contact output mode Start mode Event function 1 Event function 2 Event function 3 (PV abnormal) (CT abnormal) Auto start Function Manual start Function Function Deflection upper and SV start lower limit Exsist CT1 abnormal DI1 start (Possible to set when option is equipped) Deflection upper limit Addition function...
- Page 7 ■Wiring ※Please use less than 6mm width terminal TTM-204 Open Collector Relay Output Output ＋ 7 Output3※ Relay Other Power Communication (RS-485) ＋ Output4※ Output Output RTD TC/10mV − − Output3 ・ 4※ Output1 ＋ ＋ DI1 （ COM） CT Input DI Input Input −...
- Page 8 ■Dimensions TTM-204 TIME OUT1 OUT2 OUT3 OUT4 RDY COM DI1 DI2 TMR MODE FUNC TOHO Packing For mounting a single For mounting n pieces Model ＋0.6 ＋0.6 ＋0.6 TTM-204 55 （Bxn－3） －0 －0 －0 ＋0.6 ＋0.6 ＋1 TTM-205 120 48 65 （Bxn－3） －0 －0 －0 ＋0.6 ＋0.6...
- Page 9 ■Advanced Features ●PID control by new algorithm ●Timer function 1. In the case of bread baking oven ●Put dough in the oven, and push the start key to the timer. ●The temperature is controlled by the heater and so on for the timer setup time. ●After timer count end control is stopped automatically (It is used when making control STOP after the timer count ends.) NEW PID...
- Page 10 Manual control Manual control Auto control ◦How to use Balance-less Bump-less 1. Perform communication protocol settings to the TOHO protocol. Balance-less Bump-less Previous 2. In the communication changeover setting, set the channel, in which the temperature manipulated variable reaches the goal value latest, to the simultaneous temperature rise master, and then...
- Page 11 ●Bank function ●Position proportional control 8 banks each with 16 setting that can be changed as optional parameter. ■Position proportional control ・According to the operation amount required for PAD control, the valve opening is A desired state can be reached by adjusting the bank setting, but without modifying the changed by outputting an open signal or close signal to the valve on the basis of the temperature setting or valve of the PID.
- Page 12 ■Ordering Information (Model Configurations) TTM 20 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ① Model 48×48 96×48 72×72 96×96 ② Case color Black Gray (Only selected with 204) ③ Output 1 Ｊ Voltage 0 to 5VDC Relay point of contact Ｆ...
