Blaze King BOXER 24 Operation & Installation Manual

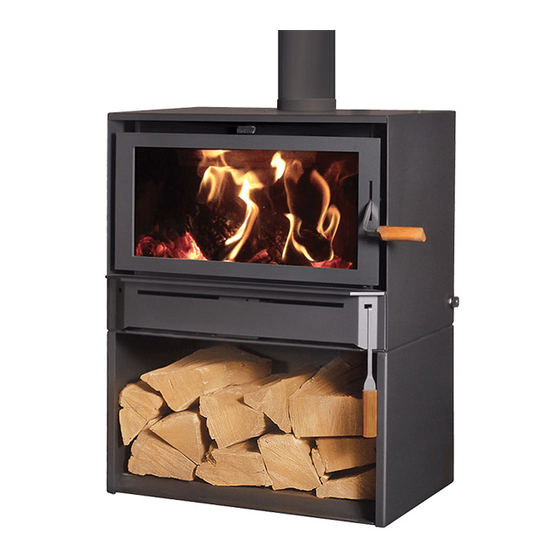

Solid fuel wood catalytic stove
Hide thumbs Also See for BOXER 24:
Table of Contents

Advertisement

Quick Links

BOXER 24
(BX24.1)
SOLID FUEL WOOD CATALYTIC STOVE: BX24.1
BX24.1 Firebox with Leg Base Kit
BX24.1 Firebox with Pedestal Kit
Date Installed:_____________
Serial No.: _____________
U.S. Environmental Protection Agency certified to comply with 2020 particulate emission standards using crib wood.
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please SAVE THESE INSTRUCTIONS for future reference.
Report # F19-534
The authority having jurisdiction (such a municipal building department, fire department, etc.) should
be consulted before installation to determine the need to obtain a permit.
OPERATION & INSTALLATION MANUAL
Manufactured By
Valley Comfort Systems Inc., 1290 Commercial Way, Penticton, BC, V2A 3H5, Canada
Phone: 250-493-7444 w Fax: 250-493-5833 w www.blazeking.com w info@blazeking.com
Pour la version française de nos manuels S.V.P. vous référez à notre site web: www.blazeking.com
180-BX24.1 v1.00
May 27, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOXER 24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blaze King BOXER 24

Summary of Contents for Blaze King BOXER 24

  • Page 1 BOXER 24 (BX24.1) SOLID FUEL WOOD CATALYTIC STOVE: BX24.1 BX24.1 Firebox with Leg Base Kit BX24.1 Firebox with Pedestal Kit Date Installed:_____________ Serial No.: _____________ U.S. Environmental Protection Agency certified to comply with 2020 particulate emission standards using crib wood.

  • Page 2: Table Of Contents

    BX24.1 TABLE OF CONTENTS Page 2 _____________________________________________________________ 4 INTRODUCTION _____________________________________________________________ 5 SPECIFICATIONS __________________________________________________________________ 5 EMISSIONS ______________________________________________________ 6 APPLIANCE DIMENSIONS ________________________________________________________ 8 CERTIFICATION LABEL ________________________________________________________ 9 SAFETY PRECAUTIONS _________________________________________________ 12 INSTALLATION INSTRUCTIONS .......................... 12 PARTS INCLUDED ........................12 FLOOR PROTECTION ......................13 MINIMUM CLEARANCES .........................
  • Page 3 BX24.1 TABLE OF CONTENTS Page 3 ................30 CATALYTIC COMBUSTOR, REPLACEMENT ______________________________________________________________ 33 MAINTENANCE ....................33 RUN-AWAY OR CHIMNEY FIRE ..........................34 ASH REMOVAL ..................35 LOADING DOOR GASKET INSPECTION ................. 35 LOADING DOOR GASKET REPLACEMENT ............. 36 BYPASS DOOR GASKET RETAINER REPLACEMENT #Z2022 ...................

  • Page 4: Introduction

    BX24.1 INTRODUCTION Page 4 • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS PROHIBITED BY FEDERAL AND STATE LAWS. Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating •...

  • Page 5: Specifications

    Low Burn 0.05 0.31 This manual describes the installation and operation of the Med-low Burn 0.18 0.33 Boxer 24.1 (BX24.1) catalytic equipped wood heater. Med-high Burn 0.12 1.48 This heater is certified to comply with the 2020 U.S. High Burn 0.08 1.93...
  • Page 6 BX24.1 APPLIANCE DIMENSIONS Page 6 BX24.1 Firebox with Pedestal (S.Z2126) 4 " 8 " 16 " 16 " 16 " 2 " 2 " 16 " 8 " 8 " 16 " 180-BX24.1 v1.00 May 27, 2020...

  • Page 7: Appliance Dimensions

    BX24.1 APPLIANCE DIMENSIONS Page 7 BX24.1 Firebox with Leg Base (S.Z2133) " 8 " 16 " 16 " 16 " 16 " 30" 8 " 16 " 180-BX24.1 v1.00 May 27, 2020...

  • Page 8: Certification Label

    CERTIFIED IN BOTH UNITED STATES AND CANADA / CERTIFIÉ POUR LES ÉTATS-UNIS ET LE CANADA PREVENT HOUSE FIRES - Install and use only in accordance with Blaze King’s installation and operation instructions. Contact local building or fire officials about restrictions and installation inspection in your area. The flue size is 6".

  • Page 9: Safety Precautions

    SAFETY PRECAUTIONS Page 9 IF THIS BLAZE KING APPLIANCE IS NOT PROPERLY INSTALLED OR OPERATED, A HOUSE FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
  • Page 10 BX24.1 SAFETY PRECAUTIONS Page 10 Never try to repair or replace any part of this appliance Do not place clothing or other unless instructions are given flammable items on or near in this manual. All other work this appliance. must be done by a trained technician.
  • Page 11 BX24.1 SAFETY PRECAUTIONS Page 11 This appliance is designed and approved for burning cord wood only. DO NOT burn trash, garbage; artificial or paper logs; gift wrappings; coal; lighter fluids; chemical cleaners; chemical starters; treated or painted wood; salt water driftwood or foil-backed paper such as gum wrappers or cigarette packages;...

  • Page 12: Installation Instructions

    CATCH FIRE. OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48”(1219 MM) FROM THE FRONT OF THE APPLIANCE. Blaze King grants no warranty, implied or stated, for the installation or maintenance of the appliance and assumes no responsibility of any consequential damage(s).

  • Page 13: Minimum Clearances

    BX24.1 INSTALLATION INSTRUCTIONS Page 13 MINIMUM CLEARANCES Residential Installations 10” 10” 25.125” 15.125”* 2.75” 16.375”* 49” Roof exit, parallel and corner. 254 mm 254 mm 639 mm 385 mm 70 mm 416mm 1245 mm 10” 14” 25.125” 19.125”* 2.75” 16.375”* 49”* Wall exit, parallel and corner.

  • Page 14: Combustion Air

    Poor draft can also lead to poor heat production and the inability for the combustor to remain active in lower burn rate settings. High efficiency appliances, such as your Blaze King stove, may require some fine tuning of your chimney system in order to maximize performance.

  • Page 15: Venting Systems

    BX24.1 INSTALLATION INSTRUCTIONS Page 15 VENTING SYSTEMS The venting system consists of a chimney connector and a chimney. These get extremely hot during use. Temperatures inside the chimney may exceed 2000 degrees in the event of a creosote fire. To protect against the possibility of a house fire, the chimney connector and chimney must be properly installed and maintained.
  • Page 16 BX24.1 INSTALLATION INSTRUCTIONS Page 16 CONNECTION TO A METAL PREFABRICATED CHIMNEY Refer to “RECOMMENDED FLUE HEIGHTS” chart for minimum flue height recommendations and ULC629 in Canada or UL-103HT in the USA for installation codes. When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed precisely.
  • Page 17 1” clear of the wall. ***Blaze King recommends the use of a Stainless steel liner, preferably insulated, inside a masonry chimney. This is to maintain proper draft and overall better operation of the unit.

  • Page 18: Recommended Flue Heights

    BX24.1 INSTALLATION INSTRUCTIONS Page 18 RECOMMENDED FLUE HEIGHTS 1. At sea level the minimum height is a 15 ft (4.6 m) straight run. 2. Add the following vertical height to the flue to compensate for: 45° elbow = 1.0 ft (.30 m) 90°...

  • Page 19: Kit Installation

    BX24.1 INSTALLATION INSTRUCTIONS Page 19 BX24.1 PEDESTAL KITS (both S.Z2126 & S.Z2133) NOTE: EITHER S.Z2126 PEDESTAL KIT OR S.Z2133 LEG BASE KIT MUST BE INSTALLED BEFORE STOVE CAN BE DUCTED AND READY FOR USE. TOOLS NEEDED FOR INSTALLATION: 7/16” wrench or socket wrench INSTALLATION 1.

  • Page 20: Operating Instructions

    Consequential damage from this type of operation will deem the warranty null and void. All Blaze King wood appliances are designed to burn cord wood only. Dimensional timber off cuts, very low moisture content small diameter wood and pressed wood logs, when used in excess, may result in excessive internal firebox temperatures that can cause causing irreversible damage to the firebox’s internal structure.

  • Page 21: Bypass

    “CATALYTIC THERMOMETER” under “MAINTENANCE”. ELECTRICAL CONNECTION Your Blaze King fan kit (OPTIONAL) is equipped with a three-prong (grounded) plug to decrease shock hazard. THIS PLUG SHOULD BE INSERTED DIRECTLY INTO A PROPERLY-GROUNDED, THREE-HOLE RECEPTACLE. DO NOT CUT OR REMOVE THE GROUNDING PRONG FROM THIS PLUG. Do not route the power cord in front or under the stove.

  • Page 22: Selecting Wood

    BX24.1 OPERATING INSTRUCTIONS Page 22 SELECTING WOOD THIS APPLIANCE IS DESIGNED TO BURN NATURAL WOOD ONLY. DO NOT BURN TREATED • WOOD, COAL, CHARCOAL, COLORED PAPER, CARDBOARD, SOLVENTS OR GARBAGE. • HIGHER EFFICIENCIES AND LOWER EMISSIONS WILL GENERALLY RESULT WHEN BURNING AIR DRIED SEASONED WOODS, AS COMPARED TO WET, GREEN OR FRESHLY CUT WOODS.

  • Page 23: How To Use Moisture Meters

    The more seasoned (dry) the wood, the higher the efficiency (less energy wasted on eliminating moisture during combustion). Operating your Blaze King at lower settings will result in higher efficiencies as the fuel will undergo a more complete combustion. For maximum efficiency, the appliance should be installed in a location that provides adequate intake/combustion air as well as a location that will allow for the straightest run of optimal chimney length to establish necessary draft .

  • Page 24: Lighting The Fire

    Don’t be afraid to fill it completely if necessary. With the Blaze King automatic thermostat, the wood will only burn at the rate set on the thermostat.

  • Page 25: Reloading Procedure (With The Catalyst Temperature In The Active Red Zone)

    BX24.1 OPERATING INSTRUCTIONS Page 25 DO NOT USE THE APPLIANCE WITHOUT A COMBUSTOR RELOADING PROCEDURE (with the catalyst temperature in the active red zone) DO NOT RELOAD IF THE CATALYTIC THERMOMETER NEEDLE IS HIGHER THAN THE POSITION SHOWN HERE 1. Have your next load of wood ready before beginning. Turn the thermostat to HIGH and turn the fan off.

  • Page 26: Optimal Thermostat Setting

    BX24.1 OPERATING INSTRUCTIONS Page 26 OPTIMAL THERMOSTAT SETTING Any thermostat position between LOW and HIGH will produce the desired clean burning characteristics. However, since each application can vary, you may find it necessary to operate the thermostat to suit your application.

  • Page 27: Catalyst Monitoring

    It is also possible that the thermometer, itself, may not be reading accurately. Before condemning the combustor, read “THERMOMETER”. If, after cleaning has been performed, your combustor is still not working you can Contact Blaze King for a replacement combustor. Please read “REPLACEMENT PARTS” section in this owners’ manual.

  • Page 28: Catalytic Combustor, Troubleshooting

    Solution: Burn quality woods available in your area. If you decide the catalyst has been deactivated, replace combustor with a genuine Blaze King combustor (failure to do so will void your warranty). Severe Peeling 180-BX24.1 v1.00...
  • Page 29 BX24.1 CATALYST MONITORING Page 29 PROBLEM - CATALYST MASKING (The catalyst is coated with a layer of fly-ash or soot which prevents catalytic activity) Possible Cause: Accumulation of fly-ash Solution: Brush cooled combustor with a soft-bristled brush or vacuum lightly at least once per burning season. PROBLEM - THERMAL CRACKING Possible Cause: Normal operation, as long as the combustor remains intact.

  • Page 30: Catalytic Combustor, Replacement

    “CATALYST MONITORING”. If the combustor needs replacing then discontinue use of the appliance until the combustor is replaced. If the combustor must be examined or replaced contact your Blaze King dealer. 1. The removal of a Blaze King Catalytic combustor requires a small flat blade screwdriver or pocket knife.
  • Page 31 BX24.1 CATALYST MONITORING Page 31 4. Now that the combustor has been removed you’ll be able to see one stainless bypass retainer on each side. These can remain in place and do not need to be removed. These clips are not fixed in position and can fall into the firebox.
  • Page 32 The combustor supplied with this heater is a 115-0335 metal combustor. Consult the catalytic combustor warranty also supplied with this wood heater. Warranty claims should be addressed to: in Canada in USA Blaze King Industries / Valley Comfort Systems Blaze King Industries Warranty Department, 1290 Commercial Way Warranty Department, 146 A Street...

  • Page 33: Maintenance

    BX24.1 MAINTENANCE Page 33 RUN-AWAY OR CHIMNEY FIRE A CHIMNEY FIRE CAN PERMANENTLY DAMAGE YOUR CHIMNEY SYSTEM. THIS DAMAGE CAN ONLY BE REPAIRED BY REPLACING THE DAMAGED COMPONENT PARTS. CHIMNEY FIRE DAMAGE IS NOT COVERED BY THE LIMITED WARRANTY. CAUSES: 1.

  • Page 34: Ash Removal

    MAINTENANCE BX24.1 Page 34 CHIMNEY MAINTENANCE The most efficient method to sweep the chimney is using a hard brush. Brush downwards so soot and creosote residues will come off the inner surface and fall to the bottom of the chimney where they can be removed easily.

  • Page 35: Loading Door Gasket Inspection

    BLAZE KING RECOMMENDS YOUR DEALER PERFORM THIS TASK 1. If the door gasket is to be replaced, be sure you have Blaze King 7/8” fiber glass gasket ready to re-install, as well as high temperature adhesive. See your Blaze King dealer.

  • Page 36: Bypass Door Gasket Retainer Replacement #Z2022

    MAINTENANCE BX24.1 Page 36 BYPASS DOOR GASKET RETAINER REPLACEMENT #Z2022 1. Remove flame shield. (see CATALYTIC COMBUSTOR REPLACEMENT step 1) 2. Remove the combustor. (see CATALYTIC COMBUSTOR REPLACEMENT step 2-4) 3. Remove hanging smoke baffle. 4. Open bypass door (slide it all the way forward) and unthread/remove the 1/4-20 bolts and washers that fastens the bypass door to the bypass rod bracket.
  • Page 37 MAINTENANCE BX24.1 Page 37 5. Remove the two 1/4-20 bolts and washers that hold the dome guard in place, be sure to support the dome guard during this process is it will come loose. Once the dome guard is removed, unthread the two 1/4-20 coupling nuts that spaced the dome guard from the dome bottom.

  • Page 38: Door Glass Gasket Inspection

    DOOR GLASS GASKET REPLACEMENT BLAZE KING RECOMMENDS YOUR DEALER PERFORM THIS TASK 1. You will require Blaze King glass gasket and Blaze King door gasket. Please see your Blaze King dealer. 2. Remove the old glass gasket. 3. Starting at the corner opposite of the “Blaze King”...

  • Page 39: Loading Door Tension Adjustment

    MAINTENANCE BX24.1 Page 39 NOTE: YOUR DOOR WAS SET AT THE FACTORY, DO NOT ADJUST UNLESS NECESSARY LOADING DOOR TENSION ADJUSTMENT 1. Open the door. 2. To tighten the door tension use a 7/16” wrench to loosen the two nuts on the latch cover.

  • Page 40: Optional Fan Assembly

    “Inactive” zone, then retighten the bolt. NOTE: IF YOUR BLAZE KING IS EQUIPPED WITH FANS, TURN OFF FANS AND WAIT 10 MINUTES PRIOR TO READING CATALYTIC THERMOMETER INDICATOR. AIR MOVEMENT ACROSS THE TOP OF THE STOVE MAY PROVIDE FALSE READING.
  • Page 41 Page 41 Your Blaze King is designed to allow a wide selection of heat output levels. If you begin to lose control of the amount of heat the stove is emitting, determine the cause early so that major problems may be avoided.
  • Page 42 INSPECTION” Excessive draft in the chimney. Measure draft with a Manometer. See “DRAFTS”. Consult your Blaze King dealer or a chimney sweep. Install a cap. Thermostat not operating properly. Consult your Blaze King dealer. Wood is too small.
  • Page 43 Consult your blaze King Dealer. By-pass door leaking or not closing completely. Inspect and clean area around by-pass doors. Adjust or replace gasket if necessary. Consult your Blaze King Dealer. PROBLEM: Spots of creosote accumulation in chimney or chimney connector. CAUSE SOLUTION Air leaks in chimney or chimney connector.

  • Page 44: Replacement Parts

    BX24.1 REPLACEMENT PARTS Page 44 Item # Part # Description 2049 SMOKE BAFFLE S.CAT2425 COMBUSTOR 2030 FLAME SHELD GRATE 220.0102 BLACK KNOB 1.50 X 75H (Therm) Z2060 BYPASS ROD ASSEMBLY Z2019 25 BYPASS DOOR ASM Z2022 25 BYPASS GASKET RETAINER ASSEMBLY 2050 DOME GUARD Z3030...
  • Page 45 BX24.1 REPLACEMENT PARTS Page 45 REFRACTORY BRICK LAYOUT ITEM PART QTY. NUMBER A Size Brick AA Size Brick KT Size Brick PP Size Brick SI Size Brick 180-BX24.1 v1.00 May 27, 2020...
  • Page 46 BX24.1 REPLACEMENT PARTS Page 46 FAN KIT REPLACEMENT PARTS ITEM PART NUMBER DESCRIPTION QTY. 145.0136 RHEOSTAT WITH OFF [O/H/LOW] 150.0710.L FAN CROSSFLW 120x47MM LEFT 150.0710.R FAN CROSSFLOW 120x47MM RIGHT 220.0137 RHEOSTAT KNOB BLACK SLVR LINE 180-BX24.1 v1.00 May 27, 2020...

  • Page 47: Warranty

    Page 47 BLAZE KING WOOD LIMITED WARRANTY Blaze King and Valley Comfort’s respective brands extend the following warranty for wood fired appliances purchased from an authorized Blaze King / Valley Comfort dealer and installed in the United States of America or Canada. Warranty starts with date of purchase by the original owner (End User) except as noted for replacement parts.
  • Page 48 Blaze King is the manufacturer of the Blaze King line of heating products. At Blaze King, our commitment to the highest level of quality and customer service is the most important thing we do. Each Blaze King stove is built on a tradition of using only the finest materials and is backed by our limited warranty to the original purchaser.
  • Page 49 Blaze King The use of such products may nullify the Limited Warranty on this stove. If unsure as to the extent of this Limited Warranty, contact your authorized Blaze King dealer before installation.
  • Page 50 20%. 3rd year ----purchaser pays 40%. 4th year -----purchaser pays 60%. 5th year---- purchaser pays 80%. If a defect or problem is determined by Blaze King to be non warrantable, Blaze King is not liable for travel costs for service work. In the event of in-home repair work, the customer will pay any in-home travel fees or service charges required by the Authorized Dealer.

  • Page 51: Installer Notes

    BX24.1 INSTALLER NOTES Page 51 Installer: Please complete the following information Dealer Name & Address:________________________________________________________ ____________________________________________________________________________ Installer (print): _______________________________________________________________ Installer (sign): _______________________________________________________________ Phone #: ____________________________________________________________________ Date Installed:________________________________________________________________ Serial No.: ___________________________________________________________________ 180-BX24.1 v1.00 May 27, 2020...
